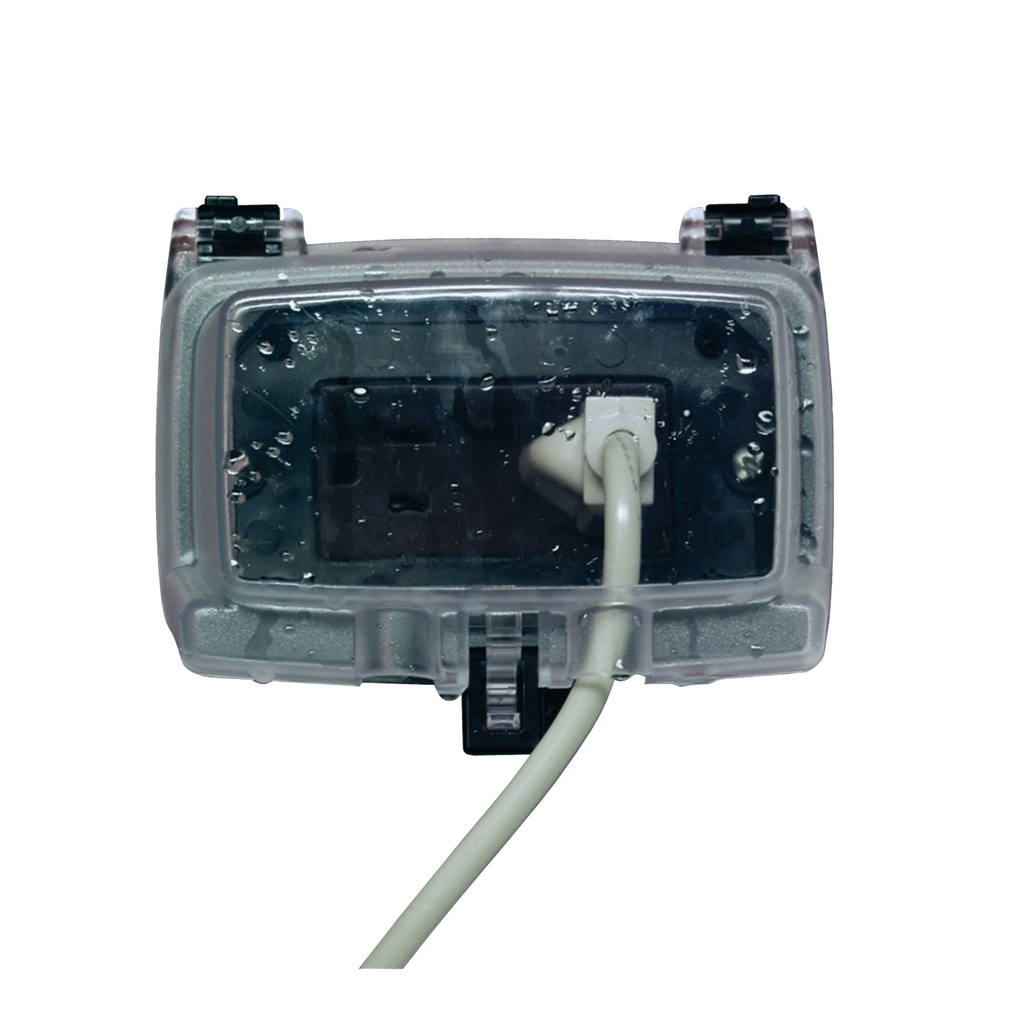

Product image for Intermatic WP1010HC 1Gang Horizontal Weatherproof In-Use Cover, 3-1/8" Deep - Clear
Image thumbnail 0
Image thumbnail 1
Email

Intermatic WP1010HC 1Gang Horizontal Weatherproof In-Use Cover, 3-1/8" Deep - Clear

Manufacturer: Intermatic | Catalog # WP1010HC | North Coast Part # 226177
$23.92/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Receptacle Protection
Cable Size
(2) 14 Gauge, (1) 12 Gauge
Gang Type
Single
Insulation Material
Neoprene Gasket
Material
Polycarbonate
Mounting Type
Horizontal
Number of Outlets
1
Size
3-1/8 DEPTH IN, 79.37 DEPTH MM
Type
Weatherproof Receptacle Cover

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275028098
Color
Clear
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
GTiN
00078275028098
Product UPC
07827502809
Shape
Rectangle

Dimensions

Depth
3-1/8 Inch
Height
4-1/4 Inch
Warranty Length
1 yr
Width
5 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Warranty: 1-year limited
  • NA
