3M 7010350253 3M™ Thin-Wall Heat Sh

Manufacturer: 3M | Catalog # 7010350253 | North Coast Part # 226253
$45.78/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

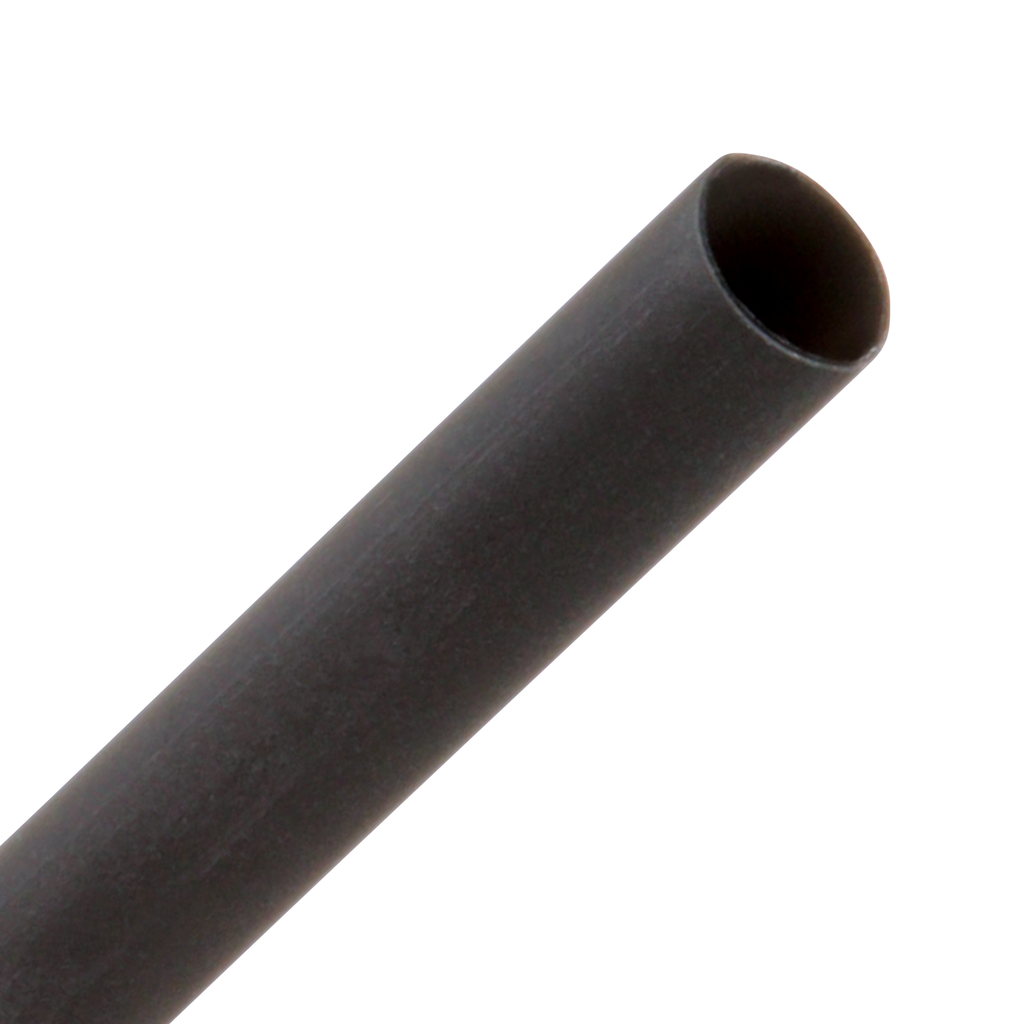

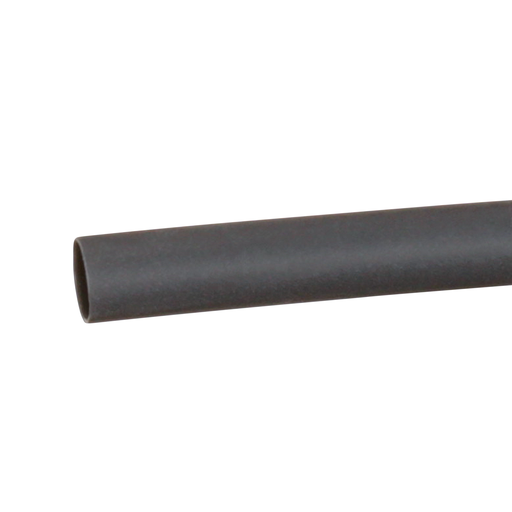

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Technical Information

Material
Polyolefin
Max Operating Temperature
110.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
UL
Type
Flexible

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128600641
Color
Black
GTiN
00051128600641
Product UPC
05112860064

Dimensions

Length
6 Inch
Outside Diameter
0.25 in
Overall Length
6.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • SHRINK RATIO: Offers a 3:1 shrink ratio; when freely recovered, the tubing will shrink 33% of its as-supplied diameter
  • DUAL-WALL DESIGN: A durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
  • A VERSATILE OPTION: Flame-retardant, water-resistant, and rated for 600 V applications
  • OPERATING RANGE: This tubing functions in a temperature range of -55110 C (-67230 F), with a shrinking temperature minimum of 121 C (250 F)
  • IDEAL FOR A VARIETY OF APPLICATIONS: Offers protection for automotive, truck, electronic components, wire splices, wire bundles, and harness breakouts
  • CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
