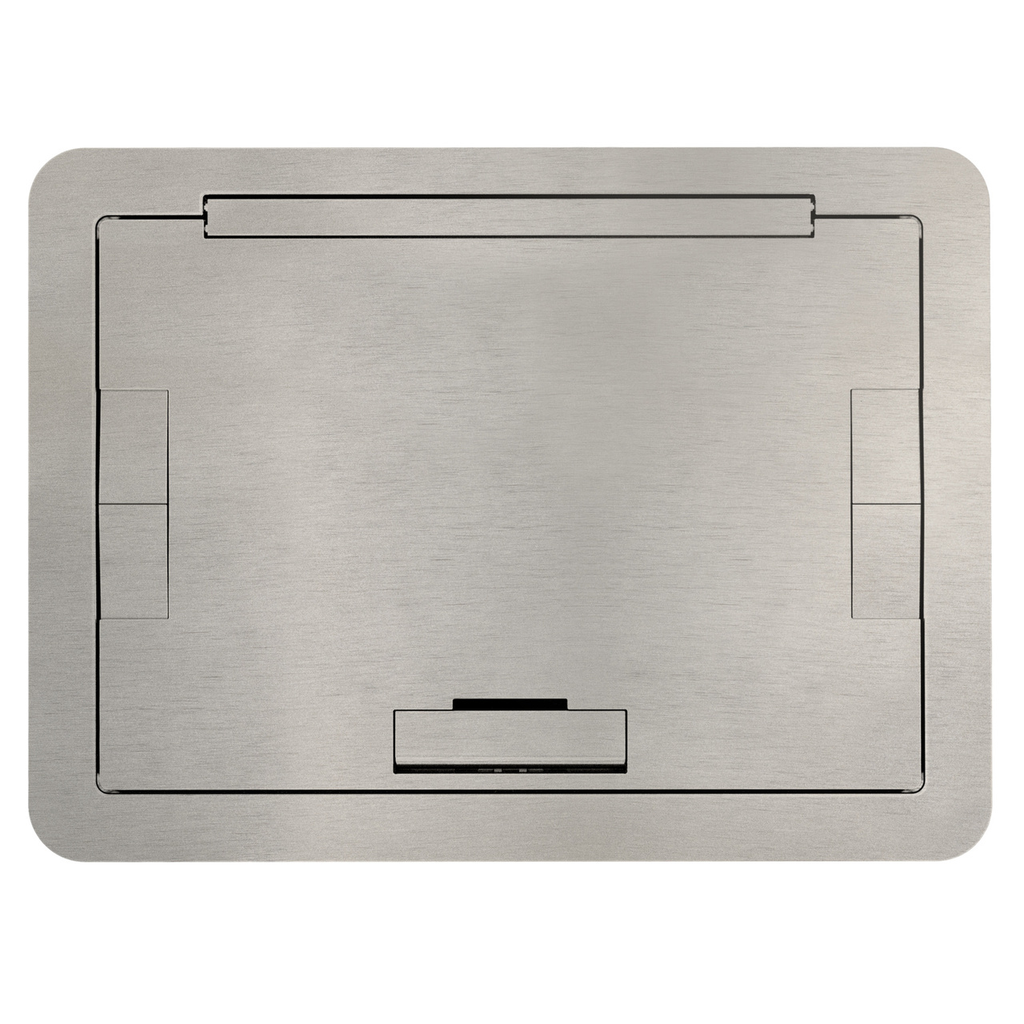

Product image for WLK EFB6810BTSN EVO FLR BX FLUSH CV
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

WLK EFB6810BTSN EVO FLR BX FLUSH CV

Manufacturer: Wiremold | Catalog # EFB6810BTSN | North Coast Part # 2263889
$1,021.79/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
1 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Low profile cover designed to attach to the Evolution Series 6, 8, and 10-gang floor boxes (EFB6, EFB8, and EFB10). Each cover is made of die-cast aluminum and is equipped with a durable hinge which allows the cover to rotate open 180. and two (2) slide egress doors that lock in the open position and automatically close around the cables when the cover is closed. The cover assemblies are designed to work with finished floors such as carpet tile and wood. In order to make the cover assembly flush with the polished concrete or terrazzo floor, the EFB45-CTR (concrete/terrazzo) ring must be used (ring sold separately). The cover assemblies are available in three (3) powder coat finishes: black (BK) gray (GY)and bronze (BZ) and three (3) durable finishes  satin brass (SB) satin nickel (SN) and brushed aluminum (AA)

Technical Information

Applications
Commercial
Indoor Outdoor
Indoor
Material
Aluminum
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564106241
Color
Nickel
Finish
Nickel,Satin
GTiN
00786564106241
Product UPC
78656410624

Dimensions

Width
12.5 in

Certifications and Compliance

Country of Origin
India
Features
  • Die cast aluminum cover assemblies.
  • Floor Box Covers have been designed to work on multiple floor surfaces and are manufactured from die cast aluminum to provide strength and style
  • Decorative powder coat colors (black gray) and durable finishes (brushed aluminum, satin brass, satin nickel) will complement any room dcor
  • Hinge design enables covers to open a full 180° and lie flat on the floor surface with the durability to support a large cover. Provides easy access to all interior modules and activations while reducing tripping hazards.
  • Auto-close egress doors. Cable egress doors lock in position when open and automatically closes around wires to protect cabling and reduce trip hazards.
Certifications
  • RoHS Compliant
  • cULus Listed
