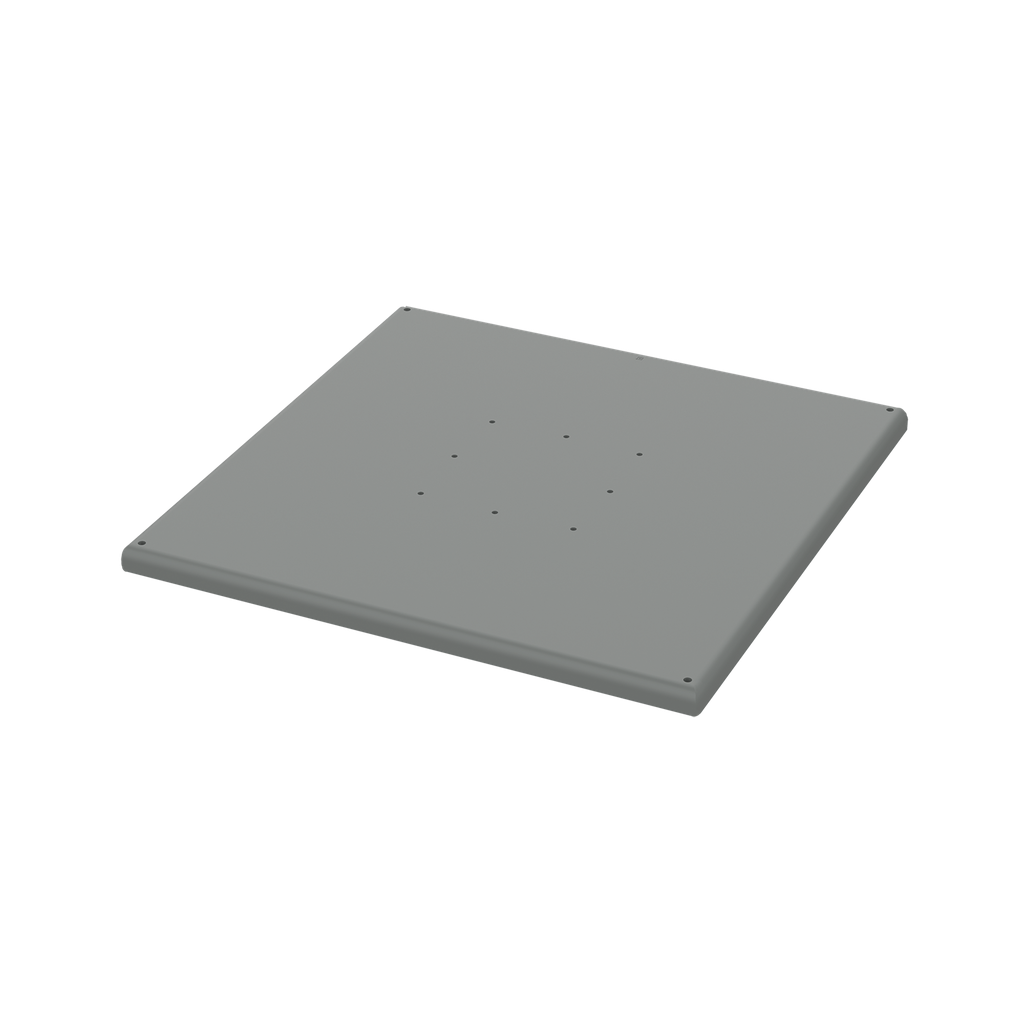

Hoffman A24SBASE Pedestals, 24" x 24", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A24SBASE | North Coast Part # 226478
$782.03/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Friday 5:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Pedestal system enables many types of enclosures and consolets to be floor mounted for optimal viewing and operating height. Various columns and bases are available to customize and configure the desired ergonomic needs. Bases and columns must be ordered separately.

Technical Information

Applications
Controls and Drives
Color Coding
ANSI 61
Material
Steel
Size
24.00x24.00 in
Type
Pedestals

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510573102
Color
Gray
Finish
Powder Coated
GTiN
00783510573102
Product UPC
78351057310
Weight
35.9 lb

Dimensions

Depth
24 Inch
Height
1.12 Inch
Length
24.7 Inch
Thickness
1.9 mm
Width
24 in
Features
  • Columns can be mounted on either base, through the vertical column or directly to the enclosure
  • A cutout must be made in the enclosure if the wires are to come through the column
  • Columns have flanges at each end and a gasketed access plate
  • Screws, oil-resistant gaskets and box connector fitting are furnished with the column for joining an enclosure to the top
  • Bases have leveling screws and holes for bolting to the floor
