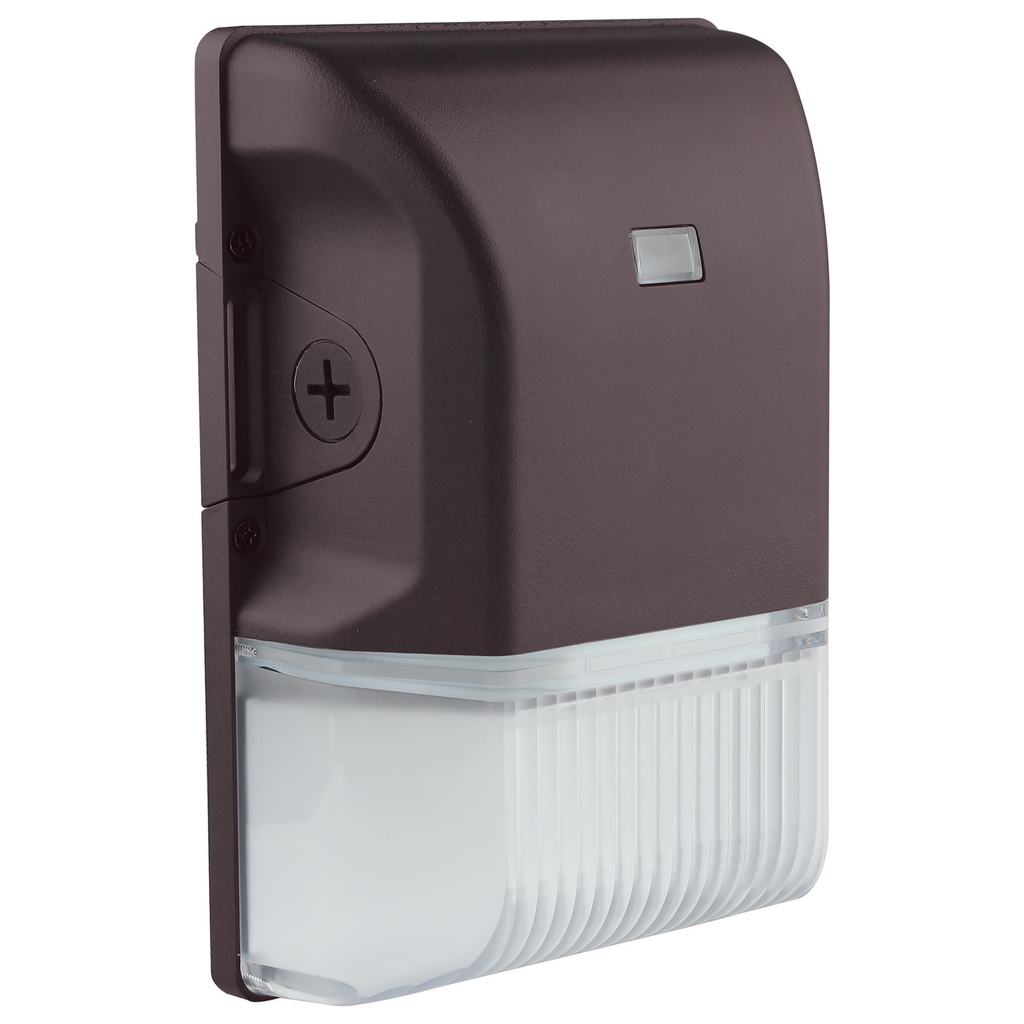

Product image for SATCO 65/748 LED SMALL WALL PACK W/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

SATCO 65/748 LED SMALL WALL PACK W/

Manufacturer: Satco | Catalog # 65/748 | North Coast Part # 2271322
$89.96/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet

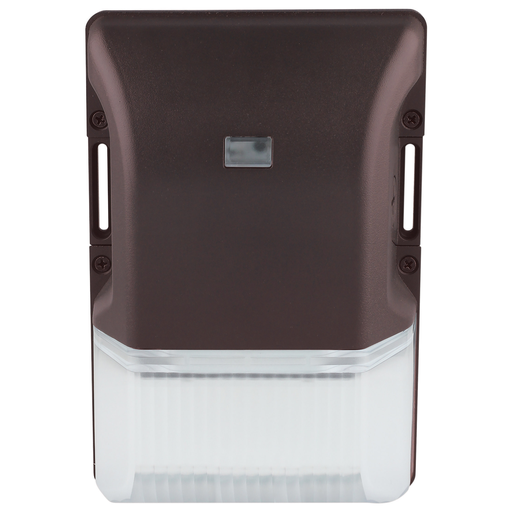

SATCO NUVO's 65-748 20W LED Small Wall Pack is now CCT Selectable. Available in a bronze finish and featuring lighting choices from warm, cool, and natural light, this fixture is perfect for all of your lighting needs. This premium Wall Pack has a built in photocell sensor, a 100 degree beam spread, and is IP65 wet location rated making it the ideal addition to commercial buildings for exterior illumination.

Technical Information

Applications
Security Lighting
Average Rated Life
50000 hr
Beam Spread
100
Color Temperature
Cool White,Warm White
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
100 W
Indoor Outdoor
Outdoor
IP Rating
IP65
Lamp Type
LED
Lens Material
Polycarbonate
Lumens
2,608.9 Lumen
Material
Aluminum
Number of Lamps
1
Operating Temperature
-20 degrees C
Power Factor
0.99
Style
Utility
Technology Type
LED
Type
Wall Pack
Voltage
120 Volt
Wattage
20 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Nuvo Lighting
Sub Brand
Nuvo

General Product Info

12-Digit UPC
045923657481
Environmental Conditions
Wet Location
Finish
Bronze
Fixture Type
Rectangle
GTiN
00045923657481
Product UPC
04592365748
Weight
1.98 lb

Dimensions

Height
8.59 Inch
Warranty Length
5 yr
Width
5.81 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
Vietnam
Features
  • CCT Selectable
  • 0-10V Dimmable
  • Maintenance free - no bulb to change
  • Die-cast aluminum body
  • IP65, Wet rated for outdoor use
  • UV Stabilized Powder Coated Finish
Prop 65
  • Lead
Accessory Products
  • ADPD4FBL3P2W4
  • DF10P
  • DS710-10Z
  • DVSCSTV
  • DVSTV
  • IP710-LFZ
  • MS-Z101
  • MS-Z101-V
  • NTSTV-DV
  • SF10P
Replaced By Products
  • 65-267
  • 65-268
