Ocal T17-G 1/2" PVC-Coated Ocal-Blue® T-Style Conduit Body, Form-7 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # T17-G | North Coast Part # 227398
$227.37/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
PVC Coated Conduit Body, T Shape, Form 7, Size 1/2 Inch/16 Metric, Iron, Dark Gray

Technical Information

Applications
Act as Pull Outlets for Conductors Being Installed
Hub Size
1/2
Material
Iron
Size
1/2 in
Standard
CSA,UL E2969
TC Connection
Threaded
Trade Size
1/2 Inch
Type
General Purpose

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508409876
Color
Gray
Finish
PVC Double-Coated/Dark Gray
GTiN
00704508409876
Product UPC
70450840987

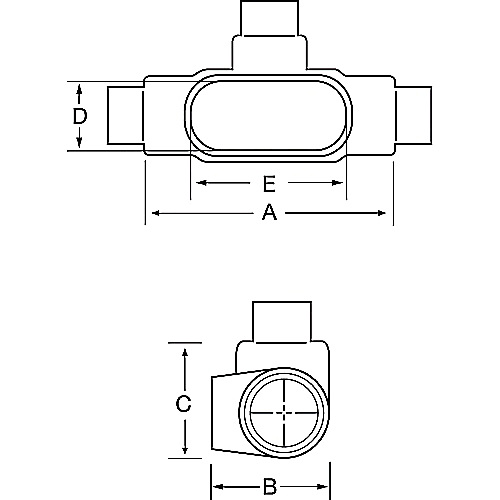

Dimensions

Height
2.35 Inch
Length
5.6 Inch
Width
1.8 in
Application
  • Connect conduit sections
  • Provide openings for making splices and taps in conductors
  • Act as pull outlets for conductors being installed
  • Provide taps for branch conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • Make 90° bends in conduit runs
Notes
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
  • Dimensional values are of uncoated conduit bodies.
Features
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • A minimum of .040 in. PVC coating is bonded to the exterior.
Certifications
  • UL
  • CSA
