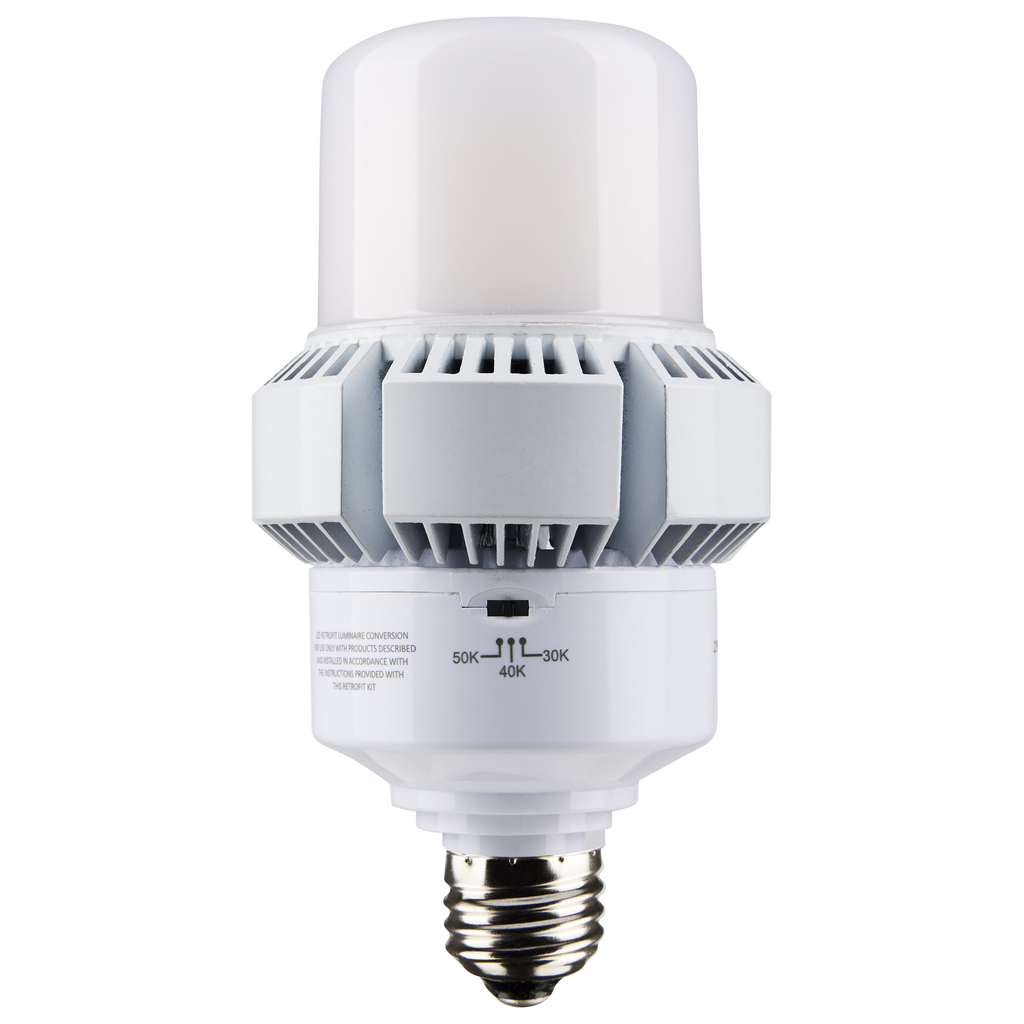

Product image for SATCO S13164 45W/AP32/LED/CCT/100-2
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

SATCO S13164 45W/AP32/LED/CCT/100-2

Manufacturer: Satco | Catalog # S13164 | North Coast Part # 2276065

$81.21/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy

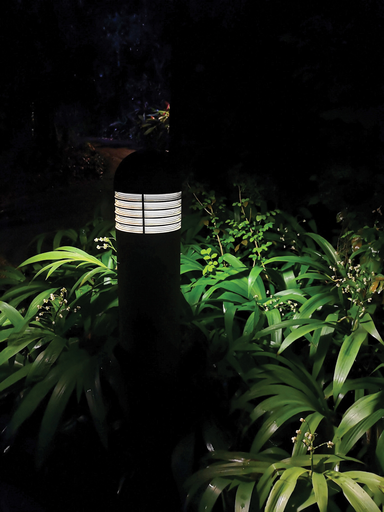

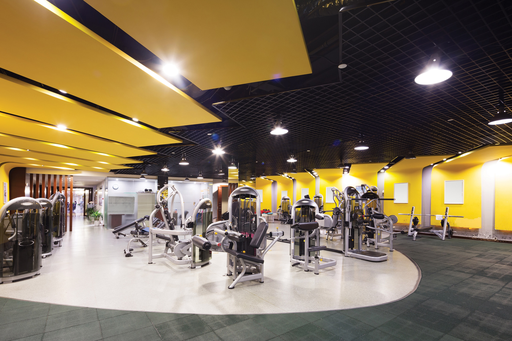

S13164, Satco's 45-watt medium base A-Plus 28 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT and PowerQuick wattage selectable technologies mean more versatility and custom-tailored light for specific applications. A high-output light with over 300 degrees of illumination, this lamp is perfect for commercial bollard fixtures, post-top lighting, and high ceiling applications, to name a few. A smaller jacket size, base up, down or horizontal use makes this our most versatile A-lamp at this time.

Technical Information

Amperage
0.220-0.079 Amp
Applications
For Indoor/Outdoor
Average Rated Life
50000 hr
Beam Angle
280
Beam Spread
280
Bulb Shape
AP32
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
300 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Color
Frost
Lens Material
Polycarbonate
Lumens
3,060 Lumen
Material
Polycarbonate
Operating Temperature
-22 degrees C
Power Factor
0.9
Technology Type
LED
Temperature Rating
-22 degrees C
Type
Type A
Voltage
100 Volt
Wattage
22 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
NUVO Lighting

General Product Info

12-Digit UPC
045923131646
Environmental Conditions
Damp Wet Location Rated
Finish
White
GTiN
00045923131646
Housing Color
White
Product UPC
04592313164
Weight
1.69 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Advanced heat sink design ensures long lifespan, less maintenance

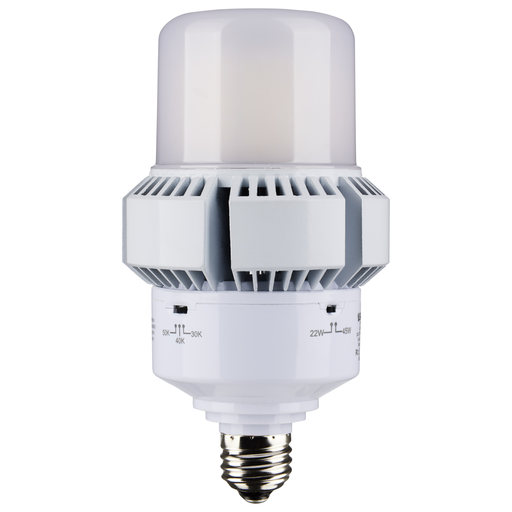

  • ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch
  • Damp location rated for indoor or outdoor use
  • Rated for totally enclosed fixtures
  • Reduced jacket size and built-in surge protection
  • FCC/RoHS compliant
  • Dimmable; 80 CRI light quality
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
