Lutron RRST-PRO-N-SW RA3 SUNNATA DIM S

Manufacturer: Lutron | Catalog # RRST-PRO-N-SW | North Coast Part # 2276901
*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

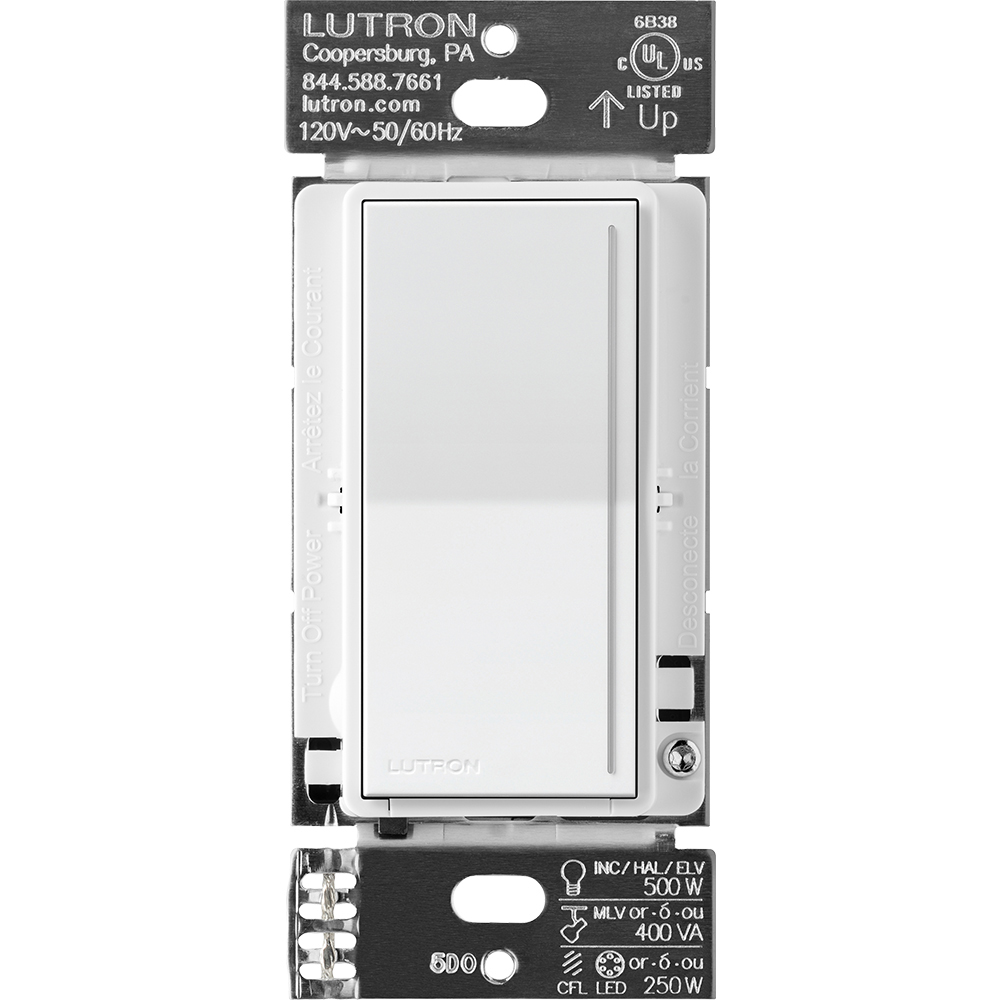

Lutron RadioRA 3 Sunnata RF PRO LED+ Touch Dimmer Switch, 250W - Snow White

Technical Information

Applications
For Lighting Control
Material
Metal
Operating Temperature
32 - 104 degrees F
Power Rating
250 W (LED/CFL), 500 W (Incandescent/Halogen/ELV), 400 VA (MLV)
Type
Phase Selectable
Voltage
120 VAC

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
RadioRA 3, Sunnata

General Product Info

12-Digit UPC
784276808538
Color
Snow
Environmental Conditions
0 - 90% Non-Condensing Humidity
Finish
Satin
GTiN
00784276808538
Product UPC
78427680853

Dimensions

Length
4.69 Inch
Width
2.94 in
Features
  • Maximum Rating: Works with dimmable bulbs or fixtures; 250W LED, 500W Incandescent / Halogen/ ELV, 400VA MLV
  • Lutron's new Clear Connect- Type X Radio Frequency; Must be located within 75 ft of a RadioRA 3 wireless processor and each Sunnata RF dimmer should have at least two other non-battery powered Clear Connect-Type X devices within 25 ft
  • RA 3 Sunnata RF PRO LED+ Touch Dimmer Switch has easy wiring screw terminals and requires a neutral wire; Companion Dimmer (RRST-RD-xx) has screw terminals, does not require a neutral
  • Use up to four Sunnata RF Companion Dimmers (RRST-RD-xx, sold separately) with one primary dimmer to control one light from up to five locations
  • MyLevel Personalization- Program phase control, high/low- end trims, preset light level, lightbar brightness, and off-state locator light fade-to off; Companion dimmers will match the settings of the primary dimmer switch
  • Single tap for your favorite preset light level, double tap for full brightness, or swipe the light bar for your desired light level; push and hold for 30 second delayed fade-to-off
  • Sunnata RF PRO LED+ Touch Dimmer Switches and coordinating wall plates are available in 20+ colors and offer the exact same look and feel as the companion dimmers (wall plate and companion dimmer switch sold separately)
  • RadioRa 3 Processor combines the functionality of the main repeater and Connect Bridge of RadioRA 2 (sold separately)
  • Works without Wifi; Local device operation will continue to function if internet connection is lost
  • 250 W (LED/CFL) or 500 W Incandescent/Halogen/ELV or 400 VA MLV Phase Selectable Neutral Dimmer
Standards and Certifications
  • CULUS
  • NOM
  • FCC
  • IC
  • cULus
  • IFT
