Thomas & Betts B14-8FL #8 Bolt Hole 18-14 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal

Manufacturer: Thomas & Betts | Catalog # B14-8FL | North Coast Part # 227832
$167.90/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Non-Insulated Locking Fork Terminal, Length .75 Inches, Width .29 Inches, Bolt Hole #8, Wire Range #18-#14 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#8
Temperature Rating
150 degrees C
Terminal Type
B
Type
Non-Insulated, Locking, Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806709
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363148470
Product UPC
78621080670

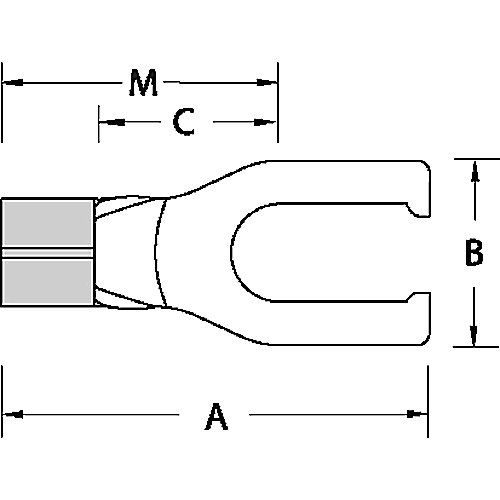

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.63 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
