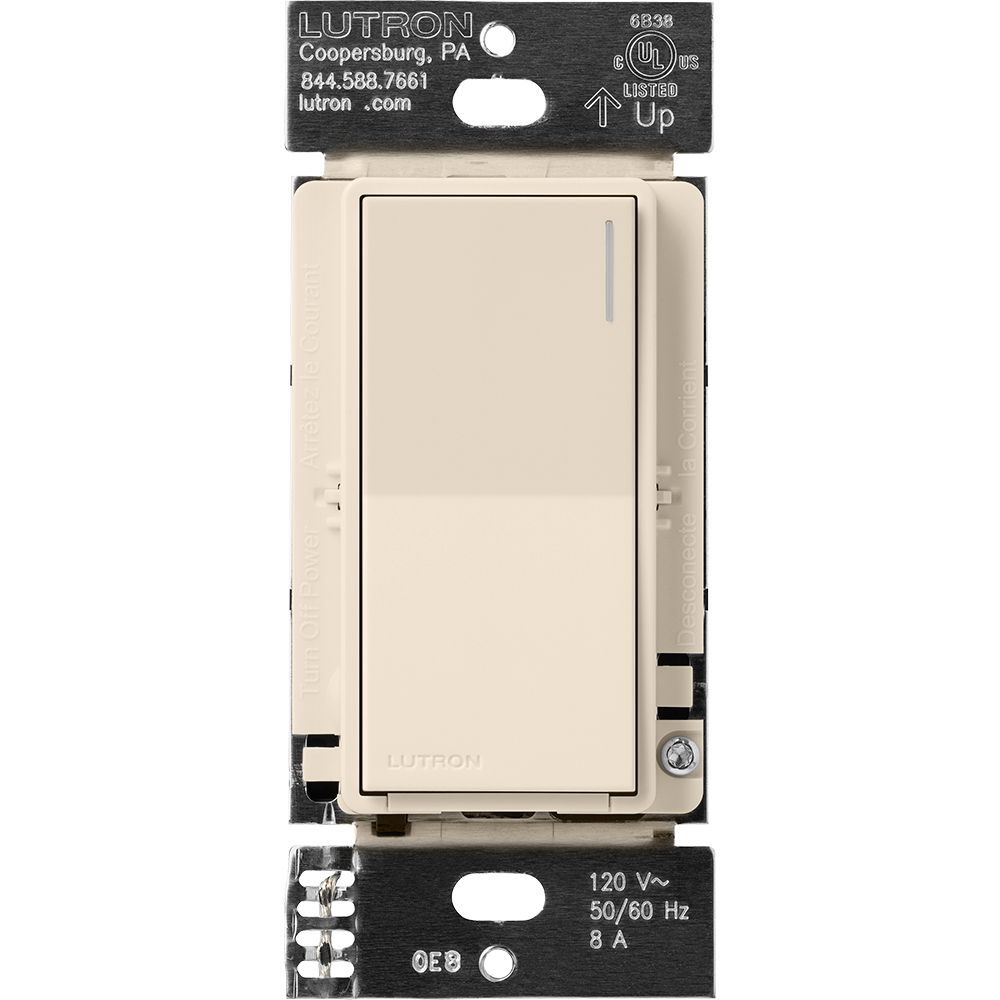

Product image for Lutron RRST-8ANS-LA RA3 SUNNATA SW LA
Image thumbnail 0
Image thumbnail 1
Email

Lutron RRST-8ANS-LA RA3 SUNNATA SW LA

Manufacturer: Lutron | Catalog # RRST-8ANS-LA | North Coast Part # 2285240
*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Wednesday 4:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Lutron RadioRA 3 Sunnata RF Neutral Switch, 8A - Light Almond

Technical Information

Amperage
8 Amp Light, 5.8 Amp Mo-r
Applications
Lighting
Material
Metal
Power Rating
0.5 W
Voltage
120 VAC

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
RadioRA 3, Sunnata

General Product Info

12-Digit UPC
784276808583
Color
Almond
Finish
Gloss
GTiN
00784276808583
Product UPC
78427680858

Dimensions

Length
4.69 Inch
Width
2.94 in
Standards and Certifications
  • CULUS
  • NOM
  • FCC
  • IC
  • cULus
  • IFT
Features
  • Maximum Rating: Works with 8A lighting and 5.5A, or 1/4HP, motor loads
  • Lutron's new Clear Connect- Type X Radio Frequency; Must be located within 75 ft of a RadioRA 3 wireless processor and each Sunnata RF Neutral Switch should have at least two other non-battery powered Clear Connect-Type X devices within 25 ft
  • RA 3 Sunnata RF Neutral Switch has easy wiring screw terminals and requires a neutral wire; Companion Switch (RRST-RS-xx) has screw terminals, does not require a neutral
  • Use up to four Sunnata RF Companion Switches (RRST-RS-xx, sold separately) with one primary switch to control one light from up to five locations
  • MyLevel Personalization-Program lightbar brightness and off-state locator light; Companion switches will match the settings of the primary switch
  • Tap the top of the switch for On, tap the bottom of the switch for Off; Push and hold the bottom for a 30 second delayed off
  • Sunnata RF Neutral Switches and coordinating wall plates are available in 20+ colors and offer the exact same look and feel as the companion switches (wall plate and companion switch sold separately)
  • RadioRa 3 Processor combines the functionality of the main repeater and Connect Bridge of RadioRA 2 (sold separately)
  • Works without Wifi; Local device operation will continue to function if internet connection is lost
  • 8 A Light, 1/4 HP 5.8 A Motor Neutral Wire Electronic Switch
