Raco 243 4" Square Box, Welded, 2-1/8" Deep with AC/MC/Flex Clamps, Three 1/2" KO's and One TKO, BOX-LOC, MS Bracket, Flush

Manufacturer: Hubbell / Raco | Catalog # 243 | North Coast Part # 2292092
$4,449.19/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet MDM Safety Data Sheet
4 in. Square Box, Welded, 2-1/8 in. Deep with AC/MC/Flex Clamps, Three 1/2 in. KO's and One TKO, BOX-LOC®, MS Bracket, Flush

Technical Information

Applications
Electrical
Cable Entry
Pryouts for MC/AC/Flex and knockouts conduit
Material
Steel
Number of Gangs
2 Gang
Size
4 IN
Type
4 IN square box

Manufacturer Information

Brand
RACO

General Product Info

12-Digit UPC
050169002438
Color
Gray
Construction
Welded
GTiN
00050169002438
Product UPC
05016900243
Shape
Square
Weight
1.068 lb

Dimensions

Depth
2-1/8 Inch
Height
4-5/8 Inch
Length
2.188 Inch
Width
5.5 in

Certifications and Compliance

CA Prop65 Warning
No
Country of Origin
USA
Features

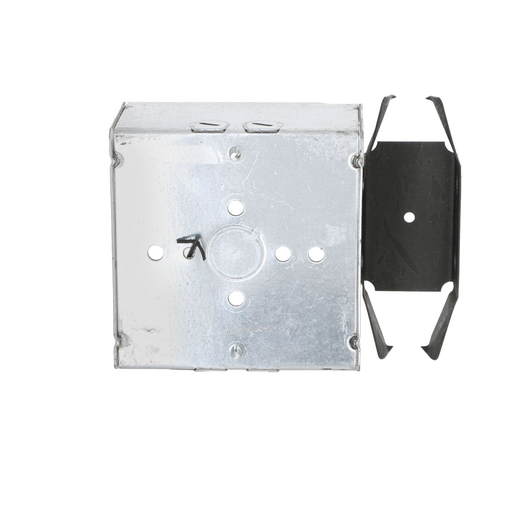

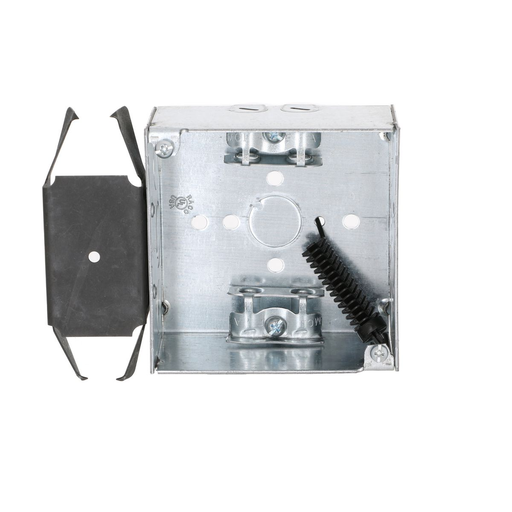

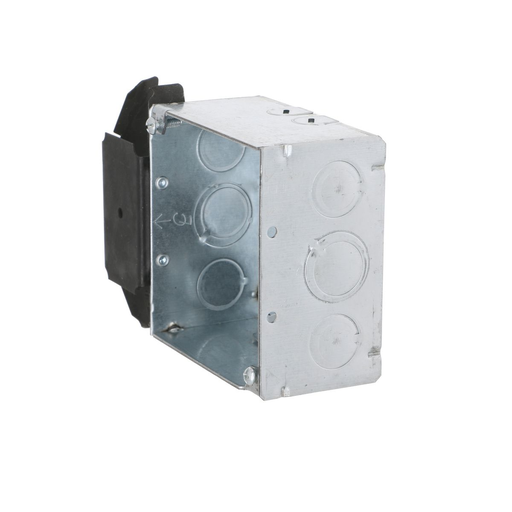

  • Welded steel construction with \"MS\" BOX-LOC® bracket which allows for positioning on either side of stud
  • 4 in. square x 2-1/8 in. deep
  • BOX-LOC® Bracket is a snap to install. Place the bracket on the open side of the stud first. Slots in the bracket engage the lip of the stud
  • BX clamps provided for steel and alum armored cable, MCI cable, MCI-A cable, and flexible conduit
  • TKO® Knockouts allow for design and installation flexibility
  • Supplied with three 1/2 in. and one 1/2-3/4 in. TKO® knockouts
  • Combination Phillips/slotted screw heads
  • 29.5 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls
Prop 65
  • No
