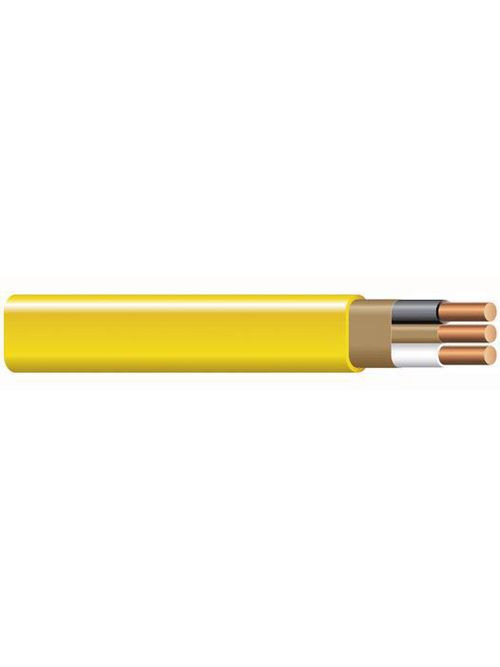

Image thumbnail 0
Image thumbnail 1

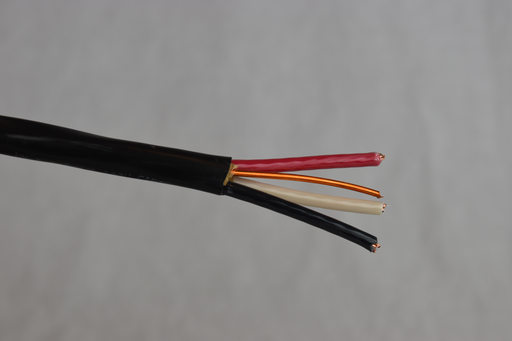

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Southwire 63968202 4 AWG 3-Conductor 814 Mil 125 Foot 600 Volt 70 Amp Black/White/Red Copper/PVC/Nylon NM-B Cable

Manufacturer: Copper Building Wire | Catalog # 63968202 | North Coast Part # 2293209
*Call For Price*
ft
Order in multiples of 125 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Southwire 63968202 4 AWG 3-Conductor 814 Mil 125 Foot 600 Volt 70 Amp Black/White/Red Copper/PVC/Nylon NM-B Cable

Technical Information

Conductor Material
Copper
Conductor Size
4 AWG
Direct Burial?
No
Insulation Material
PVC
Material
Copper With Ground
Number of Conductors
3
Stranding
7 Strand,Stranded
Voltage
600 Volt
Wet Location
No
Wire Size
4 AWG

Manufacturer Information

Brand
Generic Wire & Cable

General Product Info

12-Digit UPC
032886263750
Color
Black
Product UPC
03288626375

Dimensions

Length
125 Foot
Features
  • Color-coded inners for circuit identification
  • Available with and without ground
  • Rated for 90?C in dry locations
  • Ampacity is limited to that for 60?C conductors per NEC Article 334
Outer Jacket
  • Polyvinyl Chloride (PVC)
Applications
  • Residential wiring as branch circuits for outlets, switches, and other loads
  • Exposed or concealed wiring
  • May be run through walls, ceilings and masonry blocks
  • New wiring or replacement wiring
  • Only for use in normally dry locations
Grounding Conductor
  • Bare annealed Copper per ASTM B3 or ASTM B8
Assembly
  • Type THHN inners, rated 90?C in dry locations
  • 2-conductor - insulated conductors laid parallel with a Bare Copper grounding conductor wrapped in paper and laid parallel between the insulated conductors
  • 3-conductor - insulated conductors laid parallel or twisted together with Bare Copper grounding conductor wrapped in paper
  • The entire assembly is wrapped with a paper separator prior to applying the Polyvinyl Chloride (PVC) outer jacket
Compliances
  • UL Standard 83
  • UL Standard 719
  • ASTM B3 and B8
  • NEC Article 334
  • Federal Specification A-A-59544
Packaging
  • 250' or 125' coils or 1000' reels
Conductor
  • 14 AWG thou 10 AWG bare annealed Solid Copper per ASTM B3
  • 8 AWG and larger stranded bare annealed Copper per ASTM B8
Insulation
  • Premium-grade Polyvinyl Chloride (PVC) with a Nylon jacket
  • Color-coded: 2 conductor - Black, White; 3 conductor - Black, White, Red
