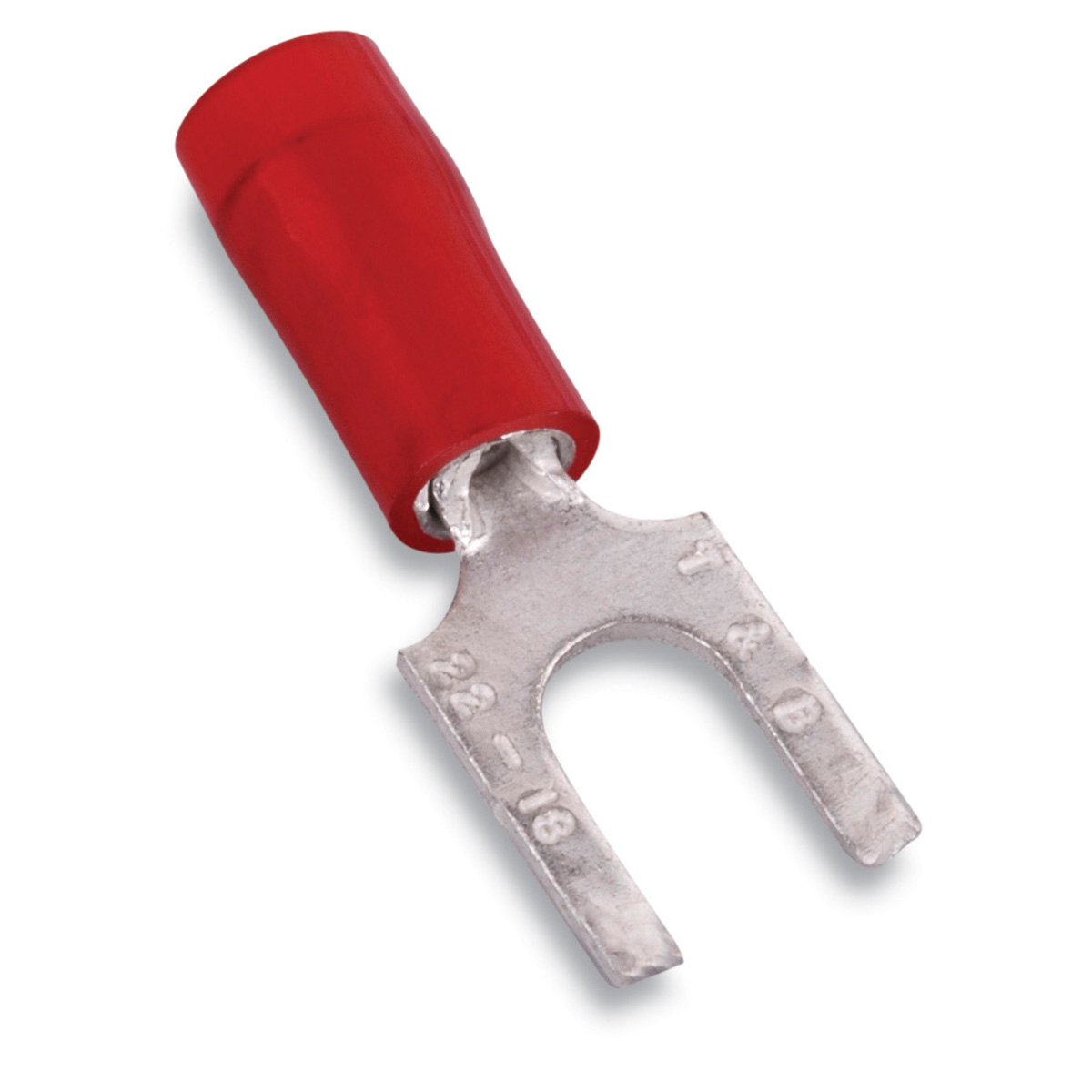

Product image for Thomas & Betts RA18-10FS 22 to 16 AWG #10 Stud Red Electrotinned Copper Nylon Insulated Fork Terminal Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts RA18-10FS 22 to 16 AWG #10 Stud Red Electrotinned Copper Nylon Insulated Fork Terminal Lug

Manufacturer: Thomas & Betts | Catalog # RA18-10FS | North Coast Part # 229373
$366.27/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Nylon Insulated Fork Terminal with Flanged Tongue, Length .93 Inches, Width .38 Inches, Maximum Insulation .136, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Flanged Tongue
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803937
Color
Red
Finish
Tin Plated
GTiN
05414363934240
Product UPC
78621080393
Used With
WT145C, WT2000, WT112M, ERG4001, WT145A Tools

Dimensions

Height
3 Inch
Length
0.93 Inch
Thickness
.03 in
Width
0.38 in
Features
  • Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
Certifications
  • UL
  • CSA
