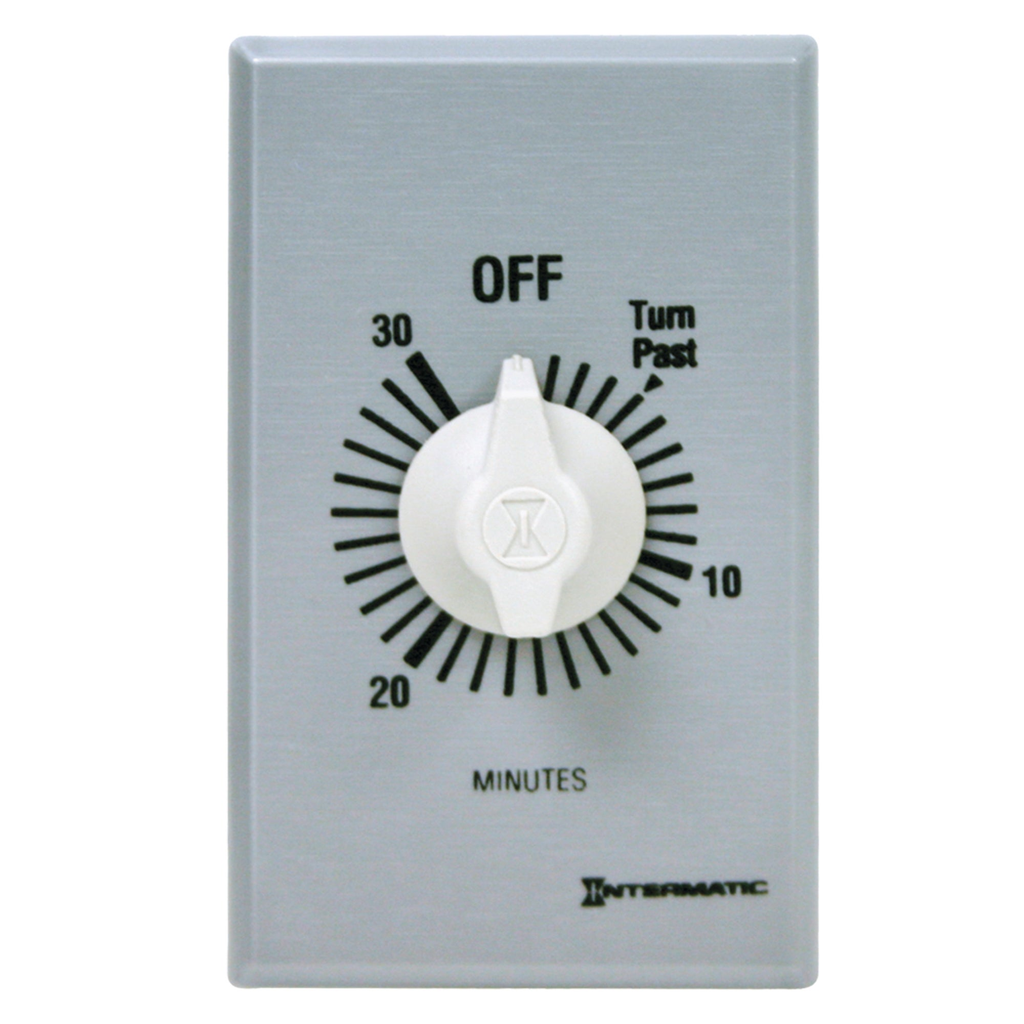

Product image for Intermatic FF330M 30MIN S/W TS W/O HOLDSPDT
Image thumbnail 0
Image thumbnail 1
Email

Intermatic FF330M 30MIN S/W TS W/O HOLDSPDT

Manufacturer: Intermatic | Catalog # FF330M | North Coast Part # 229454
$410.85/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.

Technical Information

Action
SPDT
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Type
Teeter Type
Contact Configuration
SPDT - 1 NO/1 NC
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Material
Plastic
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,NEC,UL Listed,UL Recognized
Switch Type
SPDT
TC Connection
Teeter Type
Type
Commercial, Spring Wound, Auto-Off, Mechanical
Voltage
125-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275069275
Color
Silver
GTiN
00078275069275
Product UPC
07827506927
Weight
0.399 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Tunisia
Features
  • 30-Minute timer
  • SPDT (Single-Pole Double-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Brushed metal look switch plate meets NEC requirements (plate is included)
  • Incandescent/fluorescent/CFL/LED compatible
