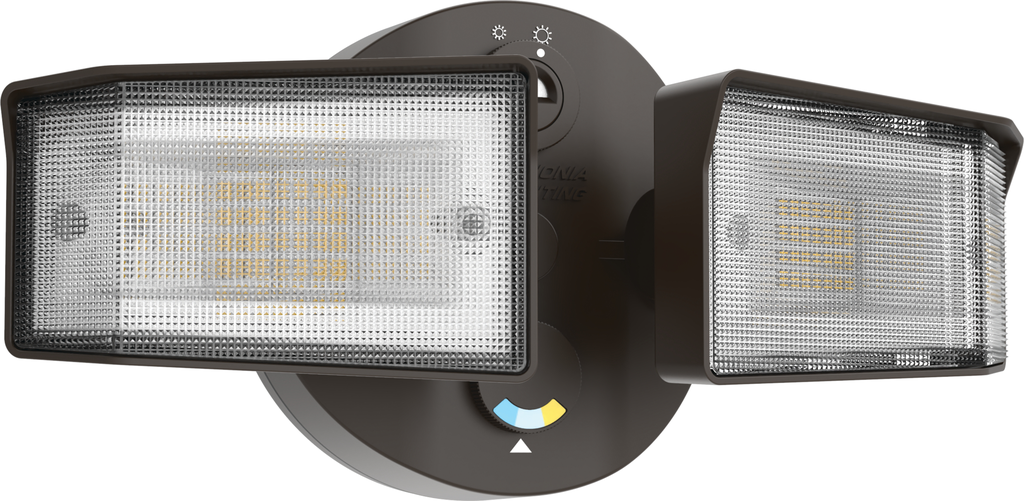

Product image for LITH HGX LED 2SH ALO SWW2 120 PE DD
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LITH HGX LED 2SH ALO SWW2 120 PE DD

Manufacturer: Lithonia Lighting | Catalog # HGX LED 2SH ALO SWW2 120 PE DDB M2 | North Coast Part # 2295591
$122.88/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

Technical Information

Applications
Automotive & Parking,Education,Entertainment,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Warehouses
Average Rated Life
50,000 hr
Color Rendering Index
80
Color Temperature
3000 ,4000 ,5000 ,Variable K
Correlated Color Temp
3000 ,4000 ,5000 ,Variable K
Dimmable?
Yes
Lamp Type
LED
Lens Material
Polycarbonate
Lumens
1,700 , 1,750 , 1,800 , 2,100 , 2,600 , 2,700 , 4,100 Lumen
Material
Aluminum
Mounting Type
Surface
Number of Lamps
2
Power Source
Hardwired
Style
Traditional
Type
Floodlight
Voltage
120 Volt
Wattage
25 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995255214
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
GTiN
00194995255214
Product UPC
19499525521
Shape
Rectangle
Weight
1.26 L

Dimensions

Height
4.33 Inch
Length
3.83 Inch
Width
9 in

Certifications and Compliance

Country of Origin
China,China
Applications
  • Automotive & Parking
  • Education
  • Entertainment
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Residential
  • Retail
  • Warehouses
Features
  • DESIGN: Easy to install and experience, the HGX floodlight family is the best choice for contractors and DIY customers with it's broad feature set for every application
  • ENERGY SAVINGS: Energy-efficient LEDs with adjustable lumen output of 1,700 or 2,700 lumen options
  • DIMMING: Photocell (dusk-to-dawn), Adjustable Lumen Output (ALO) and Switchable Color Temperature (CCT)
  • RATINGS: UL/cUL listed to meet US and Canadian standards, suitable for wet locations, ENERGY STAR certified product
  • MOUNTING: Mounts to a recessed junction box on wall or ceiling with crossbar and hardware provided; wet location listed for mounting 4 feet above the ground with tool-less adjustable heads allow for precise aiming
  • HOURS OF LIFE: The HGX LED provides over 50,000 hours of maintenance free general illumination for outdoor applications where LEDs maintain 70% of light output
  • CONSTRUCTION: Cast-aluminum housing with drak bronze polyester powder paint for lasting durability; LED lamp heads thermally isolated from driver, promoting a long service life; lenses are sealed to prolong service life
  • BATTERY: No emergency battery back-up available in this version
  • WARRANTY: Five-year limited warranty
  • DIMENSIONS: 8.94 in x 4.33 in x 3.82 in
Standards
  • C-UL-USCA Title 24
  • ENERGY STAR
