PAN ISTPHCH1MBU Industrial Cat 5e S

Manufacturer: Panduit | Catalog # ISTPHCH1MBU | North Coast Part # 2301086
$84.01/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet

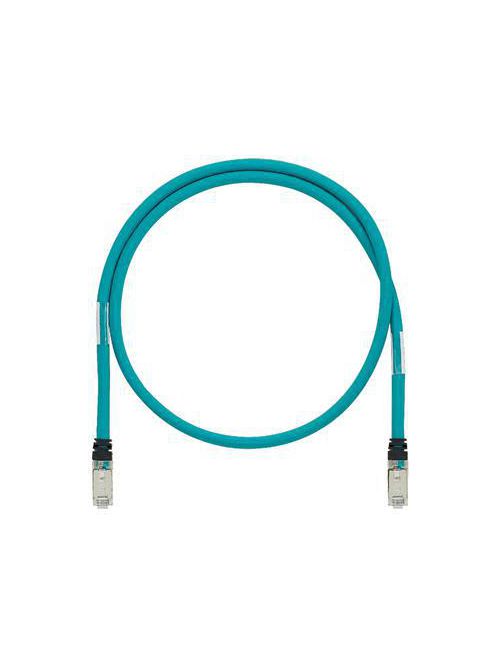

The IndustrialNet™ Cat 5e Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 1 meters in length and Blue.

Technical Information

Applications
For 10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, Uplinks Featuring Gigabit Data Transmission from the Control Panel to the Consolidation Point, High Flex Applications Robotic, C-Track
Boot Color
Black
Cable Type
24 AWG SF/UTP
Conductor Size
24 AWG
Conductor Type
Stranded
Connector Type
RJ45 Modular Plug
IP Rating
20
Max Operating Temperature
70 degrees C
Min Operating Temperature
-20 degrees C
Performance Level
Category 5e
Temperature Rating
-20 to 70 degrees C
Type
Industrial, Category 5e, Shielded
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™

General Product Info

12-Digit UPC
074983718887
Color
Blue
GTiN
00074983718887
Jacket Material
Thermoplastic
Product UPC
07498371888
UNSPSC
43223303

Dimensions

Cable Length
1 m
Outer Diameter
7.2 mm
Overall Length
1 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Meets all applicable ANSI/TIA-968-A requirements; contacts plated with 50 microinches of gold for superior performance, Meets IEC 60603-7, Meets IEEE 802.3af and IEEE 802.3at for PoE applications, UL AWM Style 2463 (80°C 600 V) Flex Life Test: 1 million cycles at 10x cable diameter; 10 million cycles at 20x cable diameter Torsion Life Test: 3 million cycles, 360°, RoHS Compliant
