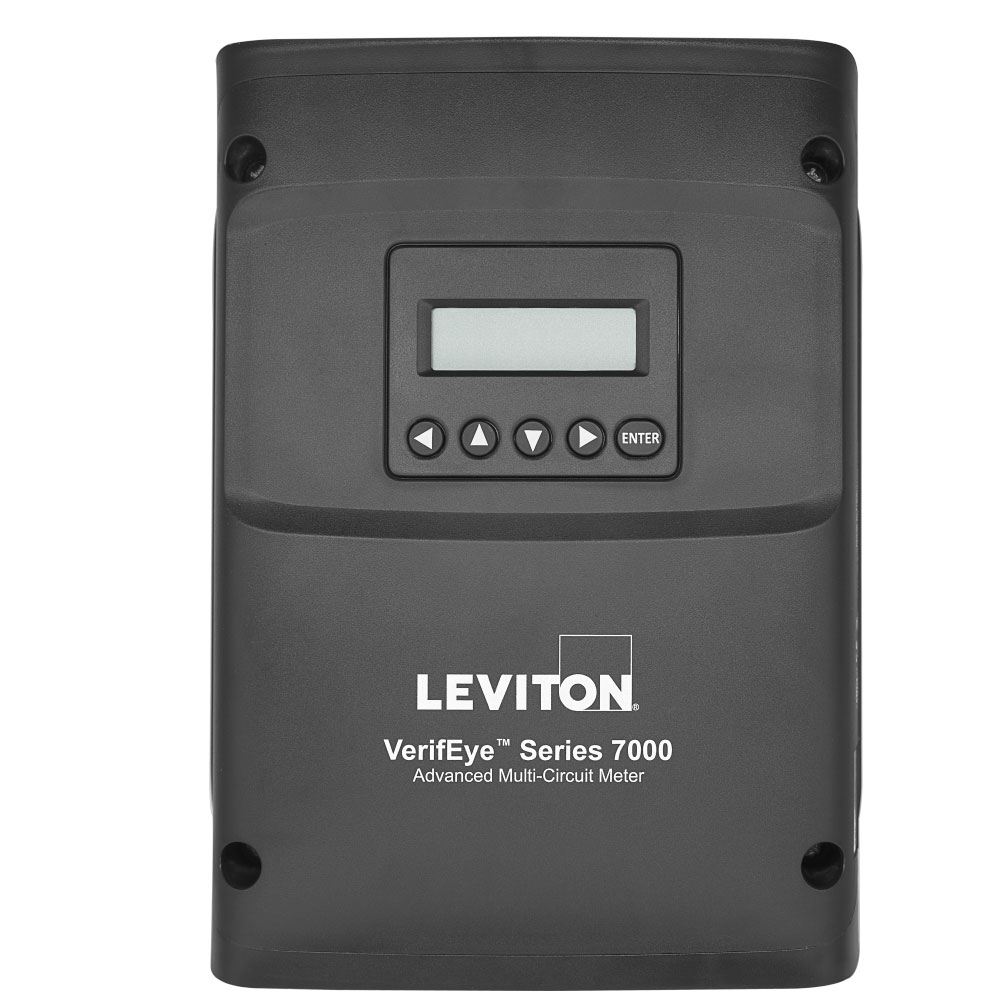

Product image for LEV 73D48 S7300 DV BCM 48 VIRTUAL I
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV 73D48 S7300 DV BCM 48 VIRTUAL I

Manufacturer: LEVIDIST | Catalog # 73D48 | North Coast Part # 2302171
$5,851.85/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Series 7000 Branch Circuit Monitor, 48 inputs, LCD display, NEMA 1 enclosure

Technical Information

Amperage
4000 Amp
Grade
Revenue

Manufacturer Information

Brand
Leviton
Sub Brand
METERS

General Product Info

12-Digit UPC
078477187128
GTiN
00078477187128
Product UPC
07847718712

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • 48 individual Current Transformer (CT) inputs
  • Inputs configurable as follows: 24 virtual meters in any combination of single-phase, two-phase, or three-phase limited to the total 48 CT inputs
  • Consult factory for any other configurations
  • Line powered from 90-600V, phase-to-phase
  • Bidirectional monitoring
  • Meets ANSI & IEC metering system accuracy requirements including branch CTs
  • Supports split core and Rogowski Coil CTs
  • Meter board features: Easy access terminals for CT wiring, removable connectors
  • Available with or without display embedded options
  • Reports volts, amps, power, demand and energy for each circuiteach Series 7000 covers a complete 42 breaker panelboard plus mains for a total of 48 circuits
  • User-configurable alarm thresholds register for improved load management
  • Selectable phase orientation and number of circuits
  • Limited 5-year warranty
  • The VerifEye™ Series 7000 Virtual Element Advanced Branch Circuit Monitors are a cost-effective solution for electrical load management. The Series 7000 platform is ideal for high density, branch circuit monitoring applications in both new construction and retrofit applications. The Series 7000 monitors up to 48 branch circuits with one single meter board. The Series 7000 supports all industry standard communications over RS485 and Ethernet, including ModBus RTU, ModBus TCP, BACnet MS/TP and BACnet IP for maximum flexibility. The integrated USB port may be used for local configuration. Do you have a question about submetering? Contact us to learn more.
