HWDK HBL1389 30A 600V 3 POLE DISC S

Manufacturer: Hubbell / Kellems | Catalog # HBL1389 | North Coast Part # 2307866
$283.08/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

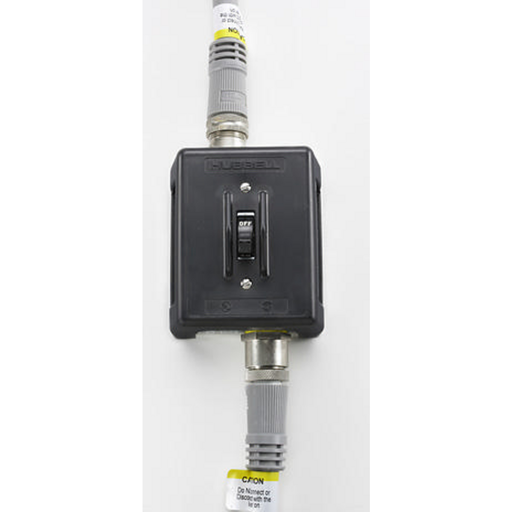

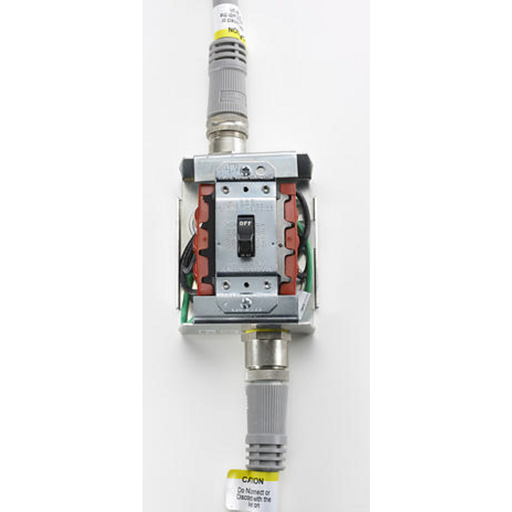

Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A 600V AC, Thermoplastic

Technical Information

Actuator
Toggle
Amperage
30 Amp
Applications
For Motor Disconnect and Indoor Use
Conductor Size
10 AWG
Current
30 Amp
Grade
Industrial
Horsepower
20 hp
Number of Poles
3 Pole
Operating Cycles
10000
Type
Non-Fused, Standard-Duty
Voltage
600 VAC
Wattage
18000 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585680910
Color
Black
GTiN
00783585680910
Product UPC
78358568091
Weight
1.6 lb

Dimensions

Height
3.4 Inch
Length
4.52 Inch
Width
3.97 in

Certifications and Compliance

Country of Origin
China
Features
  • Thermoplastic cover on a plated steel base
  • Durable, non-conductive cover
  • Wiring conduit knockouts
  • \" and \" NPT
  • Top, bottom or back wire entry points
  • Surface mount control
  • Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
  • Standard Product
