PAN CESUM3-D24 Cable Entry System,

Manufacturer: Panduit | Catalog # CESUM3-D24 | North Coast Part # 2308567

$23.64/ea
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Installation / Instruction Manual

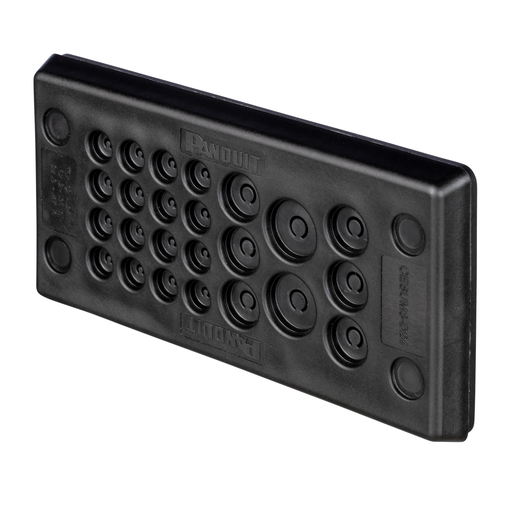

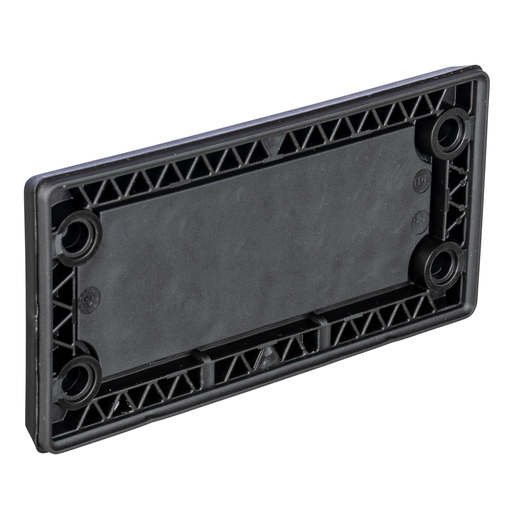

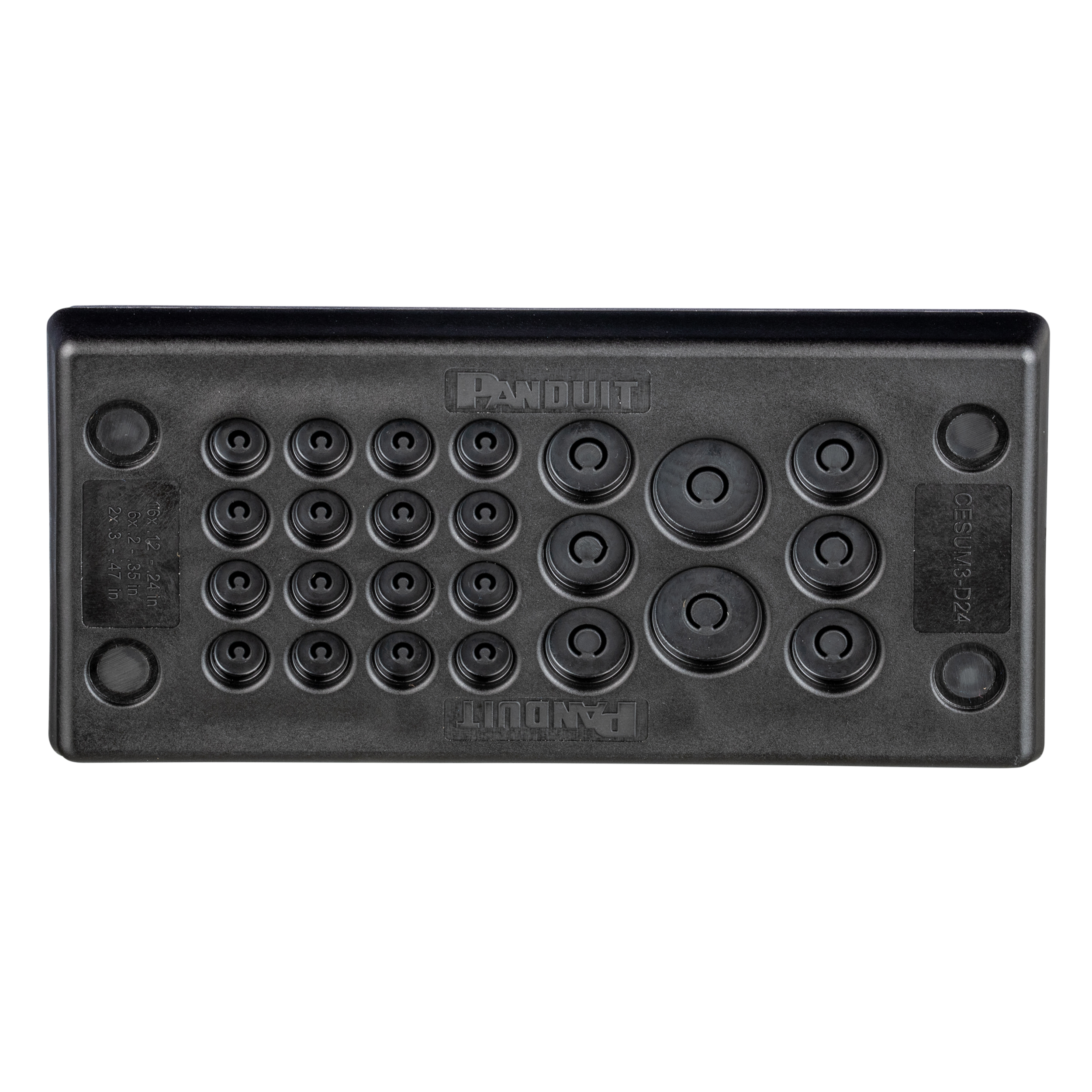

The Cable Entry Systems offer a safe, organized method to transition cable and hoses through enclosures and electrical equipment. Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-D24 is a Rectangular Un-Terminated Cable Entry System, 4.8" (123 mm) Long with 16 Openings 0.12" (3 mm) to 0.24" (6 mm), 6 Openings 0.2" (5.1 mm) to 0.35" (9 mm), 2 Openings 0.3" (7.5 mm) to 0.47" (12 mm). Color is Black. Std Pkg Qty=1PC.

Technical Information

IP Rating
IP66
Max Operating Temperature
158 degrees F
Min Operating Temperature
-22 degrees F
Type
Cable Entry System Frame

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
613056856172
Color
Black
GTiN
00613056856172
Product UPC
61305685617

Dimensions

Overall Length
4.8 in
Width
2.4 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
Germany
Prop 65
  • N
Standards and Certifications
  • Standards Met: UL Recognized and cULus Recognized
