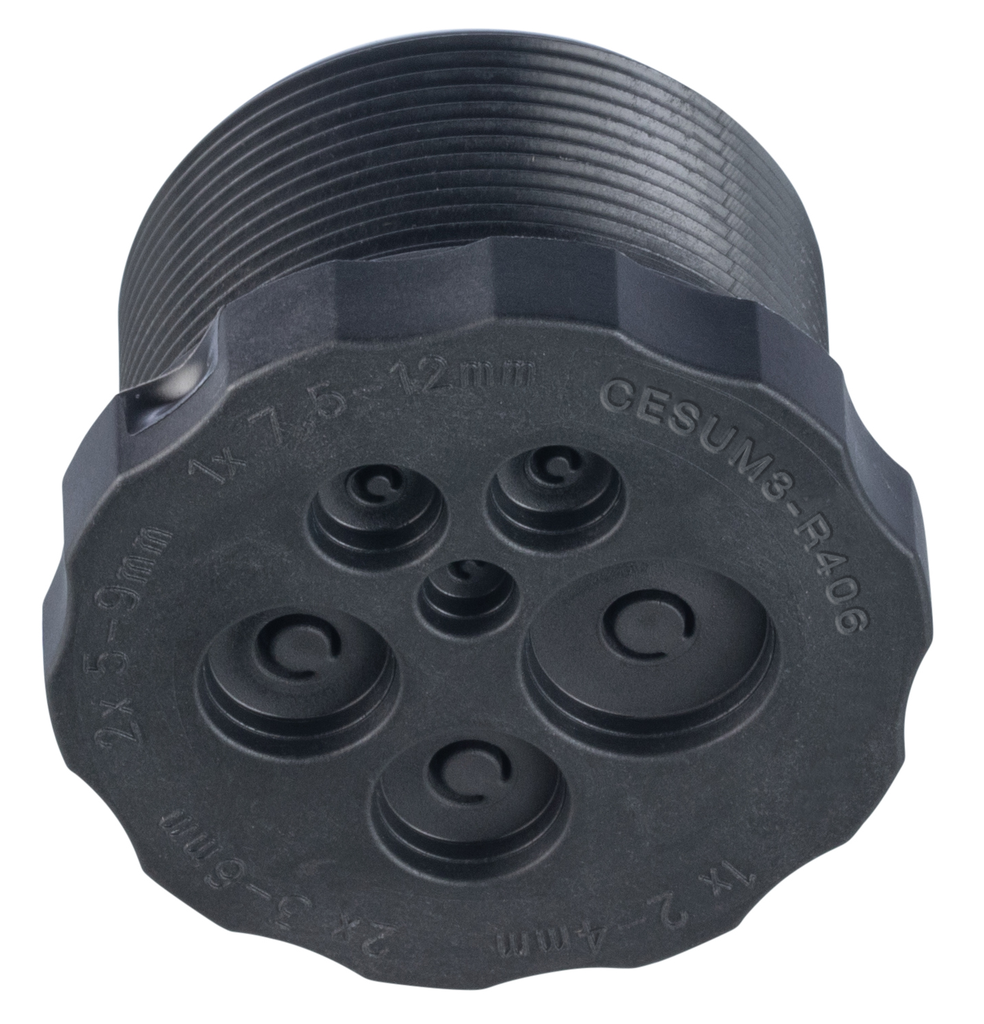

Product image for PAN CESUM3-R406 Cable Entry System,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

PAN CESUM3-R406 Cable Entry System,

Manufacturer: Panduit | Catalog # CESUM3-R406 | North Coast Part # 2308578

$8.51/ea
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Installation / Instruction Manual
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-R406 is a Rpund Un-Terminated Cable Entry System, 1.9" (48.5 mm) Long, with 1 Opening 0.08" (2 mm) to 0.16" (4 mm), 2 Openings 0.12" (3 mm) to 0.24" (6 mm), 2 Openings 0.2" (5 mm) to 0.35" (9 mm) & 1 Opening 0.3" (7.5 mm) to 0.47" (12 mm). Color is Black, Std Pkg Qty is 5 PC.

Technical Information

IP Rating
IP65
Max Operating Temperature
194 degrees F
Min Operating Temperature
-22 degrees F
Type
Cable Entry System Frame

Manufacturer Information

Brand
Panduit Corp.

General Product Info

12-Digit UPC
613056856202
Color
Black
GTiN
00613056856202
Product UPC
61305685620

Dimensions

Outer Diameter
1.9 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
Germany
Standards and Certifications
  • Standards Met: UL Recognized and cULus Recognized
Prop 65
  • N
