SATCO 62/1820 7" LED DISK LIGHT W/

Manufacturer: Satco | Catalog # 62/1820 | North Coast Part # 2309299
$50.91/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet

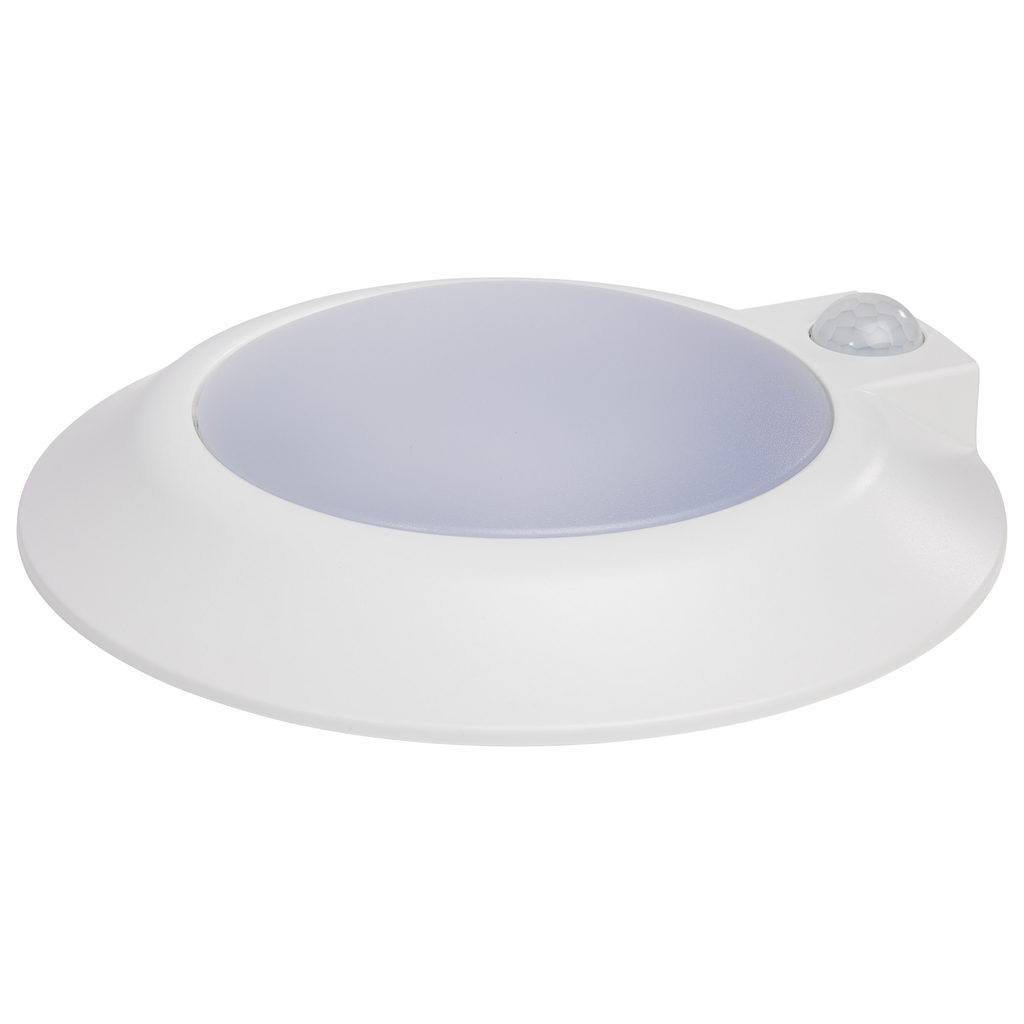

Introducing SATCO|NUVO's 62-1820 LED CCT Selectable Disk Light, revolutionizing your lighting experience with Colorquick technology. This 7-inch, 16-watt disk light features integrated occupancy sensors and is ideal for Multi-Family and Residential locations. Rated for 50,000 hours, with a high CRI of 93, 2.5kV surge protection, and damp location rated, this disk light is built to the highest quality, perfect for any interior decor.

Technical Information

Amperage
0.133 Amp
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Average Rated Life
50000 hr
Ballast Type
N/A
Beam Spread
110
Color Temperature
Warm White To Natural Light
Correlated Color Temp
2700 K
Dimmable?
No
Incandescent Equivalent
60 W
Indoor Outdoor
Indoor
Lamp Type
LED
Lens Color
White
Lens Material
Acrylic
Lumens
1,000 Lumen
Material
Steel
Number of Lamps
1
Operating Temperature
-13 degrees F
Power Factor
0.9
Reflector Finish
N/A
Style
Contemporary
Technology Type
LED
Type
30mm Push Button Glass Disk
Voltage
120 Volt
Wattage
16 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Nuvo Lighting

General Product Info

12-Digit UPC
045923623523
Finish
White
Fixture Type
Round
GTiN
00045923623523
Product UPC
04592362352
Weight
0.61 lb

Dimensions

Diameter
7.06 Inch
Height
1.42 Inch
Length
7.06 Inch
Warranty Length
5 yr
Width
7.06 in

Certifications and Compliance

CA Prop65 Warning
Lead
Country of Origin
Malaysia
Prop 65
  • Lead
Features
  • 5 CCT Selectable
  • On/Off or 30 percent step down PIR Sensor
  • 93 CRI
  • Damp Rated
  • Mount to 3 inch and 4 inch Junction Boxes
  • 7.06 inch Diameter x 1.42 inch Height
  • PIR sensor specs: Detection area up to 20ft max
  • Bi-level 30-100% or 0-100% with a minimum shut-off time of 0-3 sec to a maximum of 5 minutes.
Installation Notes
  • Keyhole Slots
