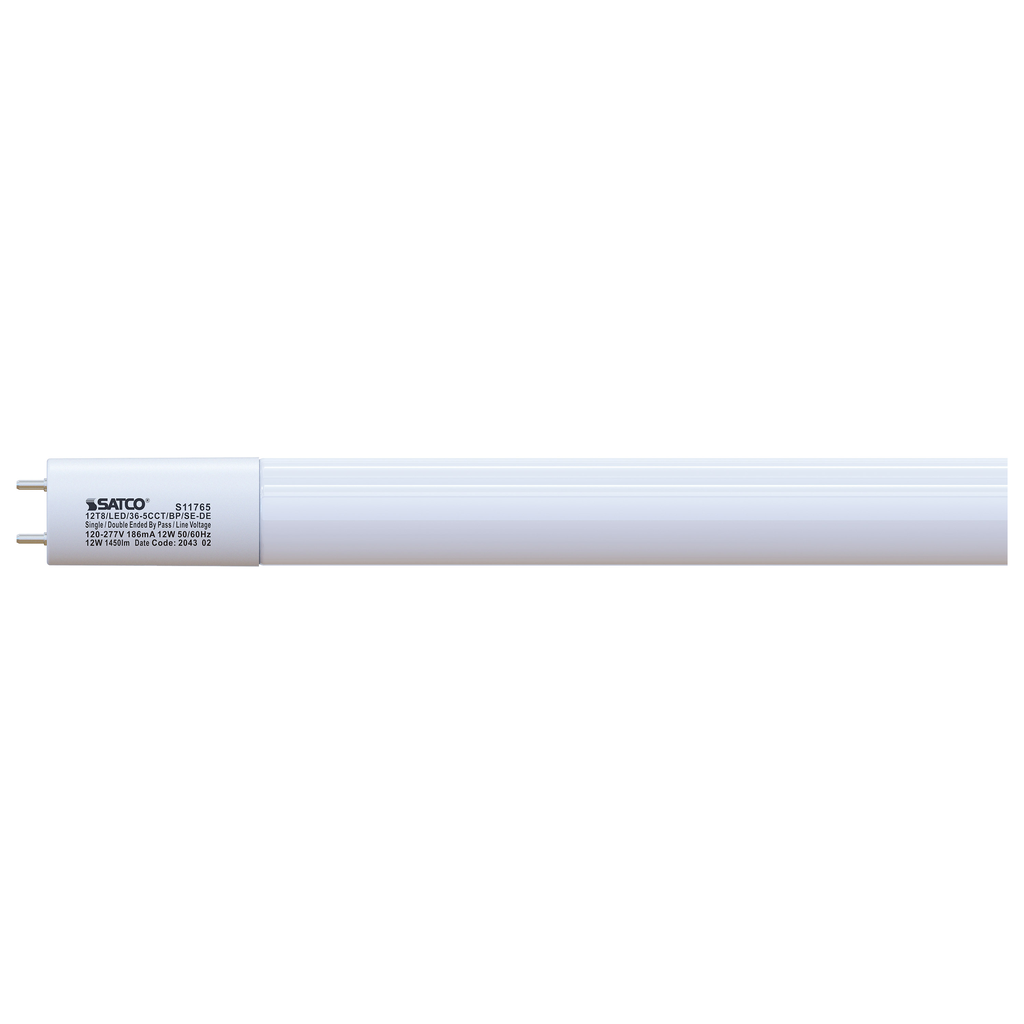

Product image for SATCO S11765 12T8/LED/36-5CCT/BP/SE
Email

SATCO S11765 12T8/LED/36-5CCT/BP/SE

Manufacturer: Satco | Catalog # S11765 | North Coast Part # 2311876
$14.83/ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
12-Watt 3-Foot LED T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt

Technical Information

Amperage
0.100-0.043 Amp
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Average Rated Life
50000 hr
Beam Angle
210
Beam Spread
210
Color Temperature
Warm White To Daylight
Correlated Color Temp
Warm White to Daylight
Incandescent Equivalent
50 W
Lamp Type
LED
Lens Color
Frost
Lens Material
Glass
Lumens
1,350 Lumen
Material
Glass,Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Standard
CSA C22.2 No. 85,UL E23018,cULus
Technology Type
LED
Type
Premium, Small
Voltage
120 Volt
Wattage
12 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923117657
Finish
White
GTiN
00045923117657
Housing Color
White
Product UPC
04592311765
Weight
0.35 lb

Dimensions

Length
36 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Ballasting Requirements
  • Ballast Bypass
Features
  • MOL: 35.17 inches, MOD: 1.00 inch
  • Medium Bi Pin base
  • CCT Selectable
  • Rated for 50,000 hours
  • Damp location rated
  • Single or double-ended wiring
  • 5-Year Warranty
  • Non CCT Selectable options are S39926-S39929
Installation Notes
  • Not for use in vapor tight fixtures.
