Appleton AERL3216450 AERL32 REEL W/50FT

Manufacturer: Appleton | Catalog # AERL3216450 | North Coast Part # 2315659
$11,938.20/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page

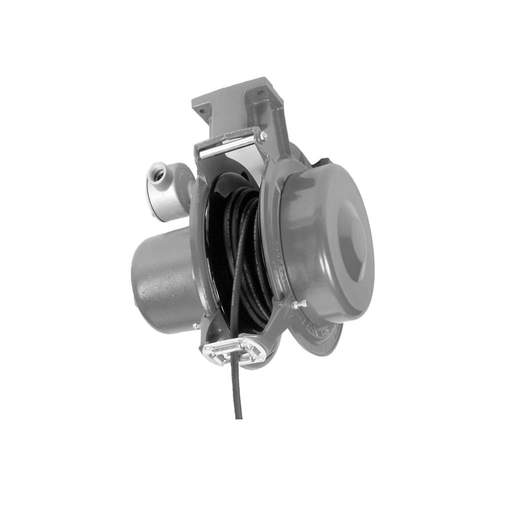

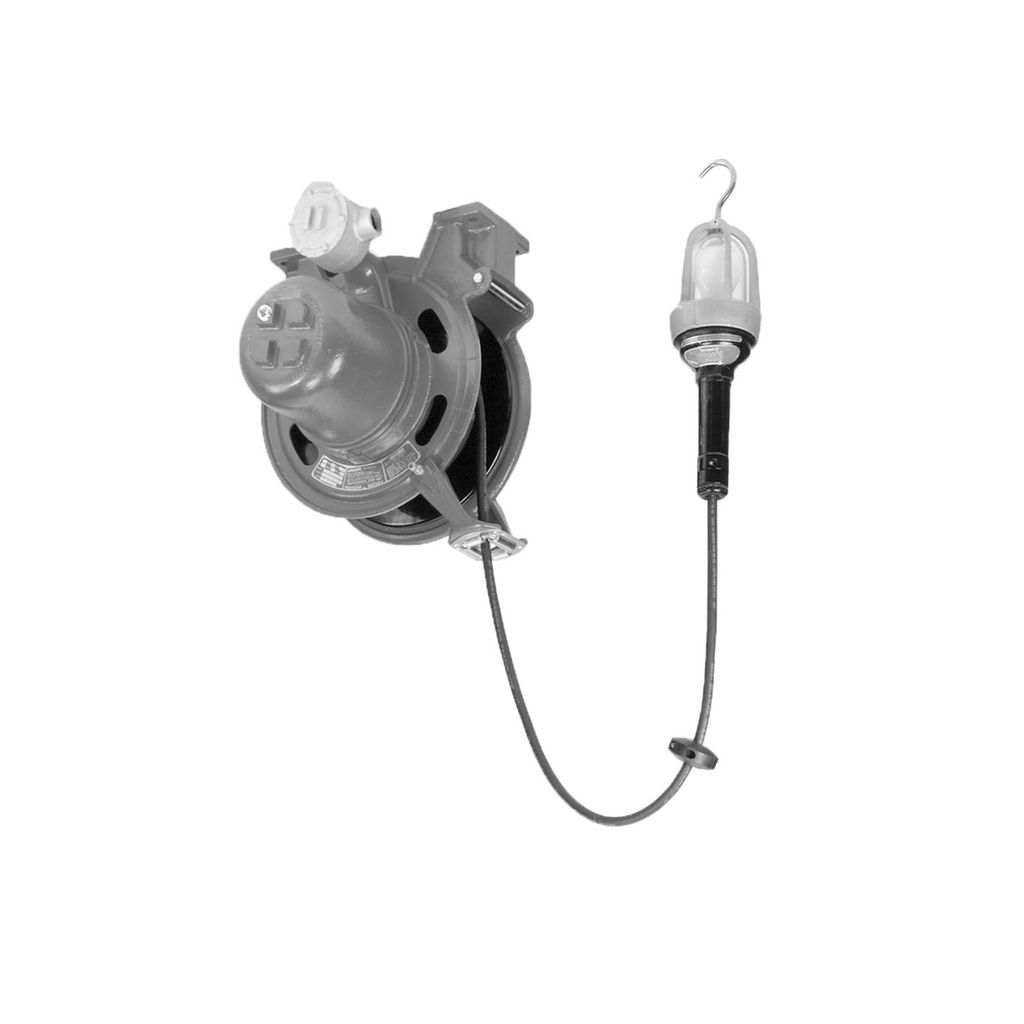

AERL Series Explosionproof Reelites™ transfer safe, uninterrupted power or control signals for equipment requiring #16 or #14 gauge type SO oil-resistant cable with 2 to 4 conductors. These powder coated aluminum and steel Reelites™ are designed for reliable operation and long life with minimal maintenance. Most models are configured to provide constant cable tension, but all models contain a built-in cable locking ratchet mechanism that can be easily engaged in the field.

Manufacturer Information

Brand
Appleton

General Product Info

12-Digit UPC
781381861038
GTiN
00781381861038
Product UPC
78138186103

Dimensions

Cable Length
30 ft

Certifications and Compliance

Buy American Compliant
Y
Features
  • UL and cUL Listed. Class I, Division 1 and 2, Group D
  • Class II, Division 1 and 2 , Groups E, F, G
  • Class III
  • Designed for lift, pick-up and suspension applications in Class I, Group D; Class II, Groups E, F and G; and Class III hazardous locations containing flammable vapors, gases or combustible dust.
  • Maximum operating capacity 15 Amps, 600 Vac/250 Vdc
  • Compact size, light weight and rugged construction for long service with minimum maintenance
  • Factory prewired and sealed to large junction box for fast, easy installation
  • Safety ground through separate collector ring and frame provides positive grounding path
  • Lifetime-lubricated bearings reduce maintenance
  • Easy-to-remove cover provides quick access to springs. Cast threaded cover is removable for inspection of ring and brush assembly
  • Each spring is separately contained in a safety cartridge to eliminate danger during handling or replacement
  • Built-in cable locking ratchet is provided with all reels in this series and can be easily activated when required
  • Available with cable lengths up to 15.2 meters (50 feet)
  • Includes adjustable four-roller cable outlet guide. Other optional cable guides and swivel bases are available
