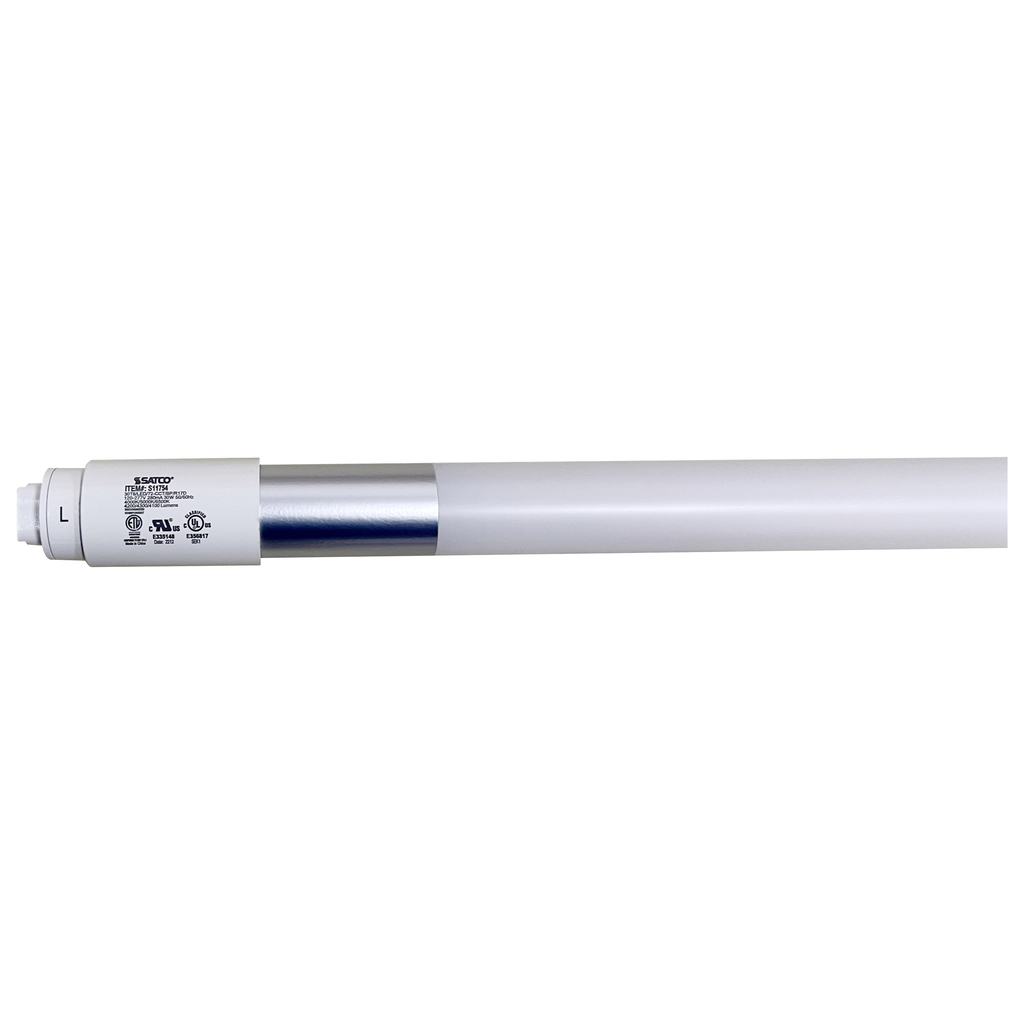

Product image for SATCO S11754 30T8/LED/72-CCT/BP/R17
Email

SATCO S11754 30T8/LED/72-CCT/BP/R17

Manufacturer: Satco | Catalog # S11754 | North Coast Part # 2316217
$33.04/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
30 Watt T8 LED - Recessed Double Contact HO/VHO Base - CCT Selectable - Type B - Ballast Bypass - PET Shatterproof Coated - White Finish - 72 Inches - 120-277 Volt

Technical Information

Amperage
0.250-0.108 Amp
Applications
Indoor Lighting
Average Rated Life
50000 hr
Beam Angle
180 DEG
Beam Spread
180
Color Temperature
Cool White To Daylight
Correlated Color Temp
Cool White to Daylight
Incandescent Equivalent
125 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lamp Type
LED
Lens Color
Frost
Lens Material
Glass
Lumens
4,100 Lumen
Material
Glass,Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Type
Linear
Voltage
120 Volt
Wattage
30 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923117541
Finish
White
GTiN
00045923117541
Housing Color
White
Product UPC
04592311754
Weight
1.01 lb

Dimensions

Length
72 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Installation Notes
  • Not for use in vapor tight fixtures.
Features
  • Direct replacement for fluorescent T8 or T12 lamps
  • Ballast bypass - UL Type B installation
  • NSF certified - P.E.T. coated, shatter resistant glass tube
  • Compatible with S8002 Emergency Driver
  • 5-Year warranty
  • CCT Selectable
  • Rated for 50,000 hours
Ballasting Requirements
  • Ballast Bypass
