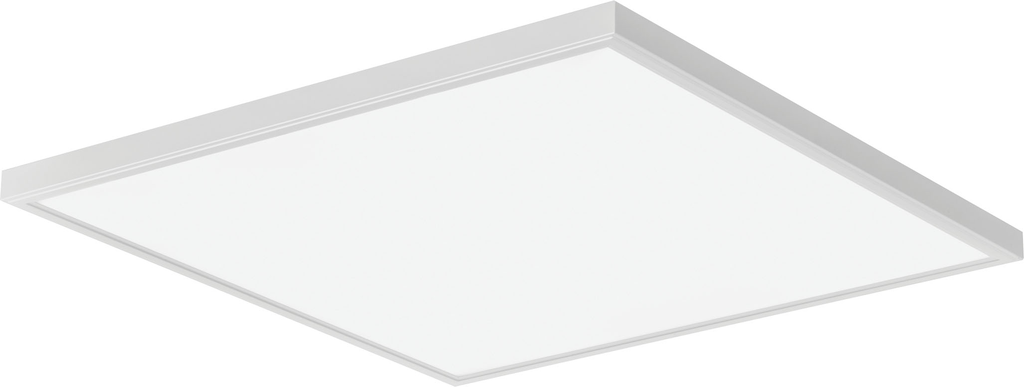

LITH CPANL 2X2 33LM SWW7 120 TD DCM

Manufacturer: Lithonia Lighting | Catalog # CPANL 2X2 33LM SWW7 120 TD DCMK | North Coast Part # 2317743
$186.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
CPANL, 1x4, Nominal 4000 LM, Switchable CCT . 3500K, 4000K, and 5000K, 120V, Triac dimming, Direct ceiling mount kit

Technical Information

Applications
Education,Healthcare,House of Worship,Offices & Banks,Residential,Retail,Utility, Closet
Color Temperature
3500 K
Correlated Color Temp
3500 K
Lamp Type
LED
Lens Color
White
Lens Material
Acrylic
Lumens
3,300 Lumen
Material
Steel
Mounting Type
Recessed,Surface
Power Source
Hardwired
Style
Traditional
Voltage
120 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995063239
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Semi-Gloss
GTiN
00194995063239
Product UPC
19499506323
Shape
Square
Weight
8.1 L

Dimensions

Height
1.1 Inch
Length
23.8 Inch
Width
23.8 IN

Certifications and Compliance

Country of Origin
China,China
Features
  • The CPANL™ LED Fully Switchable Flat Panel features an integrated driver that allows CPANL to be suspended, direct surfaced mounted or integrated into a t-grid ceiling. The adjustable lumen output (ALO) feature adds flexibility by allowing you to choose between three-lumen options with a simple switch. And now, CPANL also features switchable color temperature (SWW) which allows you to select either warm, medium or cool temperatures. Direct ceiling surface mount kit (DCMK 224) included.
  • TECHNOLOGY: Features adjustable lumen output (ALO) and switchable color technology (SWW) allowing for more flexibility and customization for your space
  • ENERGY SAVINGS:Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • DIMMING: 120 Volts, Triac dimming
  • RATINGS: Certified for damp locations, CSA certified, IC certified, DLC certified
  • VOLTAGE: 120 Volts, comes with DCMK Bracket for flat surface mounting as well as t-grid ceiling mounting
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 60,000 hours (L7060,000
  • INSTALLATION: Flexible mounting options including the standard integral T-Bar clips for installation into T-Grid ceilings, Direct surface mounting available with included DCMK 224 bracket
  • BATTERY: Field-installable LED emergency driver sold separately
  • WARRANTY: 1-year limited warranty

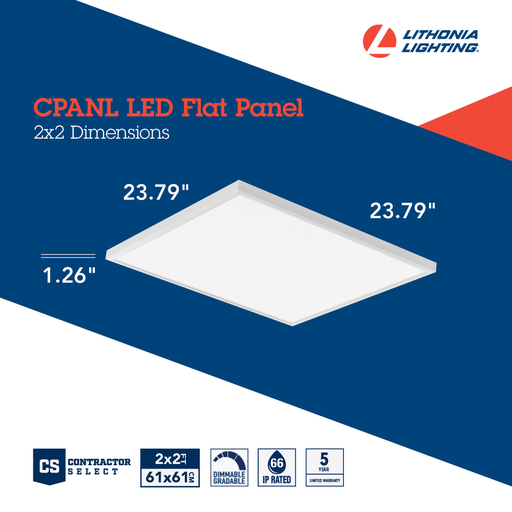

  • DIMENSIONS: 23-4/5 in. x 23-4/5 in. x 1-1/4 in.
  • CPANL has a slim profile to accommodate tight plenums
  • CPANL is an edge-lit panel that provides superior illumination
  • CPANL offers multiple mounting options, DCMK Bracket included
  • led panel light, led flat panel, led lights panels, led lighting panel, led panel, flat panel light, 2x4 led lights, 2x2 led light, panel lighting, led panel flat panel led lights, led flat light panels, lithonia, dcmk
Applications
  • Education
  • Healthcare
  • House of Worship
  • Offices & Banks
  • Residential
  • Retail
  • Utility
  • Closet
