Blackburn CSP4 Copper Splice Sleeve

Manufacturer: Thomas & Betts | Catalog # CSP4 | North Coast Part # 231821
$1,624.01/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Type CSP Copper Splice, Short Barrel, Max 35kV, Wire Size 4 Str, Tin Plated, Die Color Code Gray

Technical Information

Barrel Length
Short
Conductor Size
4 AWG
Connector Type
Compression
Insulated?
No
Material
Copper
Standard
UL E9809
Type
Short Barrel
Voltage
35 kV
Wire Size
4 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786132058
Color
Gray
Finish
Tin Plated
GTiN
00783786132058
Product UPC
78378613205

Dimensions

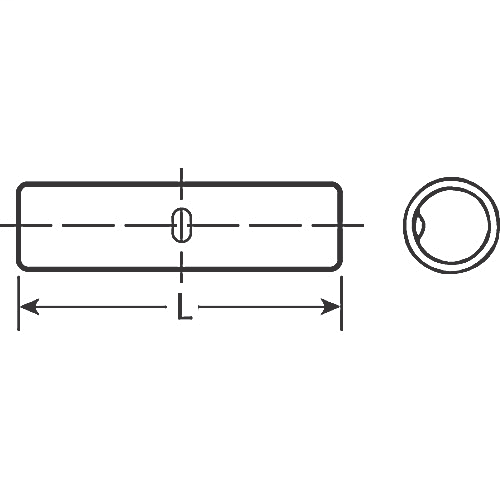

Length
1 Inch
Features
  • Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
  • Color-coded for matching die identification.
  • Specifically chamfered barrel for ease of installation.
  • Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
  • UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
Notes
  • For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
