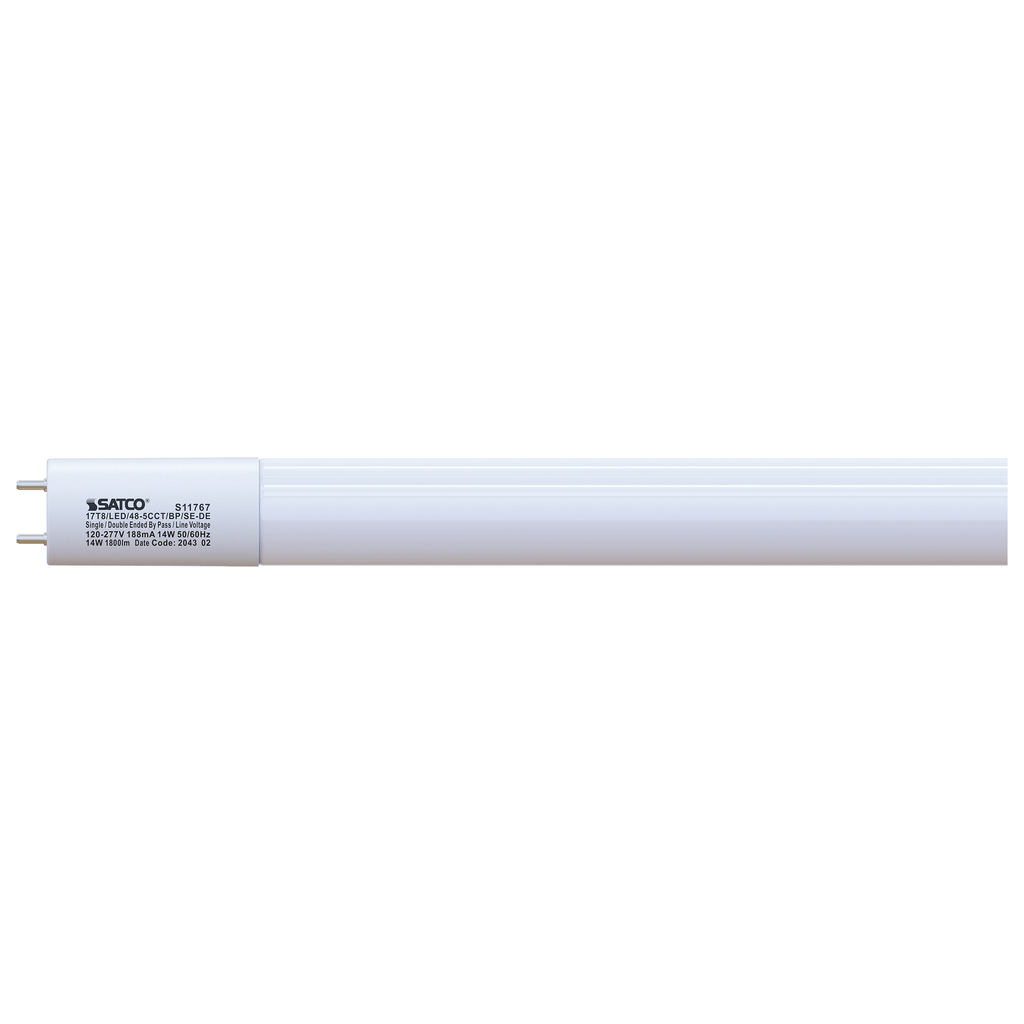

Product image for SATCO S11767 17T8/LED/48-5CCT/BP/SE
Email

SATCO S11767 17T8/LED/48-5CCT/BP/SE

Manufacturer: Satco | Catalog # S11767 | North Coast Part # 2319278
$13.33/ea
ea
Log in or register to view your price, purchase history, and more!
395 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
395 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet
17-Watt 4-Foot LED T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt

Technical Information

Amperage
0.142-0.061 Amp
Applications
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor
Average Rated Life
50000 hr
Beam Angle
210
Beam Spread
210
Color Temperature
Warm White To Daylight
Correlated Color Temp
Warm White to Daylight
Incandescent Equivalent
90 W
Lamp Type
LED
Lens Color
Frost
Lens Material
Glass
Lumens
2,100 Lumen
Material
Glass,Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Standard
CSA C22.2 No. 85,UL E23018,cULus
Technology Type
LED
Type
Premium, Small
Voltage
120 Volt
Wattage
17 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923117671
Finish
White
GTiN
00045923117671
Housing Color
White
Product UPC
04592311767
Weight
0.45 lb

Dimensions

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 47.17 inches, MOD: 1.00 inch
  • Medium Bi Pin base
  • CCT Selectable
  • Rated for 50,000 hours
  • Damp location rated
  • Single or double-ended wiring
  • 5-Year Warranty
  • Non CCT Selectable options are S39904-S39907
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
