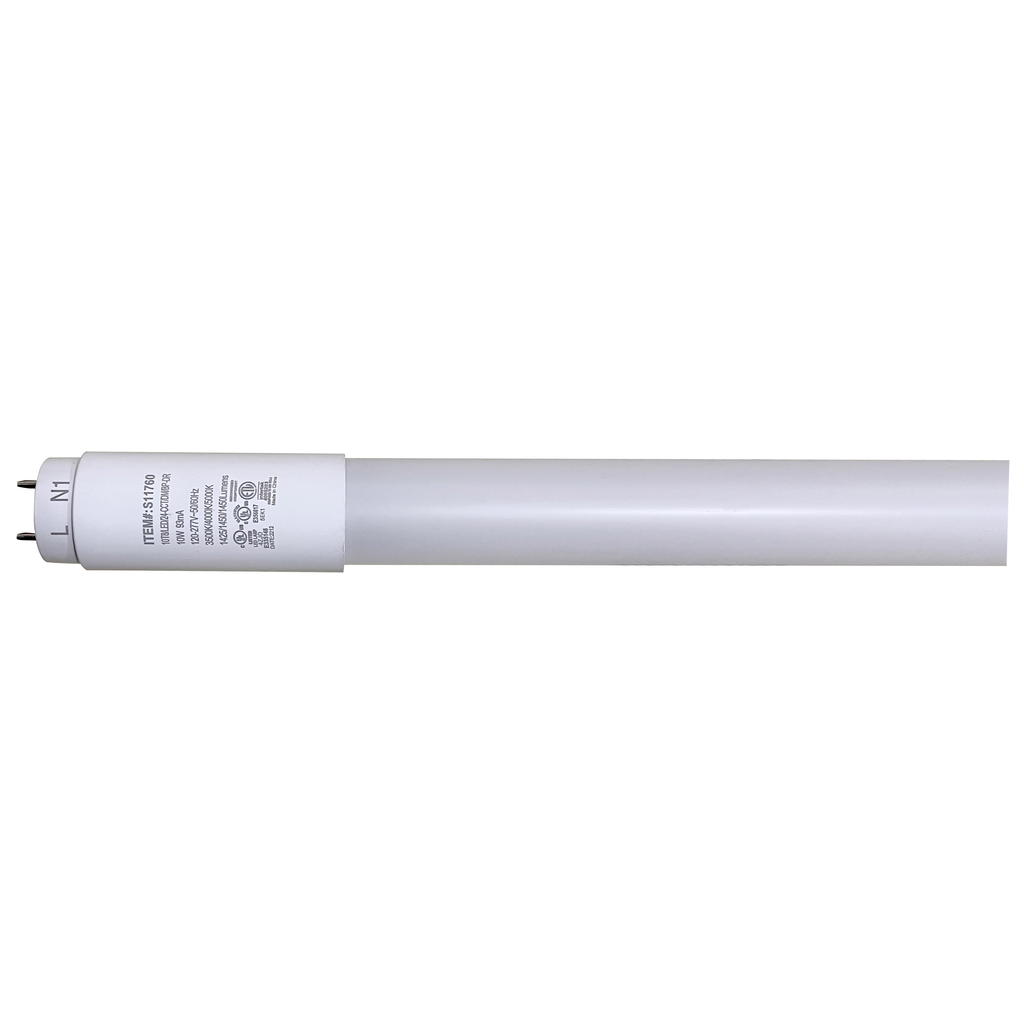

Product image for SATCO S11760 10T8/LED/24-CCT/DM/BP-
Email

SATCO S11760 10T8/LED/24-CCT/DM/BP-

Manufacturer: Satco | Catalog # S11760 | North Coast Part # 2331869
$14.58/ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SATCO|NUVO's S11760 premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. This lamp is compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of installation. This two foot T8 is 3500K/4000K/5000K CCT selectable during installation for immediate energy savings anywhere fluorescent lamps were used.

Technical Information

Amperage
0.083-0.036 Amp
Applications
For Lighting
Average Rated Life
50000 hr
Base
G13
Beam Angle
180
Beam Spread
180
Color Temperature
Neutral White To Natural Light
Correlated Color Temp
3500/4000/5000 K
Dimmable?
Yes
Incandescent Equivalent
125 W
IP Rating
IP20
Lens Color
Frost
Lens Material
Glass
Lumens
1,425 Lumen
Material
Glass,Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Standard
CSA C22.2 No. 85,UL E23018,cULus
Technology Type
LED
Type
T8
Voltage
120 Volt
Wattage
10 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923117602
Finish
White
GTiN
00045923117602
Housing Color
White
Product UPC
04592311760
Weight
0.33 lb

Dimensions

Diameter
1 Inch
Length
23.78 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Ballasting Requirements
  • Ballast required (Type A) or Ballast Bypass (Type B)
Features
  • CCT Selectable - 3500K/4000K/5000K
  • Direct replacement for fluorescent T8 lamps
  • Ballast compatible or ballast bypass installation
  • NSF Certified - P.E.T. coated, shatter resistant glass tube
  • Compatible with select emergency backup and dimming ballasts
  • Dimmable
  • Rated for 50,000 hours
Installation Notes
  • Not for use in vapor tight fixtures.
