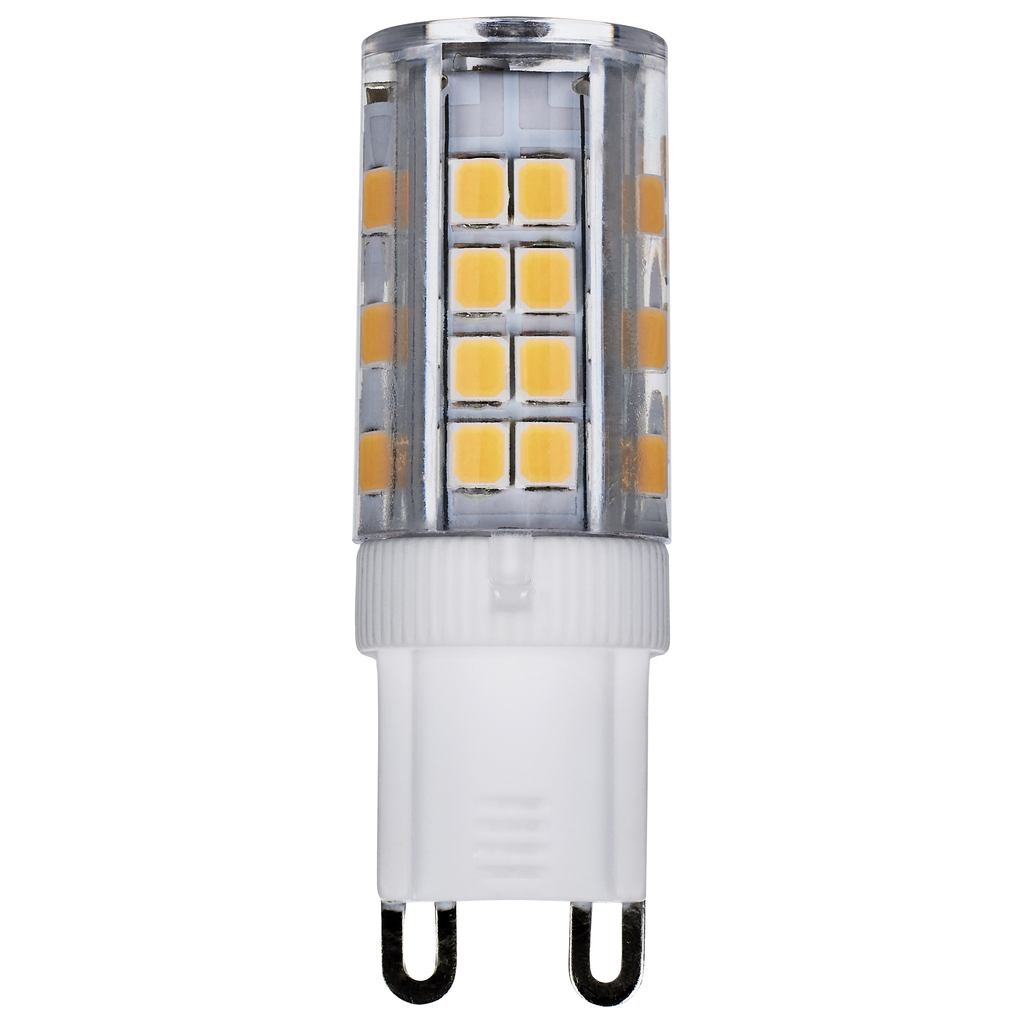

SATCO S11230 3.5 Watt JCD LED Lamp

Manufacturer: Satco | Catalog # S11230 | North Coast Part # 2342222
$12.70/ea
ea
Log in or register to view your price, purchase history, and more!
8 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
8 available

For Delivery

Order by Wednesday 4:00pm PT for delivery Thursday
Not in local stock *
Check another branch
Specification Sheet

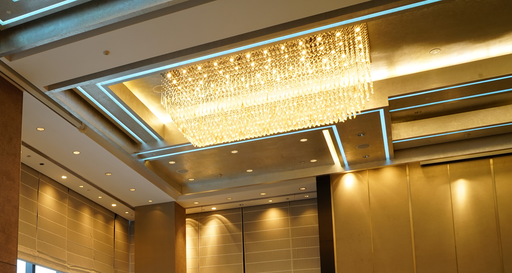

Transform your surroundings with SATCO|NUVO's S11230 3.5-watt, T4, G9-base, Halogen replacement lamp, engineered for optimal energy efficiency and affordability. With a CCT of 3000K and emitting a 300-degree omni-directional light, this lamp is ideal for accentuating various settings. Find the perfect lighting solution for chandeliers, display lighting, landscapes, displays and more with the brilliantly focused light of this lamp, tailored to meet your needs.

Technical Information

Amperage
0.029 Amp
Average Rated Life
25000 hr
Base
G9 Double Loop
Beam Angle
300 DEG
Beam Spread
300
Color Temperature
Soft White
Correlated Color Temp
3000 K
Dimmable?
No
Incandescent Equivalent
35 W
Indoor Outdoor
Indoor
IP Rating
IP20
Lens Color
Clear
Lens Material
Plastic
Lumens
330 Lumen
Material
Ceramic,Polycarbonate
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
1.97 IN
Technology Type
LED
Type
LED
Voltage
120 Volt
Wattage
3.5 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923112300
Finish
Clear
GTiN
00045923112300
Housing Color
White
Product UPC
04592311230
Weight
0.03 lb

Dimensions

Warranty Length
3 yr

Certifications and Compliance

Country of Origin
China
Features
  • 300 degree Omni-Directional Light
  • Clear Lamp Finish
  • 3000K CCT
  • Damp Location Rated
  • T4, Double Loop G9 Base
  • Enclosed Fixture Rated
  • 25,000 Life Hours
Installation Notes
  • Not for use in vapor tight fixtures. For proper ventilation, original protective glass shield for halogen lamps should be removed during installation.
