NSI IT-4CB Clr 4-14AWG Insltd MULTI

Manufacturer: NSi Industries | Catalog # IT-4CB | North Coast Part # 2345689
$40.09/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant

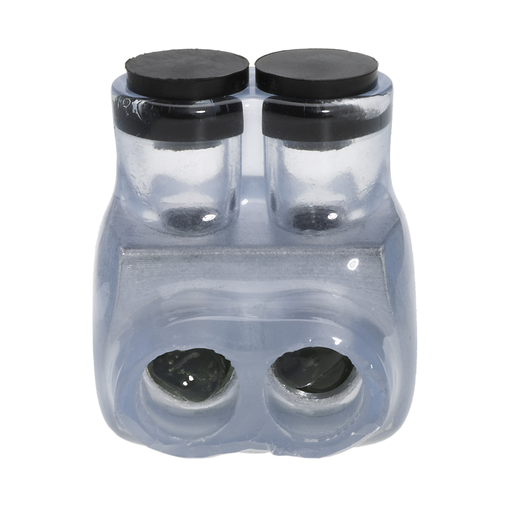

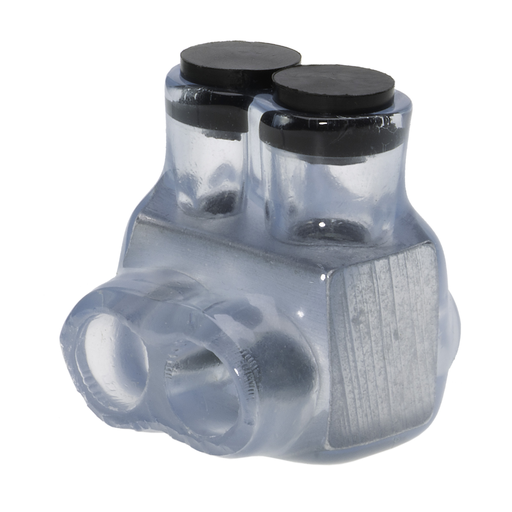

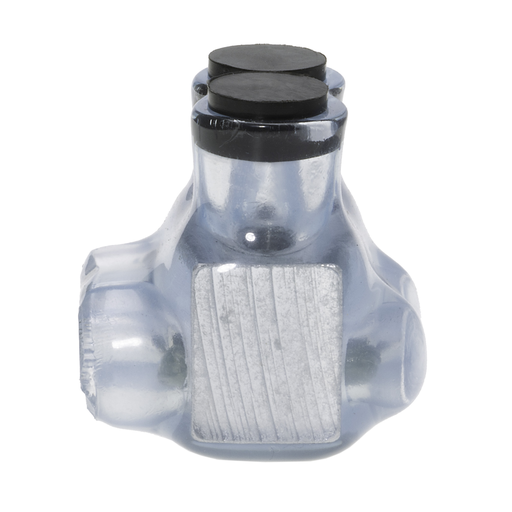

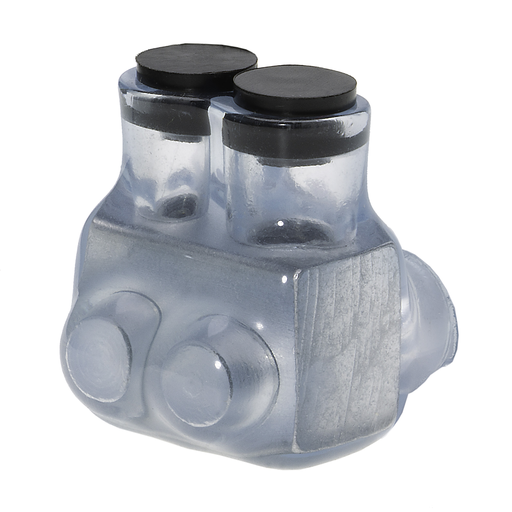

The Polaris IT-4CB Multi-Tap Single-Side Entry Vision Tap Connector features 2 ports sized for 4-14 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Technical Information

Amperage
75 Amp
Applications
Splice
Conductor Type
Aluminum,Copper
Material
Aluminum
Number of Conductors
2
Torque
35 lb-in
Voltage
600 Volt

Manufacturer Information

Brand
Polaris

General Product Info

12-Digit UPC
662381369130
Color
Clear
Finish
Plastisol Insulated
GTiN
00662381369130
Product UPC
66238136913

Dimensions

Height
1.2 Inch
Length
1.4 Inch
Warranty Length
1 yr
Width
1.05 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Clear Exterior - Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
  • Ergonomic Design - Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs - Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
  • Pre-filled Oxide Inhibitor - Both single-side entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Professional Performance - The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
  • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Certifications and Standards
  • cULus
  • UL 486A/B
