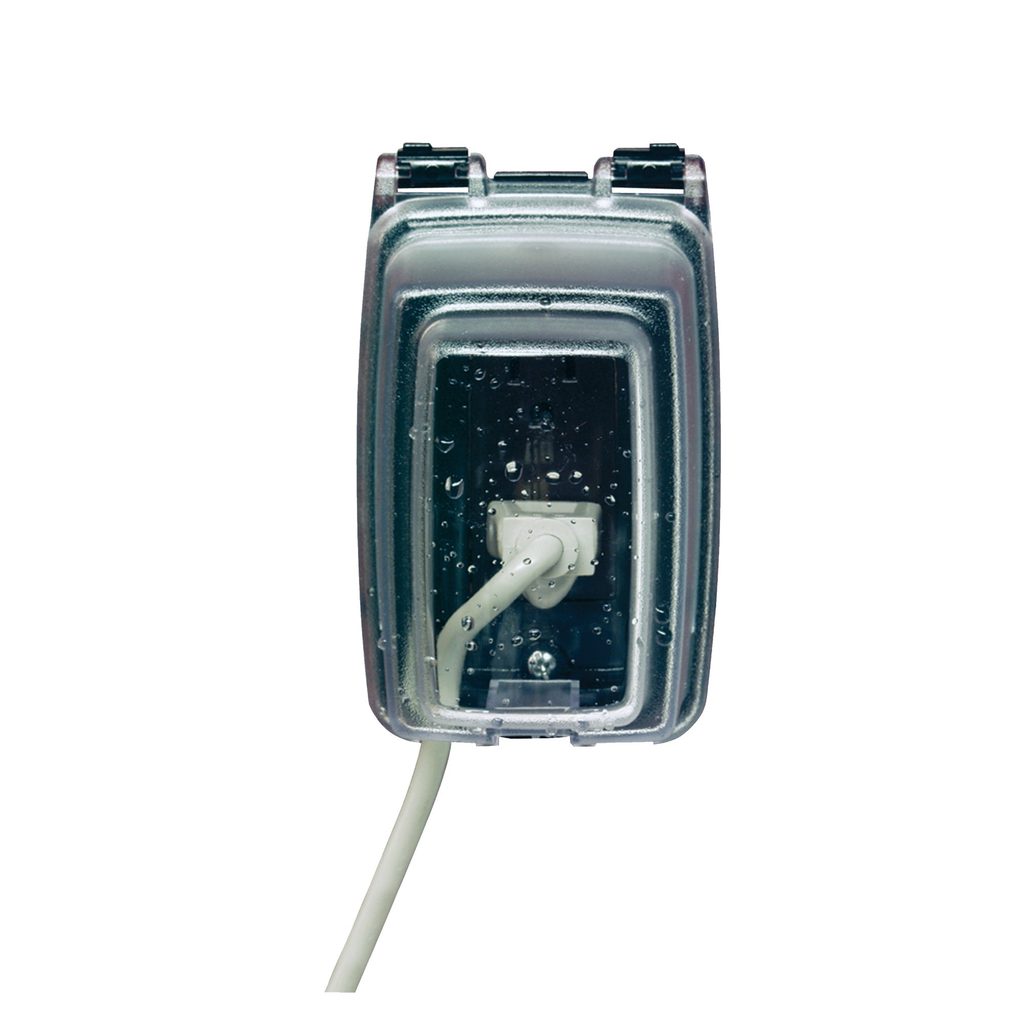

Product image for Intermatic WP1010C 1Gang Vertical Weatherproof In-Use Cover, 3-1/8" Deep - Clear
Image thumbnail 0
Image thumbnail 1
Email

Intermatic WP1010C 1Gang Vertical Weatherproof In-Use Cover, 3-1/8" Deep - Clear

Manufacturer: Intermatic | Catalog # WP1010C | North Coast Part # 235133
$29.22/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
6 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet
The WEATHER COVER SGL (DEEP) . 3-1/8" This Plastic In-Use Covers are easy to install and shipped with gasket, mounting screws, base cover assembly, and patented inserts for serve applications, such as schools and commercial buildings.

Technical Information

Applications
Receptacle Protection
Cable Size
(2) 14 Gauge, (1) 12 Gauge
Gang Type
Single
Insulation Material
Neoprene Gasket
Material
Polycarbonate
Mounting Type
Vertical
Number of Gangs
1 Gang
Number of Module Inserts
3
Number of Outlets
1
Size
3-1/8 DEPTH IN, 79.37 DEPTH MM
Type
Weatherproof Receptacle Cover

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275022522
Color
Clear
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
GTiN
00078275022522
Product UPC
07827502252
Shape
Rectangle

Dimensions

Depth
3-1/8 Inch
Height
5-1/2 Inch
Warranty Length
1 yr
Width
3.8 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Warranty: 1-year limited
  • NA
