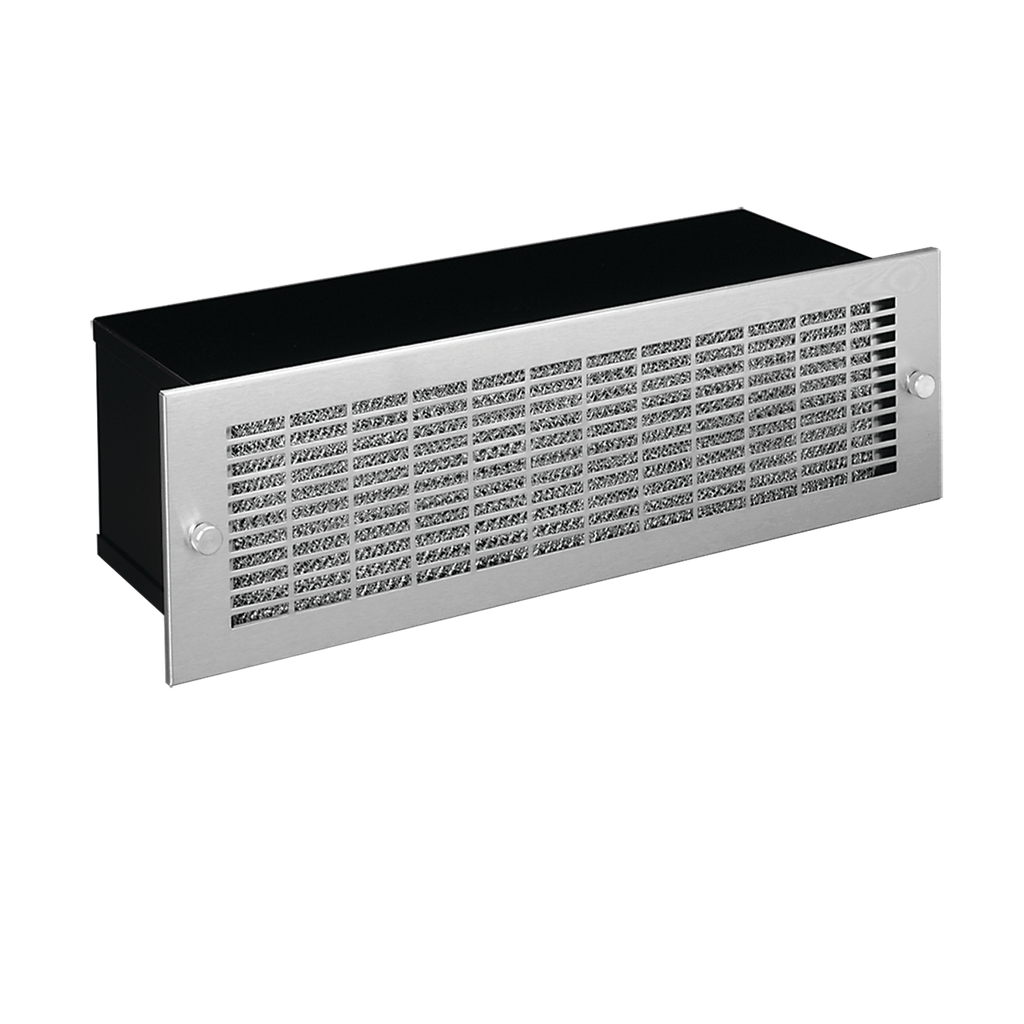

Product image for Hoffman ADB275 Rack-Mountable Fan Package, 115v 50/60Hz
Email

Hoffman ADB275 Rack-Mountable Fan Package, 115v 50/60Hz

Manufacturer: nVent Hoffman | Catalog # ADB275 | North Coast Part # 23806
$1,631.60/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
For enclosure or 19-inch rack applications, the Blower Fan Package provides the maximum amount of cooling air in the least amount of space by utilizing 115 volt AC, 60/50 hertz, single-phase input power.

Technical Information

Airflow Rate
275
Amperage
1.2 Amp
Applications
Controls and Drives; Power Distribution
Material
Stainless Steel
Max Current
1.2 A
Max Temperature
298 degrees F
Motor Type
AC Motor
Size
5.75 x 19 x 7.25 in
Standard
(blower Motor Only),CSA,EIA RS-310-D,File No. E61997,UL Component Recognized
Type
Open-Loop Cooling
Voltage
100 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510222703
Finish
Brushed
GTiN
00783510222703
Product UPC
78351022270
Weight
14 lb

Dimensions

Depth
7-1/4 Inch
Height
10-3/4 Inch
Length
21-1/4 Inch
Thickness
1 mm
Width
19 in
Features
  • Intake grille is easily removed with two captive thumbnuts
  • Washable aluminum filter
  • Single phase motor powers the statically balanced blower
  • Motor is thermally protected and cooled by incoming forced air
  • Direct drive induction motor contains permanently lubricated ball bearings
  • Lubricant protects from -20 F to 298 F (-29 C to 148 C)
  • Rotating components are suspended on neoprene shock-mounts
  • Three-conductor power cord (five feet long)
  • The unit is self-supporting with 16 gauge steel flanges notched per EIA RS-310-D.
  • An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately
  • Grill is 20 gauge stainless steel 304 and the housing is 16 gauge mild steel
