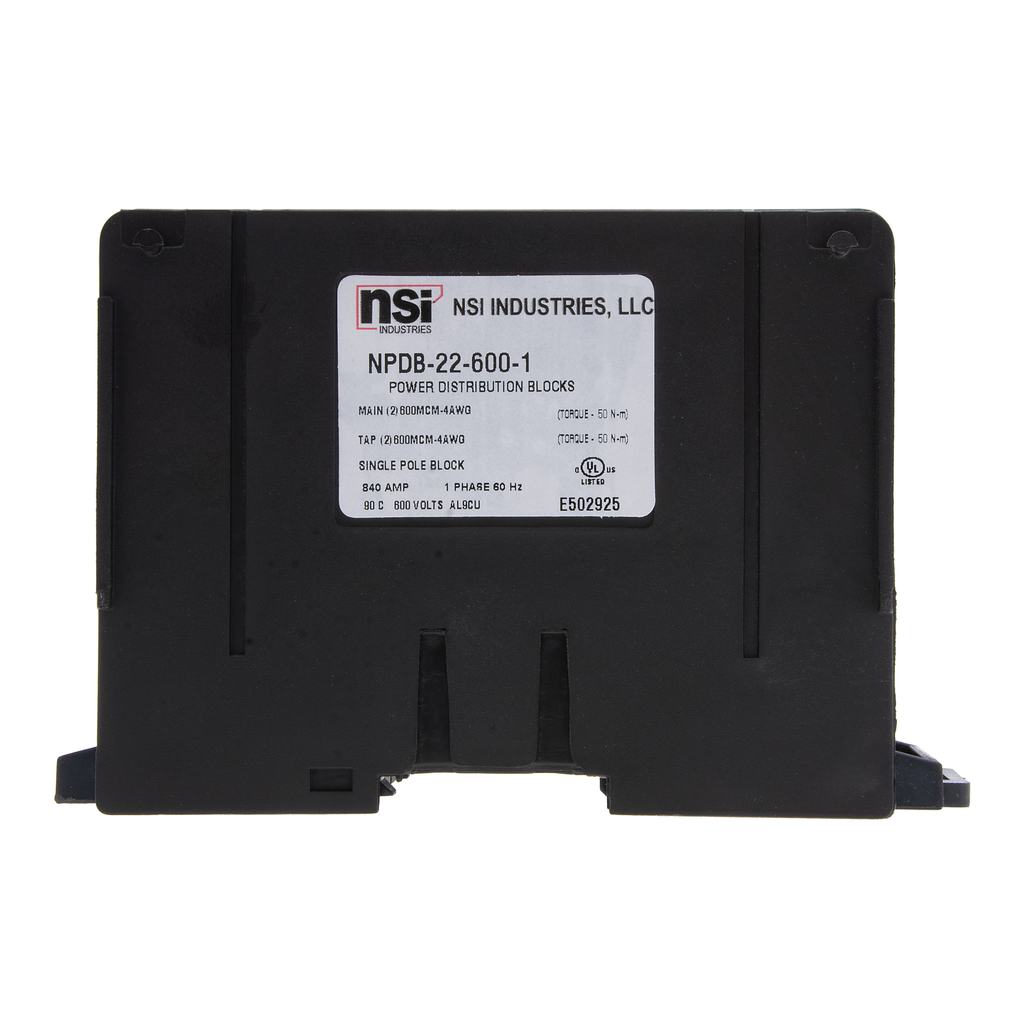

NSI NPDB-22-600-1 NPDB LINE 2X600-4

Manufacturer: NSi Industries | Catalog # NPDB-22-600-1 | North Coast Part # 2390445
$220.51/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

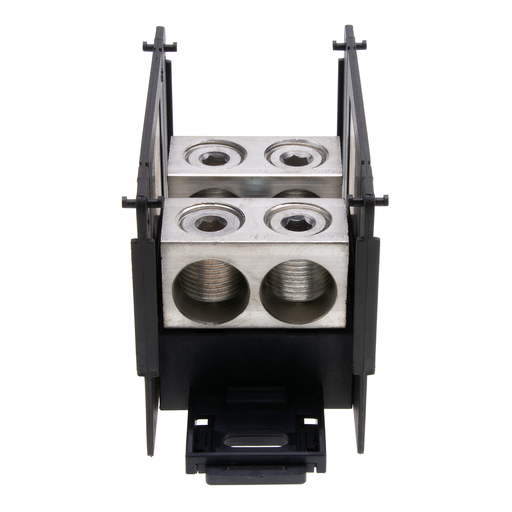

100kA Short Circuit Current Rated Power Distribution Block. 2 x 600 MCM-4 AWG Line, 2 x 600 MCM-4 AWG Load Power Distribution Blocks are made of Valox Nylon 6/6, Finger Safe Lexan 500R Polycarbonate Panels and Covers, high-conductivity 6061-T6 Electro-Tin Plated aluminum alloy connector. Each block can stand alone or combine with other blocks to form a multi-block set, and are also Din Rail Mountable with built in locking mechanism to lock/release.

Technical Information

Amperage
840 Amp
Applications

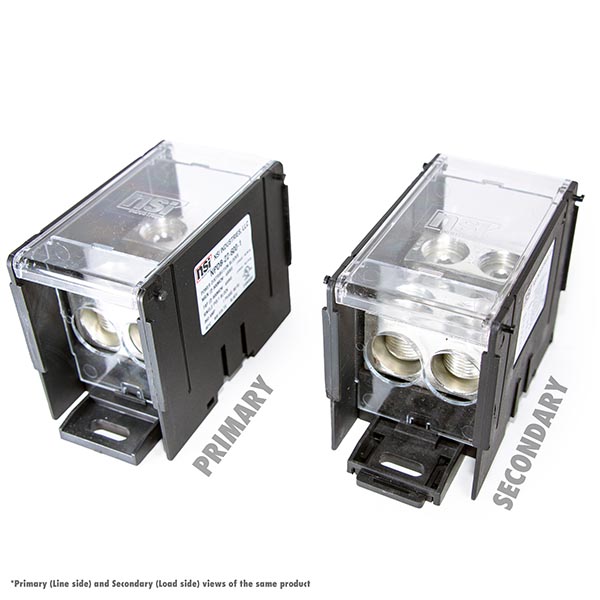

Splicing or Tapping of 1-2 Primary (Line/Main) Conductors to 1-12 Secondary (Load/Tap) Side Conductors
Conductor Size
4 AWG-600 kcmil
Material
Aluminum
Max Temperature
90 degrees C
Operating Temperature
90 degrees C
Size
L=5.800 - W=2.750 - H=3.750 IN
Type
Single Primary (Line), Single Secondary (Load)
Voltage
600 Volt
Wire Size
(2) 600 MCM-4 AWG(LINE)-(2) 600MCM-4 AWG(LOAD)

Manufacturer Information

Brand
NSI Industries
Sub Brand
NPDB Power Distribution Blocks

General Product Info

12-Digit UPC
662381367693
Color
Black,Clear
Finish
Tin Plated
GTiN
00662381367693
Product UPC
66238136769

Dimensions

Height
3-3/4 Inch
Length
5.8 Inch
Warranty Length
1 yr
Width
1.94 in

Certifications and Compliance

Country of Origin
India
Certifications and Standards
  • cULus
  • UL Listed
  • UL 1953, UL 1059
Features
  • Locking Mechanism to lock/release block on DIN rail
  • Modular design allows for insertion on standard 35mm DIN rail or through mounting holes provided
  • Dual-rated AL9CU for use with copper or aluminum conductors
