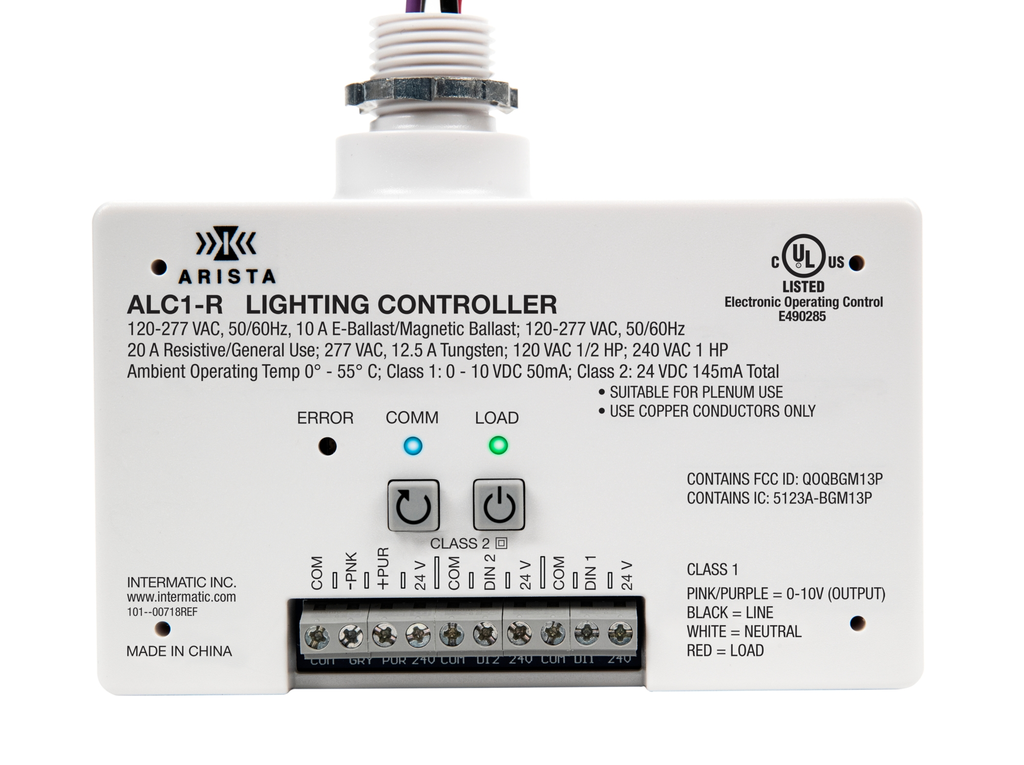

Product image for Intermatic ALC1-R 1-Channel 0-10 V Lighting Controller
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

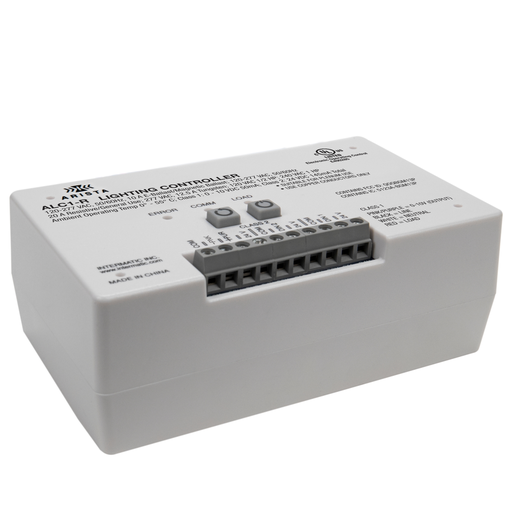

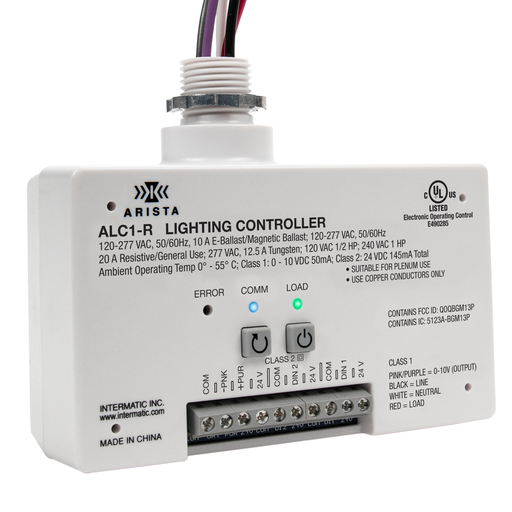

Intermatic ALC1-R 1-Channel 0-10 V Lighting Controller

Manufacturer: Intermatic | Catalog # ALC1-R | North Coast Part # 2391494
*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The ALC1-R lighting controller is a single-channel 0-10 V dimming controller designed to work with ARISTA® Lighting Control System by Intermatic. These units can work with either 0-10 V or 1-10 V lighting fixtures, including LED's. Once installed, the ALC1-R unit(s) can be configured to work off of either scheduling, sensing, or a combination of both, providing maximum energy efficiency as well as occupant comfort. These units can be configured for either wireless or wired communications, and utilize Bluetooth Mesh technologies for wireless communications. Pricing is available upon request.

Technical Information

Applications
Dimming,Indoor Lighting Control,Timing/Scheduling ON/OFF
Max Operating Temperature
131 degrees F
Min Operating Temperature
32 degrees F
Switch Type
SPST

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275150683
Color
White
GTiN
00078275150683
Product UPC
07827515068
Weight
0.65 lb

Dimensions

Depth
1.95 Inch
Height
5.03 Inch
Warranty Length
5 yr
Width
4.19 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead; DEHP
Country of Origin
China
Features
  • Wired or wireless communications.
  • Provides 24 VDC for wired devices.
  • Utilizes a secure bluetooth mesh for connectivity.
  • Built-in real time clock for keeping timing accuracy.
  • Allows for 1 wired analog input.
  • Allows for 2 wired digital inputs.
  • Works with 0-10 V or 1-10 V luminaires.
  • 365-Day scheduling including holidays.
  • Programmable blink warning alert.
  • Programmable light levels.
