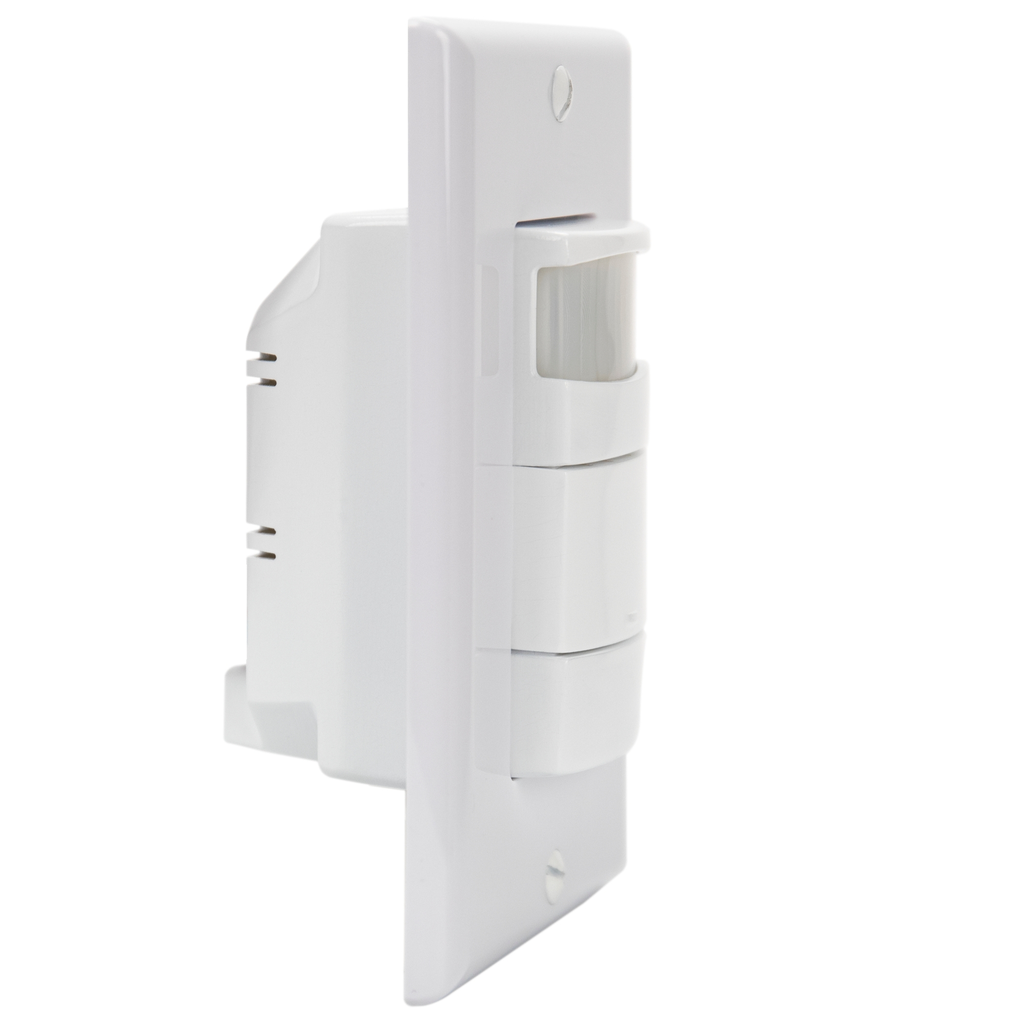

Product image for Intermatic ALC-PI-BT-WH PIR In-Wall Occupancy/Vacancy Sensor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

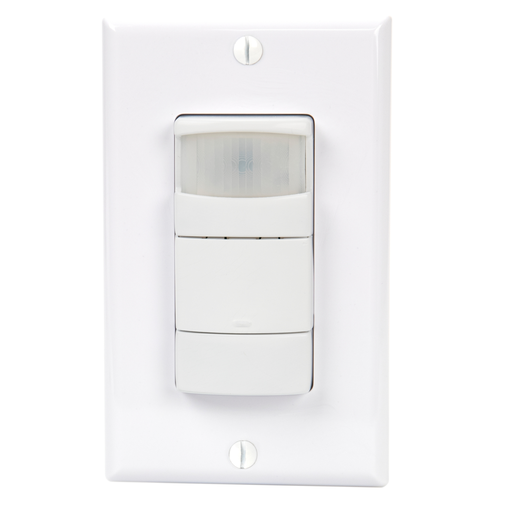

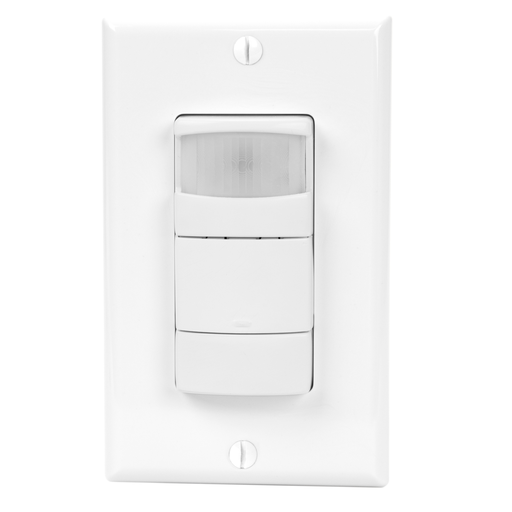

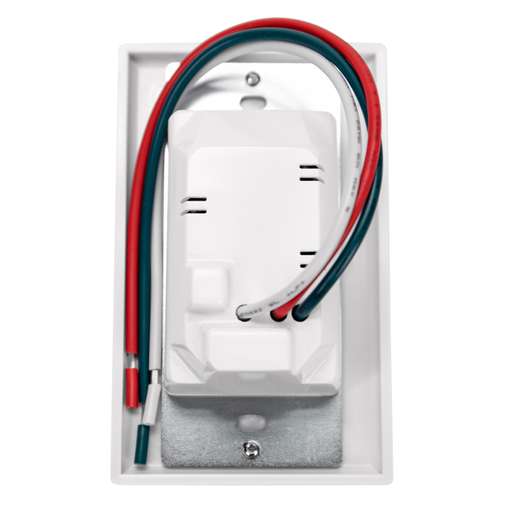

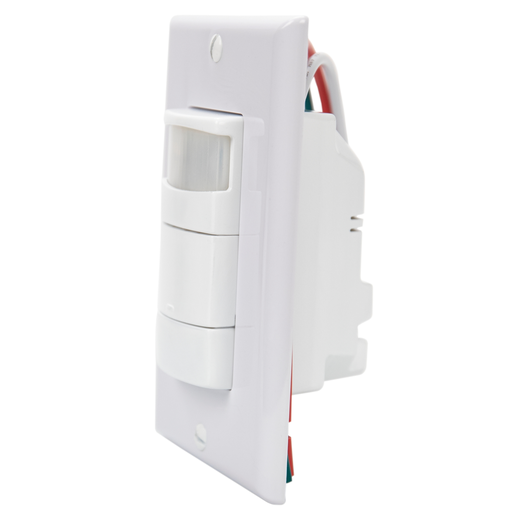

Intermatic ALC-PI-BT-WH PIR In-Wall Occupancy/Vacancy Sensor

Manufacturer: Intermatic | Catalog # ALC-PI-BT-WH | North Coast Part # 2391499

*Call For Price*
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The ALC-PI-BT-WH is an In-wall PIR sensor designed to work with the ARISTA® Lighting Controls System by Intermatic and will control lighting based upon occupancy/vacancy. If space is configured for occupancy and movement is detected, the sensor informs the ARISTA controller(s) in the space and the lights will illuminate. The lights will turn off after the ARISTA sensor(s) deem the space vacant and the timeout period expires. If space is configured for vacancy, the ARISTA controller'(s) in the space will only react when manually activated. The lights will turn off after the ALC-PI-BT-WH deems the space vacant and the timeout period expires. Pricing is available upon request.

Technical Information

Applications
Indoor Lighting Control,Indoor Sensing Control
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275150744
Color
White
GTiN
00078275150744
Product UPC
07827515074
Weight
0.404 lb

Dimensions

Depth
1.67 Inch
Height
2-3/4 Inch
Warranty Length
5 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead; DEHP
Country of Origin
China
Features
  • 120-277 VAC.
  • Wireless communications.
  • Eliminates 3-way and multi-way wiring.
  • Adjustable sensitivity settings.
  • Programmable ON/OFF button.
  • Can be used for occupancy or vacancy applications.
  • LED indicators for easy identification.
  • NA
