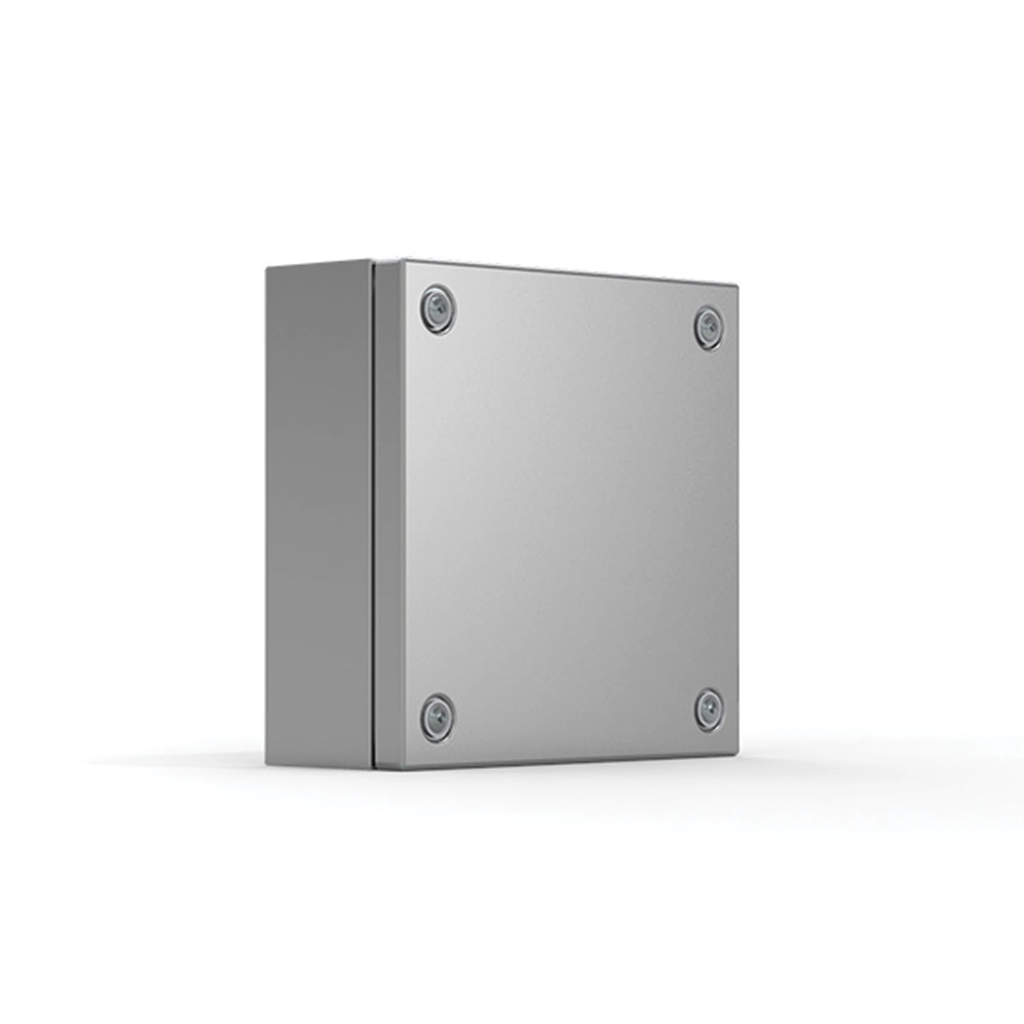

Product image for NVENT HOF SSTB153008 IP66 Term Box
Email

NVENT HOF SSTB153008 IP66 Term Box

Manufacturer: nVent Hoffman | Catalog # SSTB153008 | North Coast Part # 2393397
$475.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Terminal Boxs, are well suited for indoor and outdoor environments providing corrosion resistance. This Terminal Box, Stainless Steel, SSTB153008 item measures SSTB inches with a material of 5.91x11.81x3.15, Stainless 304.

Technical Information

Applications
Factory Automation and Process Control; Corrosive Environments; Hazardous Environments
Body Thickness
1 mm
Cable Entry
No
Material
Stainless Steel
Number of Outlets
1
Size
5.91 x 11.81 x 3.15 inch
Type
Stainless Steel Industrial Terminal and Junction Boxes

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510528928
Color
Unpainted
Construction
Body: 18 gauge Door: 16 gauge
Finish
Brushed
GTiN
00783510528928
Product UPC
78351052892
Weight
4.1 lb

Dimensions

Depth
3.15 Inch
Height
3.77 Inch
Length
12.19 Inch
Width
11.81 in
Features
  • Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm.
  • Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
  • Gasket: Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket.
  • Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
  • Protection: IP 66 | TYPE 4X, 12 | IK 08.
  • Finish: 400 pre-grained stainless steel.
  • Delivery: Body, cover, cover screws, fixing screws, cover plugs and earthing facilities.
