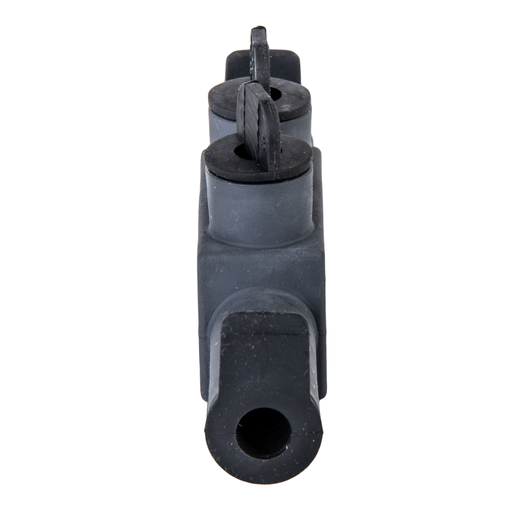

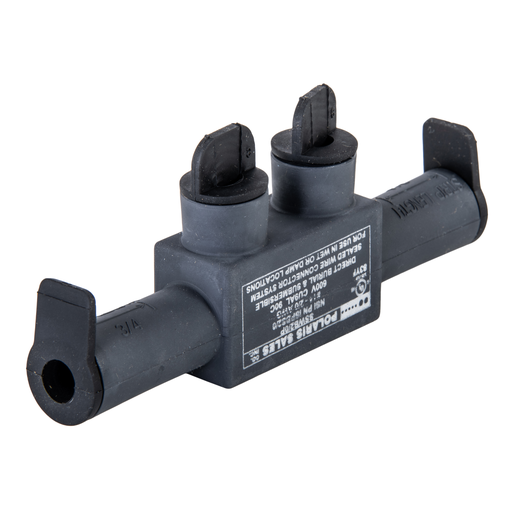

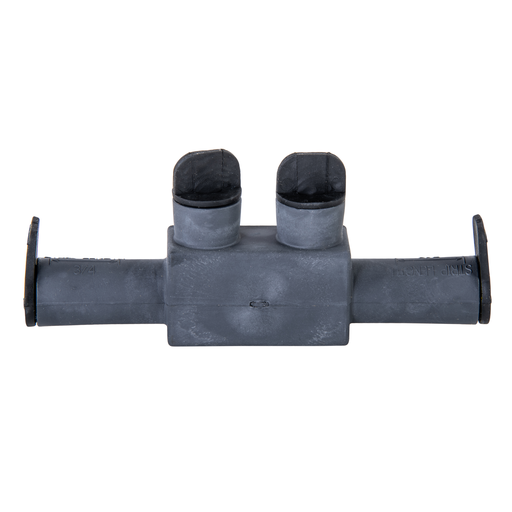

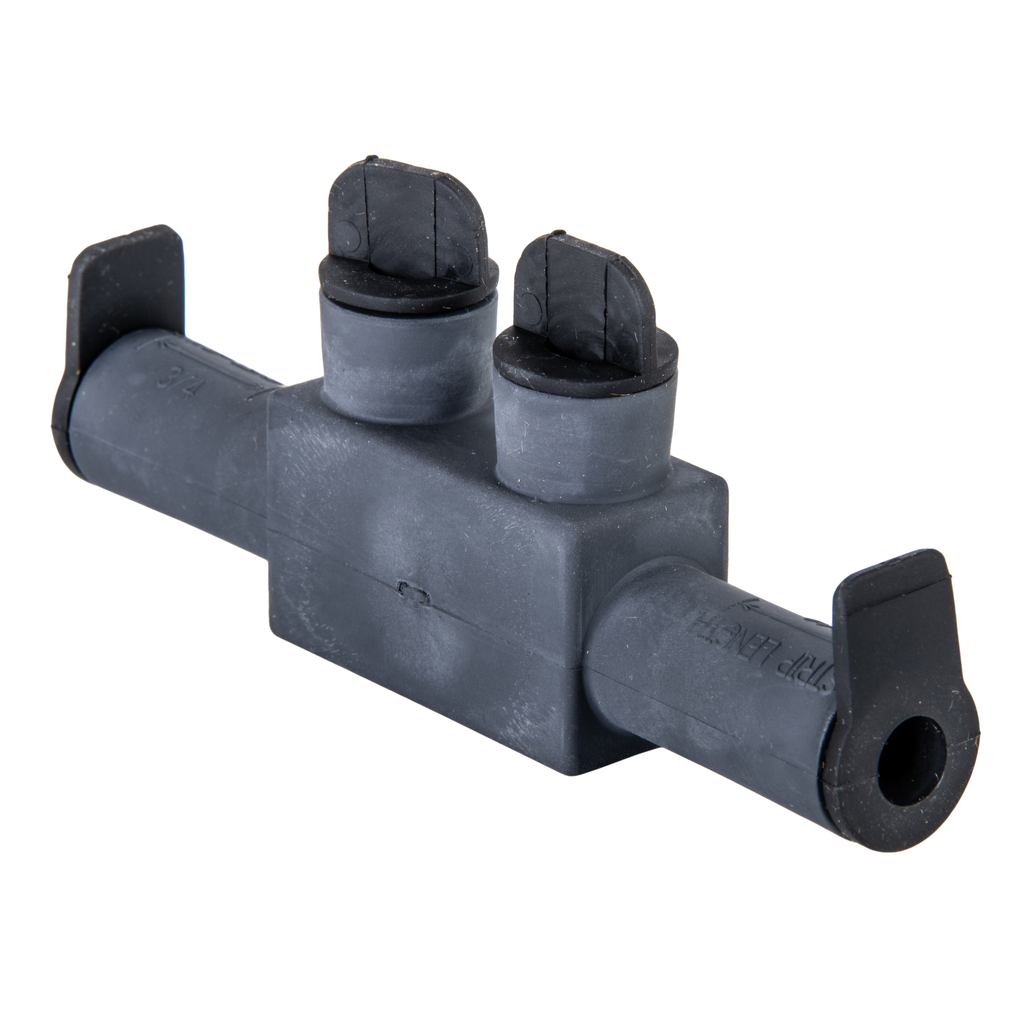

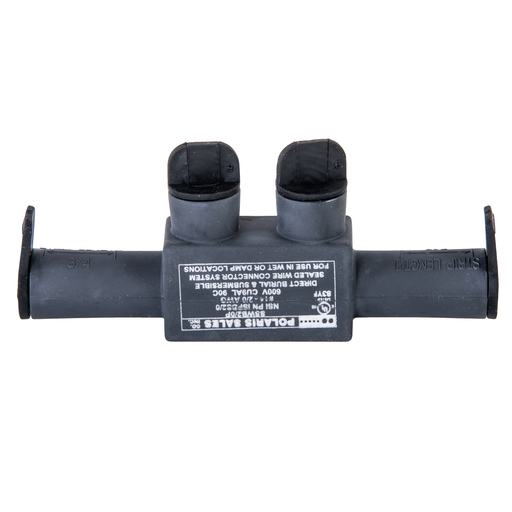

Product image for NSI ISPBS2/0B POLARIS EDGE Conn 2/0
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

NSI ISPBS2/0B POLARIS EDGE Conn 2/0

Manufacturer: NSi Industries | Catalog # ISPBS2/0B | North Coast Part # 2395945

$87.14/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
The Polaris ISPBS2/0B Multi-Tap Direct Burial Submersible In-Line Port Connector features 2 in-line ports sized for 2/0 - 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of high-dielectric strength rubber insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the radial-tipped set screws. Installs with a hex key and torque wrench, without any tape or additional supplies. Meets or exceeds UL486D and ANSI C119.1 specifications for use in wet or damp locations and designed for use in a wide range of temporary submersal or burial splicing applications.

Technical Information

Applications
Terminate Stranded Wire into European/Metric-Style Terminal Blocks
Material
Rubber
Number of Conductors
2
Number of Poles
1 Pole
Size
L=.880 - W=5.05 - H=2.10 IN
Standard
CULus
Temperature Rating
90 degrees C
Type
Submersible Pedestal Connectors
Voltage
600 Volt
Wire Size
14-00 AWG
Wire Type
Class B & C

Manufacturer Information

Brand
Polaris
Sub Brand
Polaris EDGE

General Product Info

12-Digit UPC
662381800626
Color
Black
Environmental Conditions
< 90% Non-Condensing Relative Humidity
Finish
EPDM Rubber Insulated
GTiN
00662381800626
Product UPC
66238180062
Weight
2.1 lb

Dimensions

Height
2.1 Inch
Length
5.05 Inch
Warranty Length
1 yr
Width
0.88 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Additional Notes
  • Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded, flexible cables
Certifications and Standards
  • cULus
  • UL 486D
