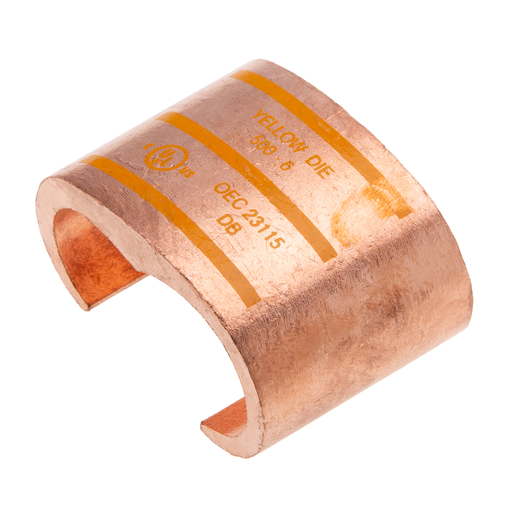

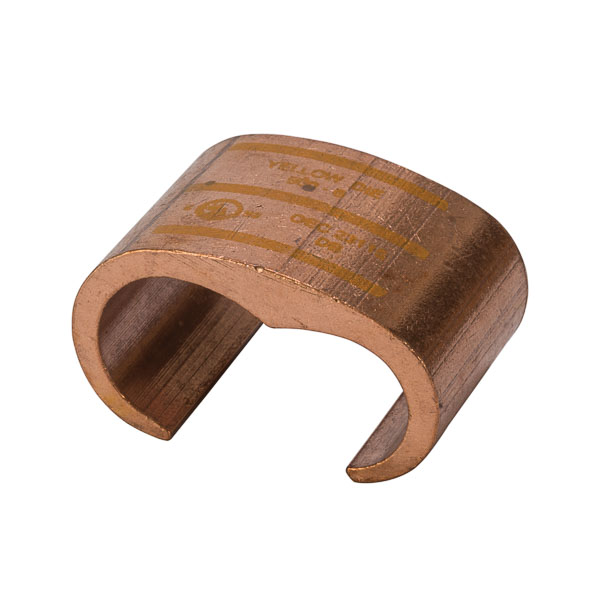

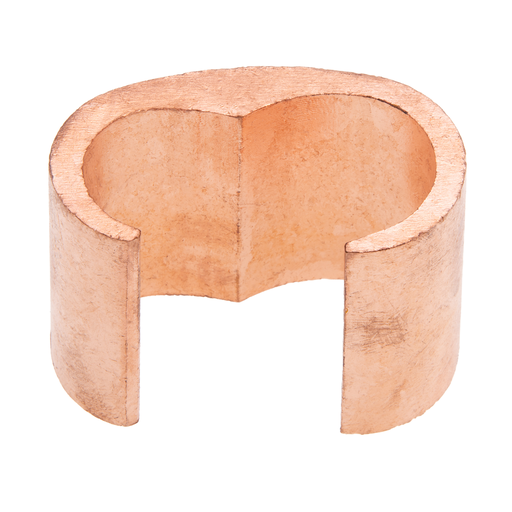

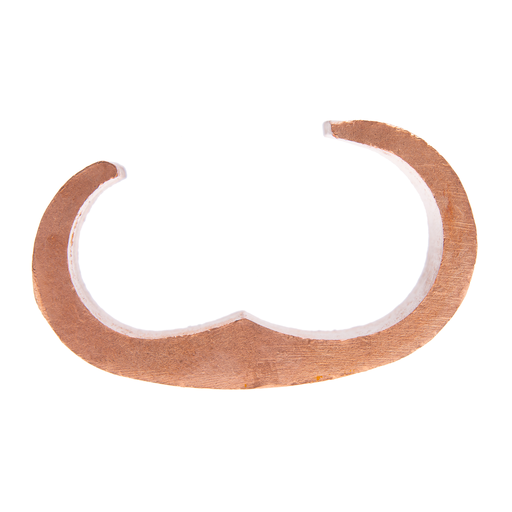

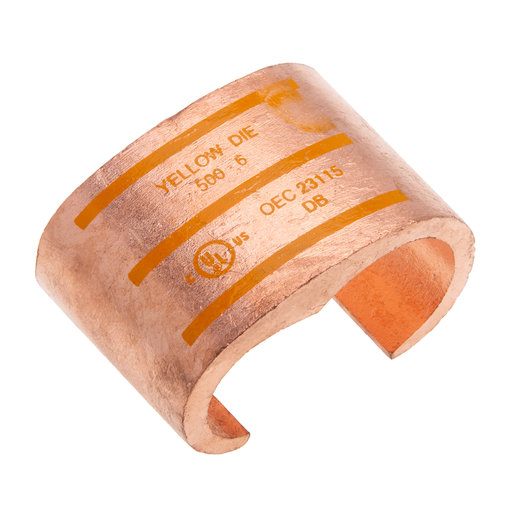

NSI CTH-115 Copper C Tap 500-250 Ma

Manufacturer: NSi Industries | Catalog # CTH-115 | North Coast Part # 2398034
$155.95/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Heavy Duty Copper C Tap Grounding Connector for 500 to 250 MCM APPLICATIONS: Copper "C" Taps ensure positive, all-around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
500 kcmil
Material
Copper
Max Temperature
194 degrees F
Size
500 MCM-6 AWG
Standard
UL486
Tap Size
6 AWG
Temperature Rating
90 degrees C
Type
C-Taps
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381098146
Color
Yellow
Environmental Conditions
90 degrees C
Finish
Copper
GTiN
00662381098146
Product UPC
66238109814

Dimensions

Length
47.6 mm
Warranty Length
1 yr
Width
28.25 mm

Certifications and Compliance

Country of Origin
Mexico
Additional Notes
  • FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 88
Features
  • These taps ensure positive, all-around compression with low resistance and high pull-out values
  • Made of high conductivity copper, they satisfy the requirements of NEC250 for connecting to the grounding electrode system
  • Rated for 600V applications
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A, UL 467
