Product image for NVENT HOF P2K2088T3R PKG 2000x800x8
Email

NVENT HOF P2K2088T3R PKG 2000x800x8

Manufacturer: nVent Hoffman | Catalog # P2K2088T3R | North Coast Part # 2402949
$3,196.23/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure

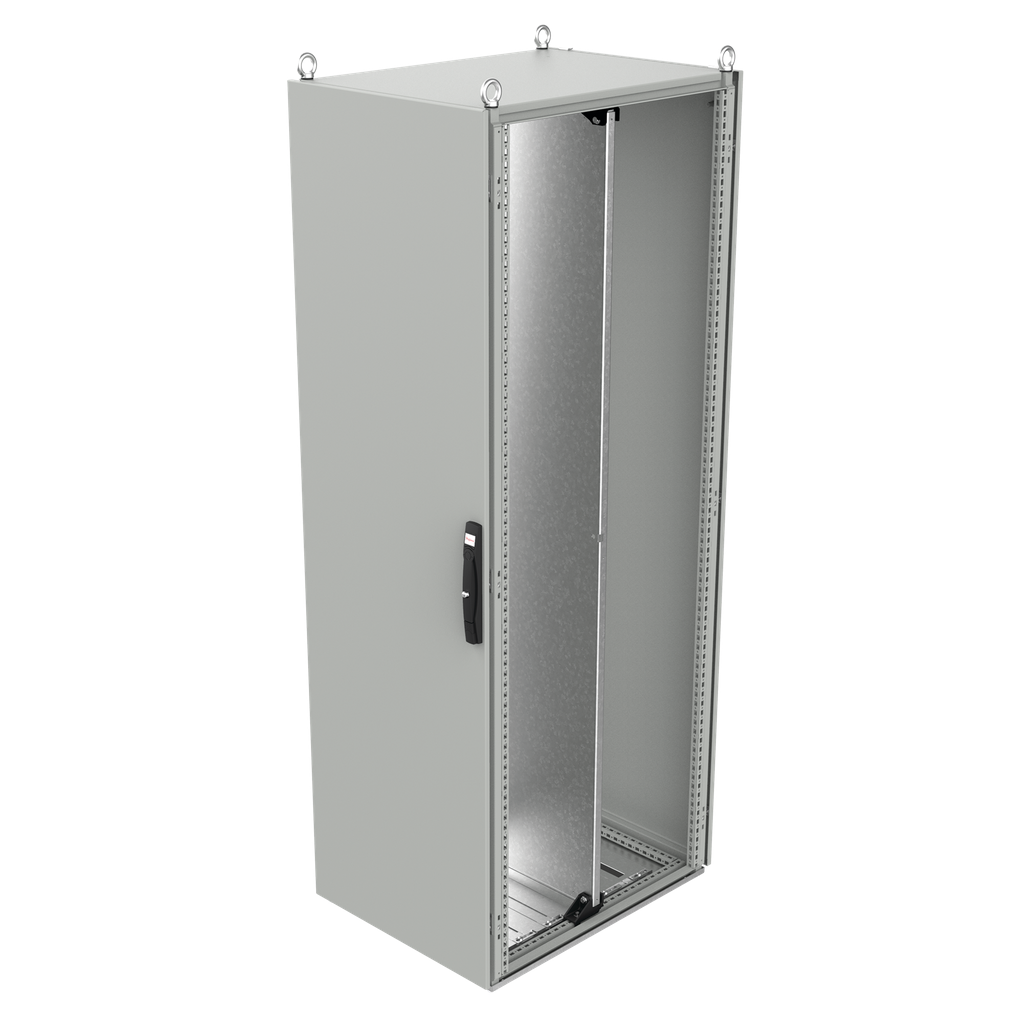

ProLine G2 Industrial Packages are ready-to-use solutions in Type 3R environments. This ProLine G2 Industrial Packages Type 3R, P2K2088T3R item measures 2000x800x800mm with a material of Steel colored Lt Gray.

Technical Information

Color Coding
RAL 7035
Material
Steel
Number of Doors
1
Rack Unit
42
Standard
CSA File Number 42186; Type 3R, 12,CUL Listed Per CSA C22.2 No. 94; Type 3R, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3R, 12,UL 508A Listed 508; Type 3R, 12; File Number E61997

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510361938
Color
Gray
Finish
Powder Coated
GTiN
00783510361938
Product UPC
78351036193
Weight
273.84 lb

Dimensions

Depth
31.69 Inch
Height
78.82 Inch
Length
37-1/2 Inch
Width
31.8 in
Features
  • 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
  • Consistent with Type-12 Industrial Packages, fasteners/brackets material upgraded to limit oxidation
  • Smooth glide latching system on door for a solid seal with a low closure force
  • Galvanized Duro-Stand gland plate base
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • Seamless Polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants
  • Door bar system and two grounding studs present
  • Single/primary door includes 3-point roller latch system with timed latch engagement
  • 2-door enclosures include overlapping double doors to provide full-width open front; secondary door latches with two levers
  • Reversible hinging on single doors (default left hinge) and overlapping double doors (default right door primary)
  • Padlocking Flush Swing Handle standard, other options available
  • Mounting Subpanel includes EZ-Load Mounting Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
  • Subpanel is securely fastened to the top and bottom of the frame; enclosures narrower than 1200 mm use 4 sets of EZ-Load Glide Blocks, while enclosures equal to or wider than 1200 mm use 8 sets of glide blocks for a well secured subpanel
  • Subpanel is depth adjustable, back-to-back subpanel configuration possible with purchase of second subpanel (sold separately)
  • Galvanized, full-height subpanel supplied standard, white painted subpanel available (sold separately)
