Product image for NVENT HOF P2DPO2012 OVERLAPPING PER
Email

NVENT HOF P2DPO2012 OVERLAPPING PER

Manufacturer: nVent Hoffman | Catalog # P2DPO2012 | North Coast Part # 2402956
$2,416.10/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

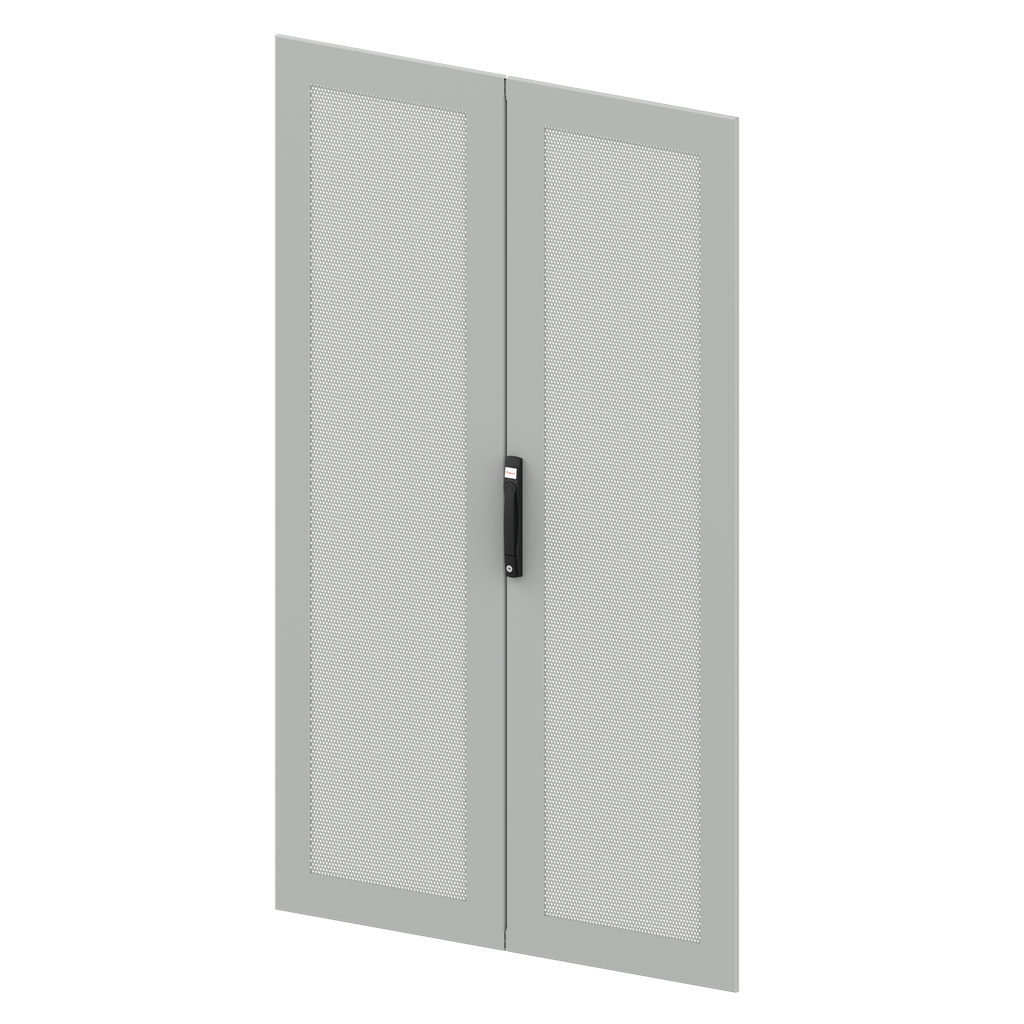

ProLine G2 Perforated Doors (Single or Overlapping Double) can be used on the front or rear of a G2 enclosure to provide ventilation for cooling internal components. The Smooth Glide latching system is made from quality components and incorporates an innovative timed latch action ensuring a solid door seal with low closure force.

Technical Information

Color Coding
RAL 7035
Material
Steel

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510361464
Color
Gray
Finish
Powder Coated
GTiN
00783510361464
Product UPC
78351036146
Weight
48.39 lb

Dimensions

Height
6.3 Inch
Length
80.12 Inch
Thickness
1.9 mm
Width
26.38 in
Features
  • Smooth Glide latching system for a smooth, reliable and repeatable door close over enclosure lifetime
  • Flush Swing Handle with key lock; other options available
  • Seamless Polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants that could enter at the frame/door junction
  • Standard door bar system on all perforated doors for easy accessory attachment
  • Timed, 3-point latch engagement to ensure top and bottom of door catch reliably
  • Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding
  • Single doors can be hinged left or right (default left); overlapping double doors can have the primary door as the left or right (default right)
  • 140-degree hinging standard (180-degree hinge option available)
  • Two grounding studs
  • All mounting hardware included
  • Overlapping Double Doors Additional Specifications: Primary door with Smooth Glide latching system; secondary door has two latch points with a center lever to ensure secure door closure
