NVENT HOF E4WR19FM45U 4Post LAN Rac

Manufacturer: nVent Hoffman | Catalog # E4WR19FM45U | North Coast Part # 2403112
$1,387.47/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

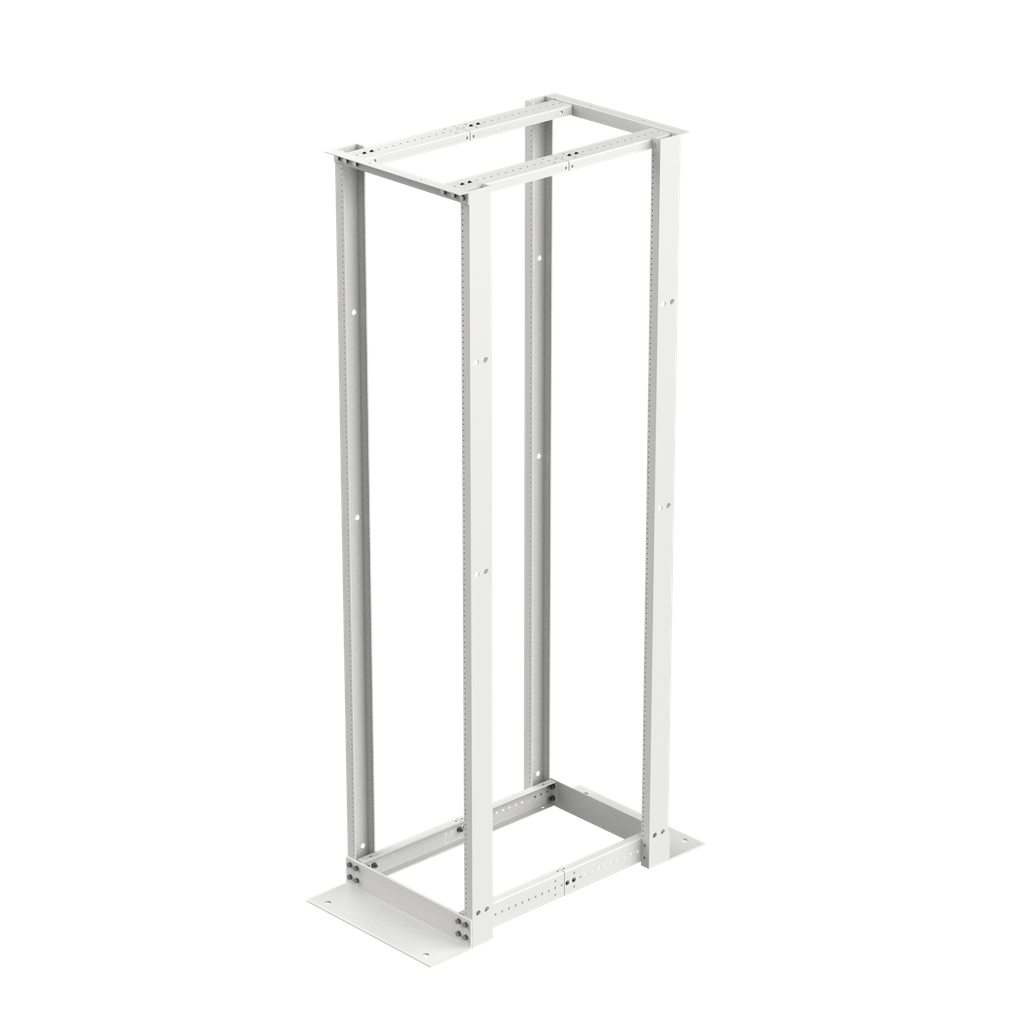

Open frame 4-post racks designed to house DataCom/TeleCom equipment with added mounting security. This 4-Post Open Frame Rack 45U Square, E4WR19FM45U item measures 84.00x20.25 inches with a material of Aluminum colored White.

Technical Information

Applications
Networking, Storage and Data Center
Color Coding
RAL 9003
Material
Aluminum
Rack Unit
45
Standard
CUL Listed Per CSA C22.2 No. 182.4; File No. E230874,EIA 310-D,UL 2416 Listed; File No. E230874
Type
Non-Reversing

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510361112
Color
White
Finish
Powder Coated
GTiN
00783510361112
Product UPC
78351036111
Weight
67 lb

Dimensions

Height
4-1/2 Inch
Length
85 Inch
Thickness
3.5 mm
Width
20.25 in
Features
  • Depth adjustable 450 mm to 1050 mm (17.7 inch to 41.3 inch) in 25-mm (.98-inch) increments
  • EIA universal 5/8 - 5/8 - 1/2 inch spaced 12-24 tapped holes or .375-inch square holes fit 19-inch rack equipment
  • Compatible with 19-in. rack accessories
  • Available with nominal frame height of 6, 7 and 8 feet
  • RU markings on both front and back of tapped-hole uprights make it easier to mount equipment
  • Floor mounting holes predrilled at .750-inch diameter
  • 12-24 rack mounting screws (pkg. of 20) included with tapped-hole model
  • For square hole model, order screws and cage nuts separately
  • Can be ganged with both 2- and 4-Post Open Frame racks
  • Includes complete assembly instructions
  • Shipped unassembled for convenient transport to job site
  • Uprights on the tapped-hole model are made of lightweight extruded aluminum (6063-T6 alloy) and include RU markings on both front and back of uprights
  • Uprights on the square-hole model are made from 12 gauge steel
  • Top and bottom angles made of extruded aluminum (6063-T6 alloy)
