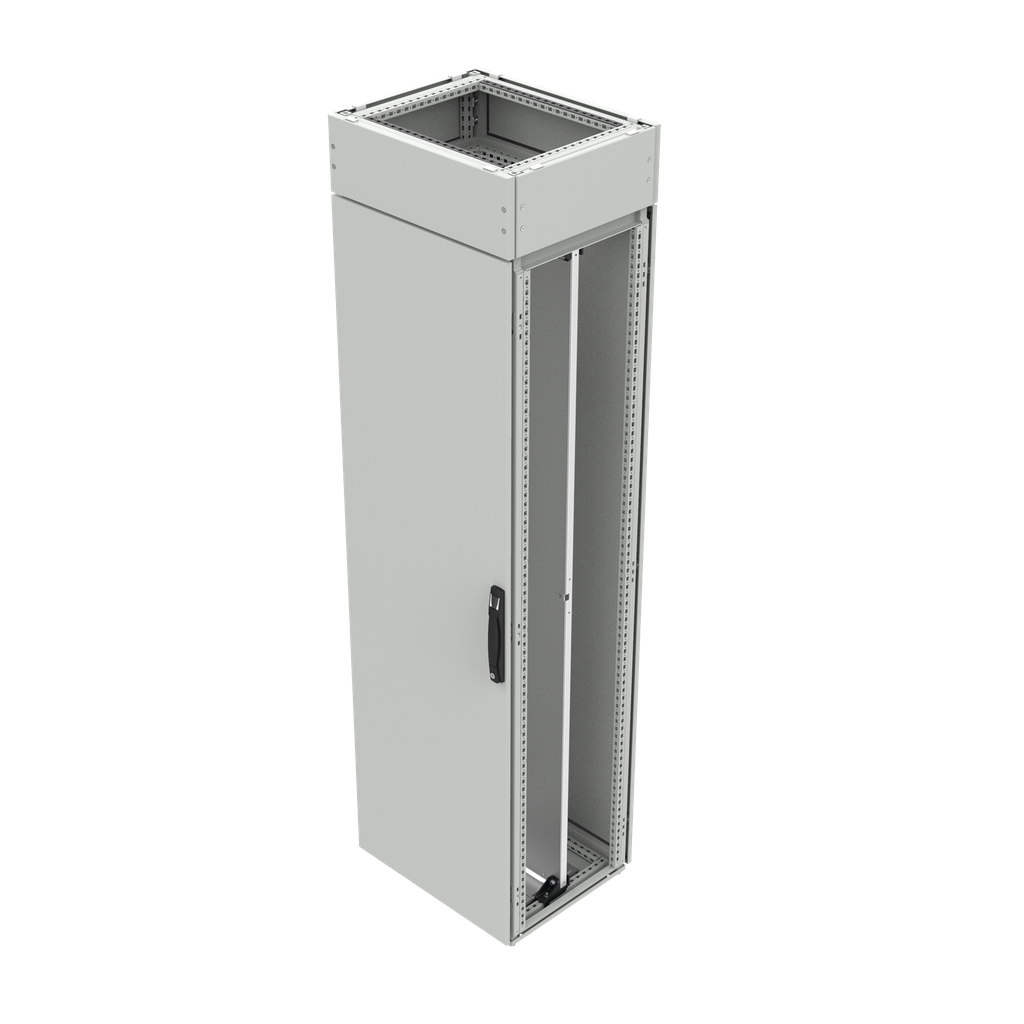

Product image for Hoffman P2TMM266 ProLine G2 Top Mounting Module, Height 200mm, Single-Bay, Fits 600x600, Painted
Email

Hoffman P2TMM266 ProLine G2 Top Mounting Module, Height 200mm, Single-Bay, Fits 600x600, Painted

Manufacturer: nVent Hoffman | Catalog # P2TMM266 | North Coast Part # 2403431
$2,137.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Top Mounting Module installs to the top of an enclosure providing space for cable management, and facilitating cable passage into the enclosure from above. The module is constructed from a mini ProLine frame, and as such is joinable to accommodate multi-bay solutions. Removable covers are supplied with the module for sealing purposes, while the standard Solid Top (sold separately or included with Industrial Package) is used to enclose the solution as it is mounted to the top of the module.

Technical Information

Color Coding
RAL 7035
Material
Steel

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510363857
Color
Gray RAL 7035
Finish
Powder Coated
GTiN
00783510363857
Product UPC
78351036385
Weight
42.15 lb

Dimensions

Height
7.87 Inch
Length
23.62 Inch
Thickness
1.5 mm
Width
23.62 in
Features
  • Solution includes frame, width and depth mounted covers, gaskets for sealing junction between top of frame and module, and all installation hardware to secure to the top of a G2 frame
  • Solid Top sold separately, but also included with standard Industrial Package
  • 200mm and 300mm heights available
  • Includes single ground stud per cover
