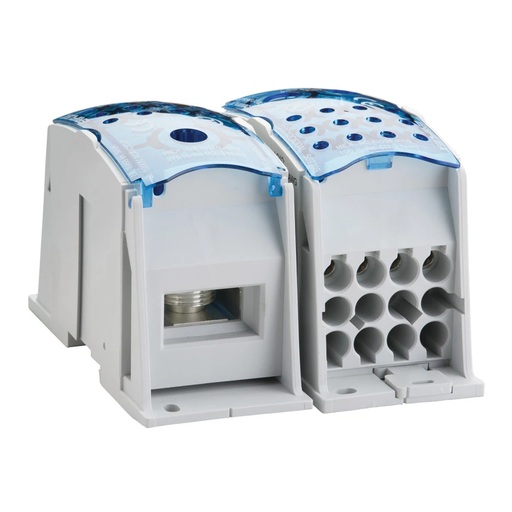

Erico 569206 Single Pole Dist. Block, 500 A UL/CSA, Flat Cond. Line, 12 Cables Load, Aluminum

Manufacturer: Cadweld | Catalog # 569206 | North Coast Part # 2403538
$263.74/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution. Single Pole Dist. Block UDF12C500AL, Aluminum.

Technical Information

Amperage
500 Amp; 500 Amp
Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Enclosure Rating
IP20
Material
Aluminum
Number of Conductors
12
Number of Poles
1 Pole
Size
5x3.07x1.72
Temperature Rating
185 degrees F
Type
Compact, Short-Circuit-Proof, Internally Fused, 1-Phase
Voltage
1,000 VAC, 1,500 VDC; 1,000 VAC/DC

Manufacturer Information

Brand
nVent Erico
Sub Brand
Eriflex®

General Product Info

12-Digit UPC
782856975403
Color
Blue/White
Environmental Conditions
86 To 167 Deg F
Finish
Tin Plated
GTiN
00782856975403
Product UPC
78285697540
Weight
0.36 kg

Dimensions

Height
3.07-3.07
Features
  • Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
  • Screw retaining cover is hinged and removable
  • Design allows for visual inspection of conductor and confirmation of connection
  • Modular snap-together blocks for building multi-pole power blocks
  • Easily clips onto DIN rail or mounts to panel with screws
  • 95% fill ratio
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free
Certifications
  • UL UL 1953
  • EN 45545 EN 45545-2:2013
  • UKCA, ERIFLEX UD EN 60947-7-1
