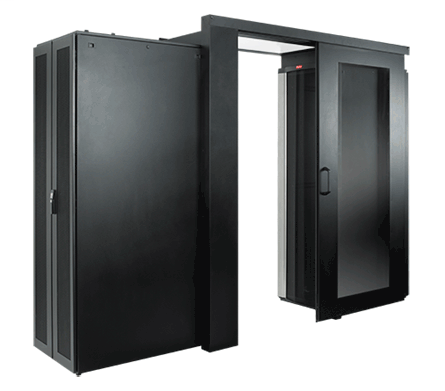

Product image for NVENT HOF PCAD2 Containment Aisle D
Email

NVENT HOF PCAD2 Containment Aisle D

Manufacturer: nVent Hoffman | Catalog # PCAD2 | North Coast Part # 2403659
$4,804.21/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The ProLine™ Containment System prevents hot and cold airflows from mixing. The system increases cooling efficiency, lowers energy costs, allows for higher thermal density with in the cabinet and eliminates the need to buy additional cooling units. Use for either hot or cold air containment and on raised and non-raised floors. The ProLine Containment System is easy to order and to install. Customize your Containment System by purchasing the Aisle Doors, Ceiling Panels with Windows, Chimney and Ceiling Panels for Chimney separately.

Technical Information

Applications
The PROLINE™ Containment System prevents hot and cold airflows from mixing. The system increases cooling efficiency, lowers energy costs, allows for higher thermal density with in the cabinet and eliminates the need to buy additional cooling units. Use fo
Material
Steel
Size
82.68x54.50x2.25 in
Type
PROLINE™ Containment System

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Proline

General Product Info

12-Digit UPC
783510198725
Color
Black
GTiN
00783510198725
Product UPC
78351019872

Dimensions

Depth
3.68 Inch
Height
85.63 Inch
Width
85.63 in
Features
  • Aisle Doors: Composite construction of 16, 14 and 12 gauge steel. Aluminum track and steel trolley with composite wheels. Safety glass door is mechanically fastened to steel frame Window Ceiling Panels: Frame made of 16 gauge steel, Overhead panel made of .22-in. polycarbonate Chimney Ceiling Panels. Frame made of 16 gauge steel. Purchase Chimney separately Chimney. Made of 18 gauge steel; Two sizes to fit various ceiling heights; Infinite adjustment between minimum and maximum extension; Bulb gasket seals against flat surfaces and ceilings; S-connectors provided for duct work connection; Purchase Chimney Ceiling Panel separately
  • The ProLine Containment System prevents hot and cold airflows from mixing. The system increases cooling efficiency, lowers energy costs, allows for higher thermal density with in the cabinet and eliminates the need to buy additional cooling units. Use for either hot or cold air containment and on raised and non-raised floors. The ProLine Containment System is easy to order and to install. Customize your Containment System by purchasing the Aisle Doors, Ceiling Panels with Windows, Chimney and Ceiling Panels for Chimney separately.
  • Prepared surface coated in polyester powder low-gloss, lightly textured RAL 9005 black
  • Aisle door slides to the right to provide quick access to aisle way; Easy to order; Accommodates 36-in. (OSHA minimum aisle widths) and 48-in. (two-floor-tile-wide) aisle ways; Ergonomically positioned grab handles on interior and exterior of contained aisle; Clear, transparent door and roof panels provide maximum light to aisleway; Tool-less Ceiling Panels are easy to install and remove for cleaning and provide above-the-cabinet access to cables, equipment and systems; Window Ceiling Panels have easily modified .22-in. polycarbonate panels to accommodate local fire-suppression codes (sprinkler heads); Chimney Ceiling Panels are used with chimney to direct hot exhaust air into drop ceiling, duct work or other means back to the computer room cooling devices; Chimney comes in two heights to fit a wide range of applications
