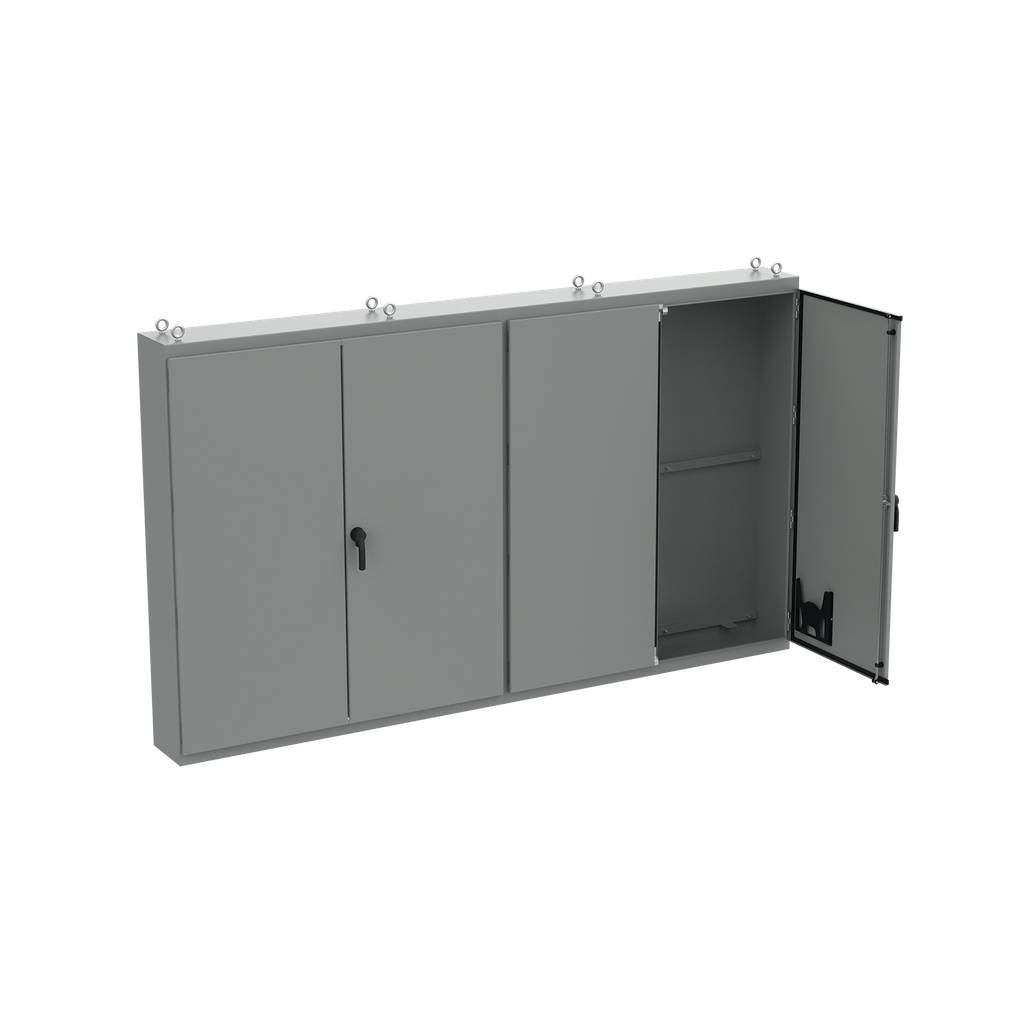

Product image for Hoffman A86M4ELPG Free-Stand Multi-Door Type 12 LP Gray Inside 4Dr, 86.12x149.19x14.12, Gray, Steel
Email

Hoffman A86M4ELPG Free-Stand Multi-Door Type 12 LP Gray Inside 4Dr, 86.12x149.19x14.12, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A86M4ELPG | North Coast Part # 2403771
$18,008.05/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Enclosures are available with three, four or five doors for housing larger control systems in industrial environments where mechanical interlock is required

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
ANSI 61
Material
Steel
Number of Doors
4
Size
86.12x149.19x14.12 in
Standard
CSA, File No. 42186, Type 12,CUL Listed Per CSA C22.2 No 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Type
Mild Steel Freestanding Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510264321
Color
Gray
Finish
Powder Coated
GTiN
00783510264321
Product UPC
78351026432
Weight
1,651 lb

Dimensions

Depth
14.12 Inch
Height
86.12 Inch
Length
160 Inch
Thickness
3.04 mm
Width
149.19 in
Features
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Heavy steel back stiffeners maintain flatness and increase rigidity
  • Heavy-duty lifting eyes anchored into reinforced top
  • Overlapping, gasketed openings on two-door centerposts
  • At two-door openings, gasketed overlapping doors eliminate need for centerposts
  • Three-point latches operated by padlocking handle
  • Concealed, easy-to-remove hinges
  • Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
  • Large data pocket is high-impact thermoplastic
  • Oil-resistant door gasket
  • Panel mounting studs
  • Bonding provision on doors
  • Provisions for mounting fluorescent lights
