Caddy 454004 Caddy Superfix 454 Standard Duty, 0.827"-0.906" OD, 1/2" Pipe, 3/4" Copper Tube

Manufacturer: Cadweld | Catalog # 454004 | North Coast Part # 2404681
$1,059.03/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
nVent CADDY Superfix 454 Standard Duty, 0.827".0.906" OD, 1/2" Pipe, 3/4" Copper Tube

Technical Information

Applications
HVAC, Plumbing and Refrigeration
Material
Steel
Operating Temperature
-58 To 230 degrees F
Pipe Size
1/2 in
Standard
None
Type
CADDY SUPERFIX 454 Standard Duty

Packaging

Standard Packaging Qty
100 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856590460
Finish
Electro Galvanized
GTiN
00782856590460
Product UPC
78285659046
Weight
0.06 kg

Dimensions

Outer Diameter
0.827 in
Features

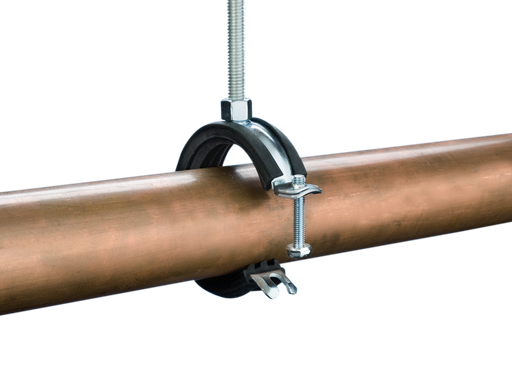

  • Recommended for the suspension of stationary non-insulated pipe lines
  • Easy-to-close clamp for steel pipe and copper tube
  • Unique hinged design eliminates the need to disassemble the clamp prior to installation

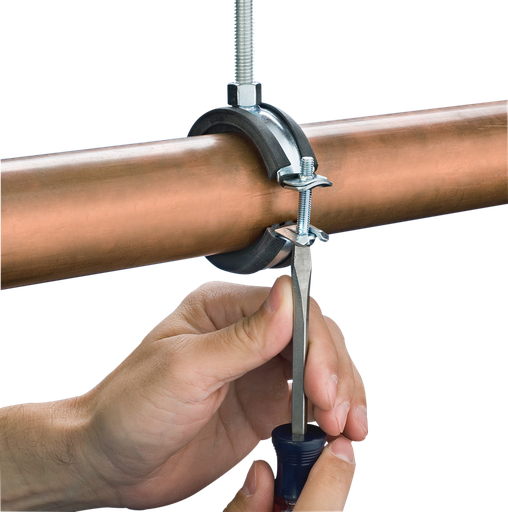

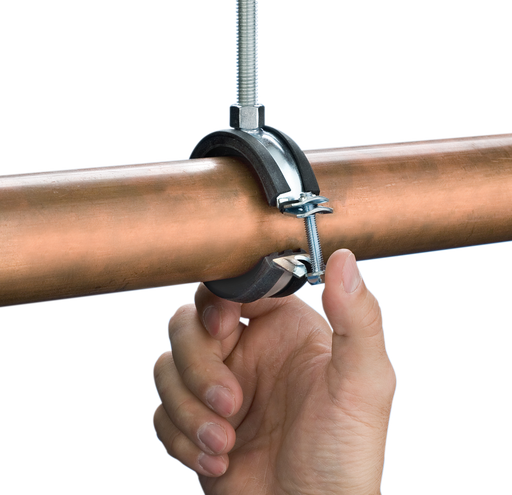

  • Clamp can be closed with one hand, without ever turning a screw
  • All-steel design of the closing mechanism retains strength even when exposed to heat
  • Comes with a welded 3/8\" cap nut, allowing easy attachment to threaded rod
  • Combo head bolt works with slotted, hex, or Phillips drivers
  • Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 12)
  • Category II noise reduction according to DIN EN ISO 3822-1
  • Compliant for sound insulation design according to DIN 4109
  • Reaction-to-fire classification is \"E\" in compliance with DIN EN 13501-1
