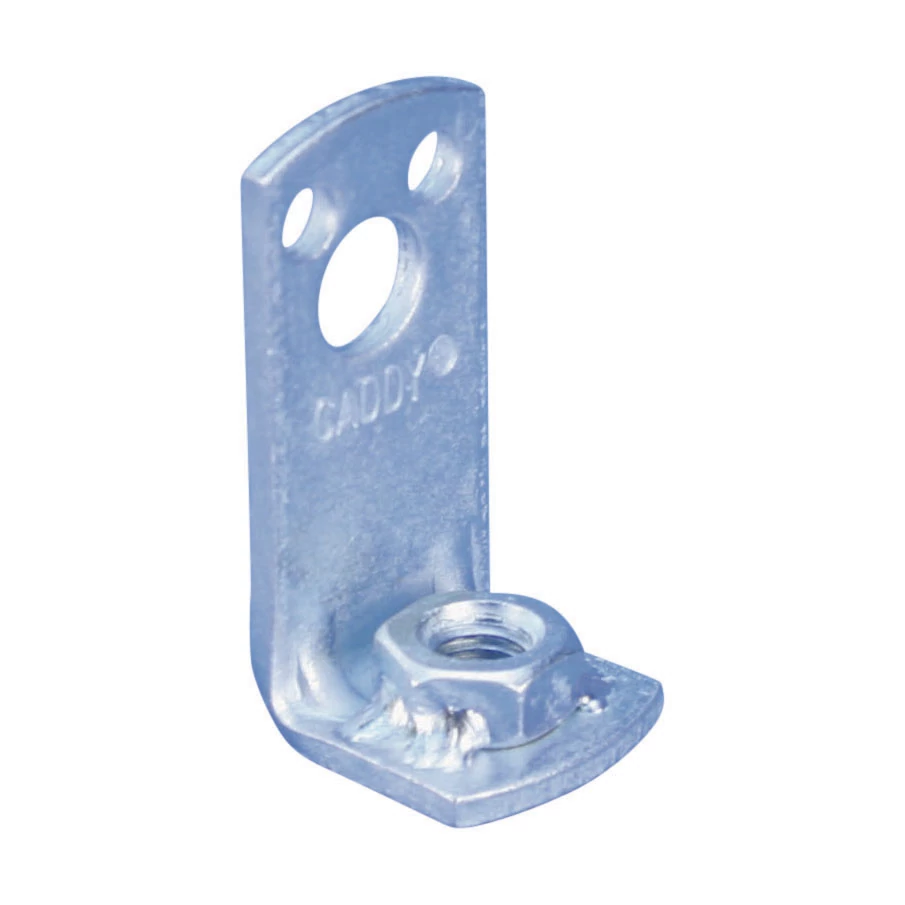

Product image for Caddy 3290037EG 329 Side Beam Attachment, 3/8" Rod
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Caddy 3290037EG 329 Side Beam Attachment, 3/8" Rod

Manufacturer: Cadweld | Catalog # 3290037EG | North Coast Part # 2406854
$915.40/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
329 Side Beam Attachment, 3/8" Rod

Technical Information

Applications
Fire Sprinkler; HVAC, Plumbing and Refrigeration
Material
Steel
Standard
CUL,FM,UL
Type
329 Side Beam Attachment

Packaging

Standard Packaging Qty
100 pc

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856791799
Finish
Electro Galvanized
GTiN
00782856791799
Product UPC
78285679179
Weight
0.06 kg

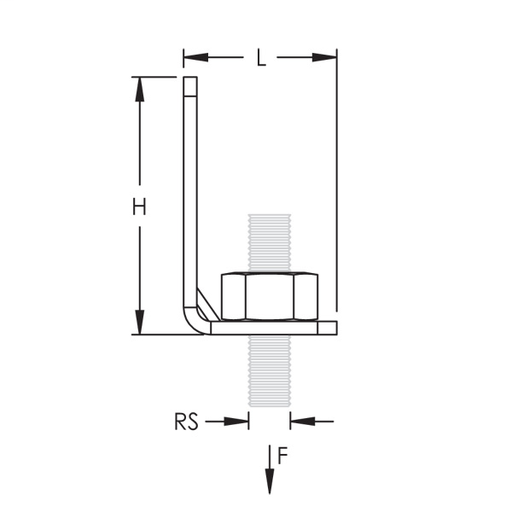

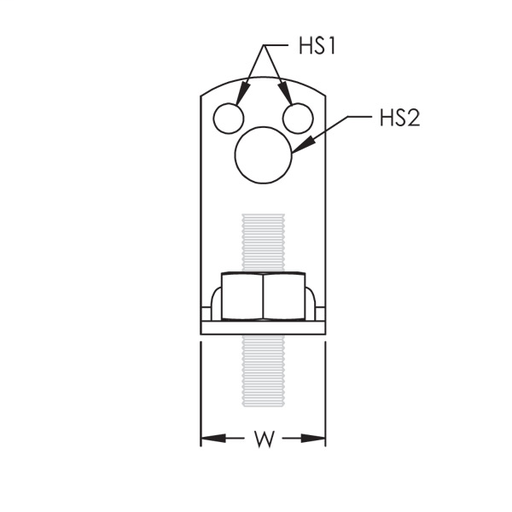

Dimensions

Height
2.31 Inch
Hole Size
0.276 in
Length
1.1 Inch
Width
1.102 in

Certifications and Compliance

Certifications
CULus,FM
Certifications
  • UL ANSI/UL 203
  • cUL ULC/ORD-C203
  • FM Approved, Pipe Hanger Components FM 1951, 1952, 1953 (December 2016)
Features
  • Supports pipe from wood, concrete or steel structures
  • Installs on vertical mounting surface
  • Pre-threaded captive nut allows for easy adjustment
  • Eliminates the need for additional hardware
  • Complies with VdS® CEA 4001 (Guidelines for Sprinkler Systems) Chapter 15.2.3 and shall be installed in accordance with VdS CEA 4001
  • Conforms with Federal Specification WW-H-171 (Type 35), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 34)
