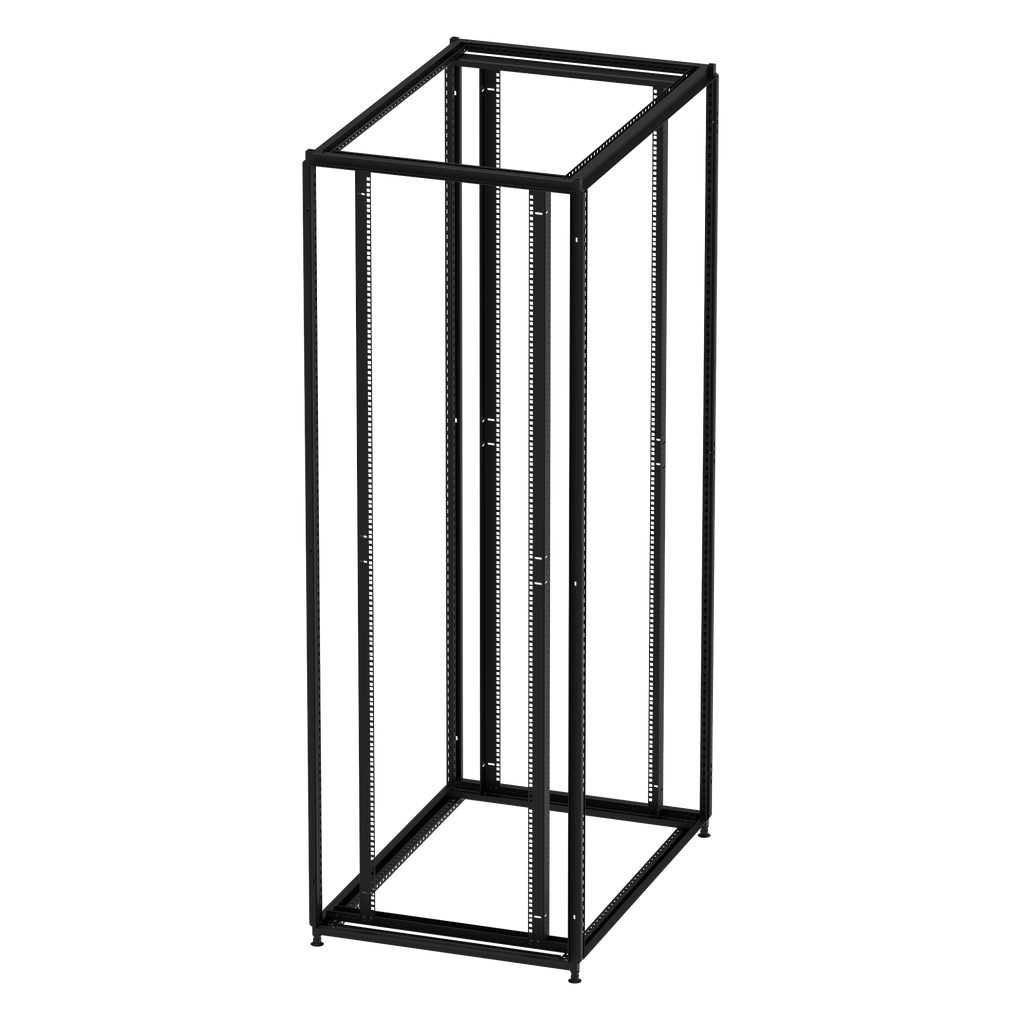

Product image for NVENT HOF PS1F21612B PRLN FRM 2150x
Email

NVENT HOF PS1F21612B PRLN FRM 2150x

Manufacturer: nVent Hoffman | Catalog # PS1F21612B | North Coast Part # 2407003
$1,784.38/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ProLine S1 Frame Packages are an economical rack solution for multi-tenant data center deployments. This ProLine S1 Frame Package, PS1F21612B item measures 85.03x23.58x46.76 inches with a material of Mild Steel colored Jet Black.

Technical Information

Color Coding
RAL 9005
Material
Steel

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510573874
Color
Black
Finish
Powder Coated
GTiN
00783510573874
Product UPC
78351057387
Weight
109 lb

Dimensions

Depth
46.76 Inch
Height
47 Inch
Length
85 Inch
Thickness
2.66 mm
Width
23.50 in
Features
  • Combination foot and adjustable leveler in each cabinet corner
  • Two sets of L-Shaped, heavy gauge Rack Angles with rack unit markings are furnished tapped holes (10-32) on one side and square holes (.375 in. x .375 in.) on the other side
  • Rack angles are fully adjustable front to rear and easily converted to either the tapped or square hole configuration; use square holes for server cabinets and tapped holes for communication cabinets
  • Rack angles come centered in all cabinet for 19-in. rack spacing; in 700mm and 800m wide cabinets they can be adjusted to 23-in. rack spacing, and either centered or biased to one side for use with one or two vertical cable manager accessories (23-in. can only be biased in 800mm wide cabinets)
  • Open base for easy cable entrance
  • Compatible with all ProLine S1 accessories. See ProLine S1 Cabinet spec sheet for additional details
  • 12 gauge cold rolled multi-formed welded steel frame construction
  • Leveler is made of 12mm threaded steel, adjusting nut and composite foot
  • LOAD RATING - Static (cabinet positioned in place and loaded with equipment) per UL 2416 test: 3000 lbs.
  • DYNAMIC RATING*- Caster: Light Duty - 900 lbs.; Heavy Duty - 3000 lbs; order caster kits separately.
  • Dynamic Ship Rating: 1000 lbs. per ASTM D4169-14 (Distribution Testing) and ASTM D4728 (Vibration Testing)
