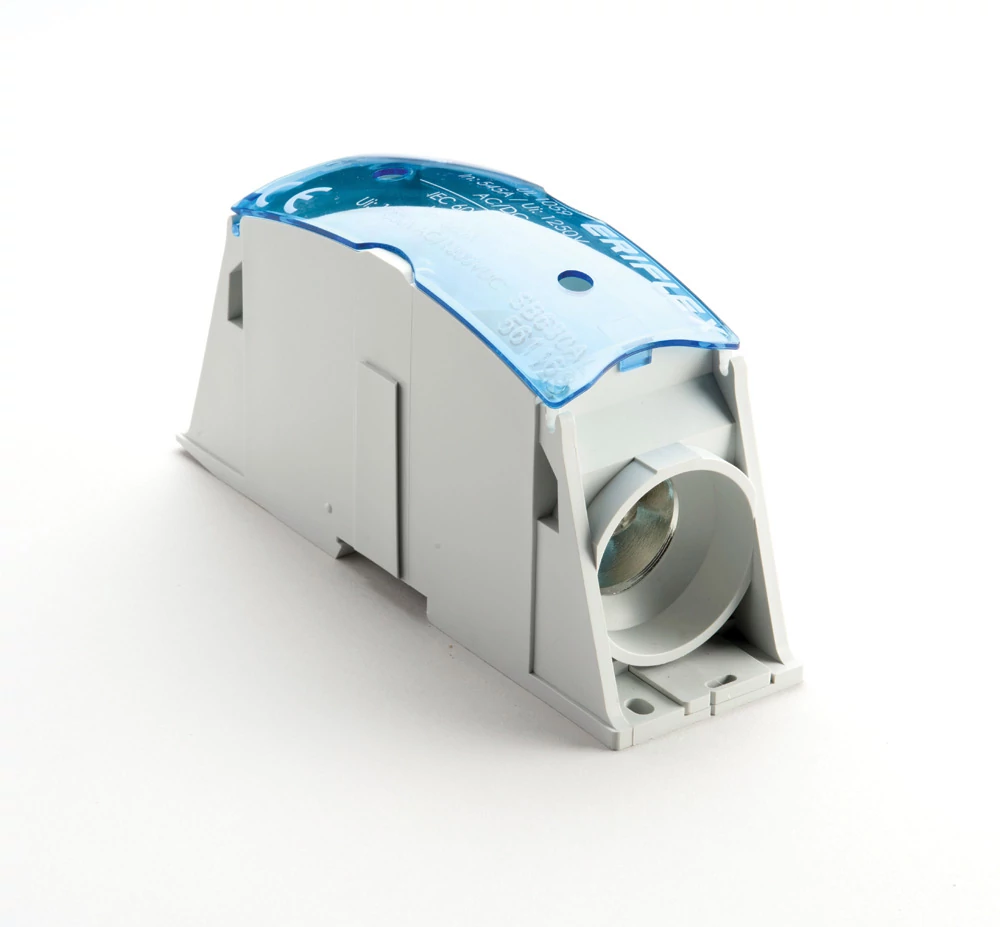

NVENT EFS 561168 Power Block SB630A

Manufacturer: Eriflex | Catalog # 561168 | North Coast Part # 2407108
$248.08/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment. Power Block SB630AL, Aluminum.

Technical Information

Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Enclosure Rating
IP20
Material
Aluminum
Number of Poles
1 Pole
Type
Cable-Cable

Manufacturer Information

Brand
nVent Erico
Sub Brand
Eriflex®

General Product Info

12-Digit UPC
782856912743
Finish
Tin Plated
GTiN
00782856912743
Product UPC
78285691274

Dimensions

Depth
89.4-89.4
Height
6.87-6.87
Width
54.2-54.2
Features

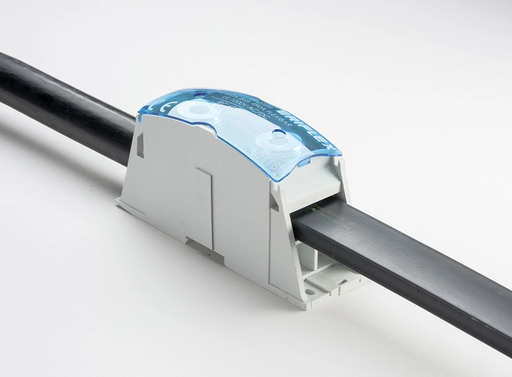

  • Can be connected with round cross section cable or flat connection system like nVent ERIFLEX Flexibar Advanced or IBSB Advanced Insulated Braided Conductor
  • Compact power block with high short circuit current rating
  • Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
  • Screw retaining cover is hinged and removable
  • Design allows for visual inspection of conductor and confirmation of connection

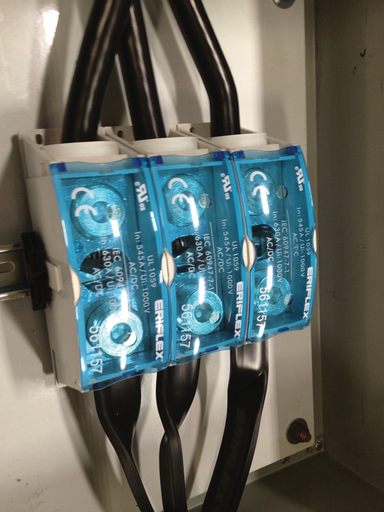

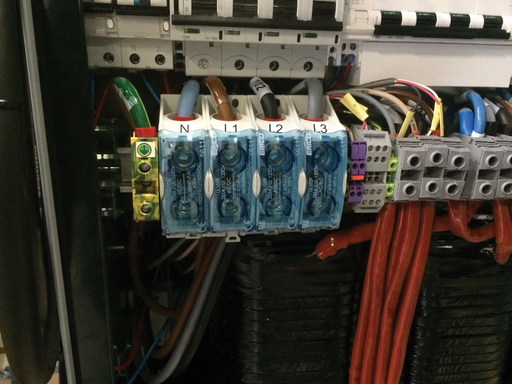

  • Modular snap-together blocks for building multi-pole power blocks
  • Easily clips onto DIN rail or mounts to panel with screws
  • Voltage detection and measurement connection
  • 95% fill ratio
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free plastic housing excluding the blue protection cover
Certifications
  • CE, ERIFLEX SB EN 60947-7-1
  • cUR CSA C22.2 No. 158
  • UR ANSI/UL 1059
  • EN 45545 EN 45545-2:2013
  • UKCA, ERIFLEX SB EN 60947-7-1
