Lithonia TWX2-LED-ALO-50K-MVOLT-PE-DDBTXD LED Wall Pack 54W, Adjustable Lumens 1450-6950, 5000K

Manufacturer: Lithonia Lighting | Catalog # TWX2 LED ALO 50K MVOLT PE DDBTXD | North Coast Part # 2407306
$344.00/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

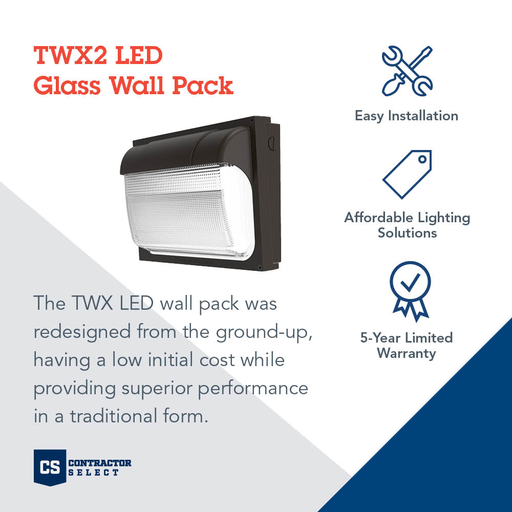

TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX2 LED ALO luminaires can replace anything from a 70W to 250W metal halide luminaire.

Technical Information

Applications
Automotive & Parking,Bridges & Tunnels,Education,Government,House Of Worship,Offices & Banks,Parking Garage,Roadways,Sports And Recreation,Transportation,Warehouses
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
Clear
Lens Material
Glass
Lumens
6,500 Lumen Lumen
Material
Aluminum
Mounting Type
Surface
Power Source
Hardwired
Style
Traditional
Type
Wallpack
Voltage
120 Volt
Wattage
54 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
00194994620501
Color
Bronze
Environmental Conditions
Outdoor
Finish
Textured
GTiN
00194994620501
Product UPC
19499462050
Shape
Rectangle
Weight
11 lb

Dimensions

Height
13 Inch
Length
9 Inch
Width
4.5 in
Applications
  • Automotive & Parking
  • Education
  • Government
  • House of Worship
  • Offices & Banks
  • Parking Garage
  • Roadways
  • Bridges & Tunnels
  • Sports and Recreation
  • Transportation
  • Warehouses
Features
  • Adjustable light output maximizes flexibility in the field
  • The TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire
  • Hardwired on/off capability only
  • CSA certified to US and Canadian standards, listed as a DesignLights Consortium® (DLC) qualified product and IP65 rated for outdoor applications
  • MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box or back wiring can be connected and stored in the internal compartment
  • Light engine(s) configurations consist of high-efficacy LEDs where the advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
  • Exterior painted parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
  • No emergency battery back-up available in this version
  • Five-year limited warranty
  • 4.5 in x 9 in x 13 in
Standards
  • CSADLC Standard
